Slide Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Contact Timing | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Actuator Length | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1825032-4SWITCH SLIDE DPDT 0.4VA 20V |
1,706 | - |
|
Datasheet | SE | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 3.50mm | Copper Alloy | Gold | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof |
|

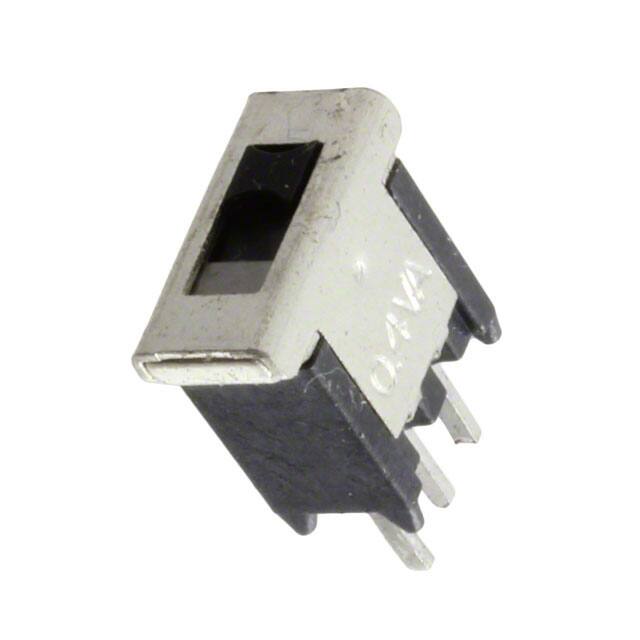

1571982-3SWITCH SLIDE SPDT 0.4VA 20V |
2,810 | - |
|
Datasheet | TSS | Bulk | Active | SPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Flush | Flush | Copper | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
2-1825011-7SWITCH SLIDE 4PDT 300MA 115V |
3,931 | - |
|
Datasheet | ASF | Tube | Active | 4PDT | Shorting (MBB) | On-On | 300mA (AC) | 115 V | - | Screwdriver Slot | Flush | Copper Alloy | Silver | Surface Mount | Gull Wing | Tape Seal |
|
|
2-1825010-2SWITCH SLIDE 4PDT 300MA 115V |
2,535 | - |
|
Datasheet | ASE | Tube | Active | 4PDT | Shorting (MBB) | On-On | 300mA (AC) | 115 V | - | Standard | 5.82mm | Copper Alloy | Silver | Surface Mount, Right Angle | Gull Wing | - |
|
|
ASE22GSWITCH SLIDE DPDT 0.4VA 20V |
1,217 | - |
|
Datasheet | ASE | Bulk | Active | DPDT | Shorting (MBB) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 2.79mm | Copper Alloy | Gold | Through Hole | PC Pin | - |
|
|
MSSA4450RGSWITCH SLIDE 4P4T 0.4VA 20V |
2,418 | - |
|
Datasheet | MSSA | Bulk | Obsolete | 4P4T | Shorting (MBB) | On-On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 9.02mm | Copper Alloy | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
ASE22SWITCH SLIDE DPDT 300MA 115V |
3,815 | - |
|
Datasheet | ASE | Bulk | Active | DPDT | Shorting (MBB) | On-On | 300mA (AC) | 115 V | - | Standard | 2.79mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
MSSA1450SWITCH SLIDE SP4T 300MA 125V |
2,873 | - |
|
Datasheet | MSSA | Bulk | Obsolete | SP4T | Shorting (MBB) | On-On-On-On | 300mA (AC) | 125 V | - | Standard | 10.41mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
ASF22SWITCH SLIDE DPDT 300MA 115V |
3,166 | - |
|
Datasheet | ASF | Tube | Active | DPDT | Shorting (MBB) | On-On | 300mA (AC) | 115 V | - | Screwdriver Slot | Flush | Copper Alloy | Silver | Through Hole | PC Pin | Tape Seal |
|
|
6-1825011-4SWITCH SLIDE 6PDT 0.4VA 20V |
3,669 | - |
|
Datasheet | ASF | Tube | Active | 6PDT | Shorting (MBB) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Screwdriver Slot | Flush | Copper Alloy | Gold | Through Hole, Right Angle | PC Pin | - |
