Slide Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Contact Timing | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Actuator Length | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GH39S010001SWITCH SLIDE SPDT 3A 30V |
1,041 | - |
|
Datasheet | G | Bulk | Active | SPDT | Not Specified | On-Off-On | 3A (DC) | - | 30 V | Standard | 5.10mm | Silver (Ag) | - | Panel Mount | Solder Lug | Epoxy Sealed Terminals |
|
25346NA6SWITCH SLIDE DPDT 4A 125V |
4,027 | - |
|
Datasheet | 25000N | Bulk | Active | DPDT | Not Specified | On-On | 4A (AC), 1A (DC) | 125 V | 30 V | Standard | 6.00mm | Silver (Ag) | - | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
NK236WSWITCH SLIDE SPDT 500MA 12V |
3,429 | - |
|
Datasheet | NK | Bulk | Active | SPDT | Not Specified | On-On | 500mA (DC) | - | 12 V | Flush | - | Nickel | Gold | Through Hole, Right Angle | PC Pin | Sealed - Flux Protection |
|
GH39WW00001SWITCH SLIDE SPDT 0.4VA 20V |
3,865 | - |
|
Datasheet | G | Bulk | Active | SPDT | Not Specified | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 4.70mm | Brass | Gold | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|

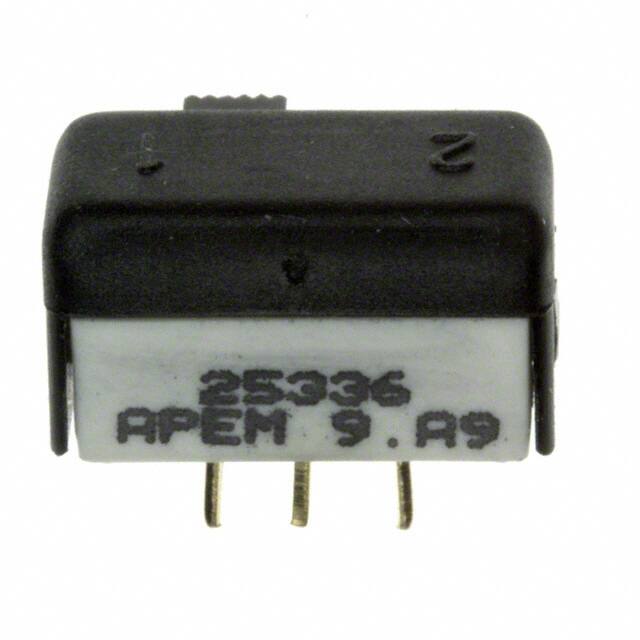

25336NLDSWITCH SLIDE SPDT 100MA 30V |
4,393 | - |
|
Datasheet | 25000N | Bulk | Active | SPDT | Not Specified | On-On | 100mA (DC) | - | 30 V | Standard | 2.30mm | Brass | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
GH39W000001SWITCH SLIDE SPDT 0.4VA 20V |
3,465 | - |
|
Datasheet | G | Bulk | Active | SPDT | Not Specified | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 4.70mm | Brass | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
GH46W000001SWITCH SLIDE DPDT 0.4VA 20V |
1,885 | - |
|
Datasheet | G | Bulk | Active | DPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 4.70mm | Brass | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
GH49S010001SWITCH SLIDE DPDT 3A 30V |
3,381 | - |
|
Datasheet | G | Bulk | Active | DPDT | Not Specified | On-Off-On | 3A (DC) | - | 30 V | Standard | 5.10mm | Silver (Ag) | - | Panel Mount | Solder Lug | Epoxy Sealed Terminals |
|
|
MRC12RTRSWITCH SLIDE SPDT 300MA 4V |
0 |
4000+：$0.26790 |
|
Datasheet | MRC | Tape & Reel (TR) | Obsolete | SPDT | Not Specified | On-On | 300mA (DC) | - | 4 V | Standard | 1.50mm | Phosphor Bronze | Silver | Surface Mount, Right Angle | Gull Wing | - |
|
|
MHSS1105ASWITCH SLIDE SPDT 300MA 6V |
1,204 | - |
|
Datasheet | MHSS | Bulk | Active | SPDT | Not Specified | On-On | 300mA (DC) | - | 6 V | Standard | 4.40mm | - | Silver | Through Hole, Right Angle | PC Pin | Black Actuator |
