Slide Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Contact Timing | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Actuator Length | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

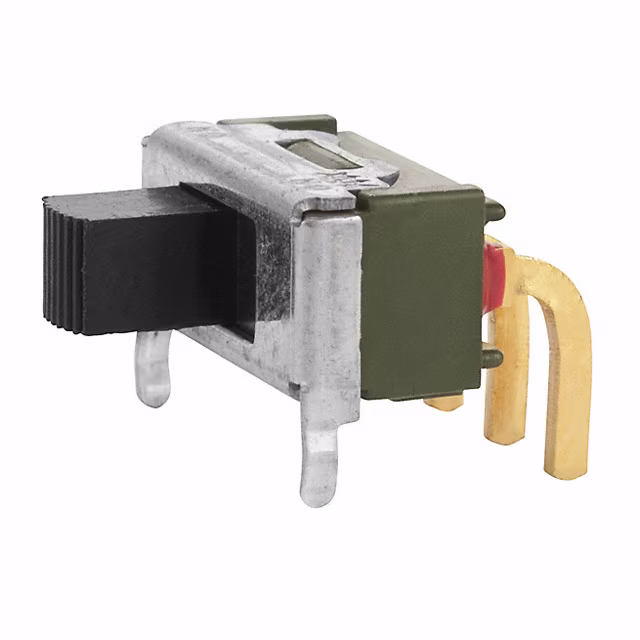

MS12ASA30SWITCH SLIDE SPDT 6A 125V |
2,985 | - |
|
Datasheet | MS | Tray | Obsolete | SPDT | Non-Shorting (BBM) | On-On | 6A (AC) | 125 V | - | Standard | 5.10mm | Silver Alloy | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
MS13ASW30SWITCH SLIDE SPDT 6A 125V |
3,972 | - |
|
Datasheet | MS | Tray | Obsolete | SPDT | Non-Shorting (BBM) | On-Off-On | 6A (AC) | 125 V | - | Standard | 5.10mm | Silver Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|

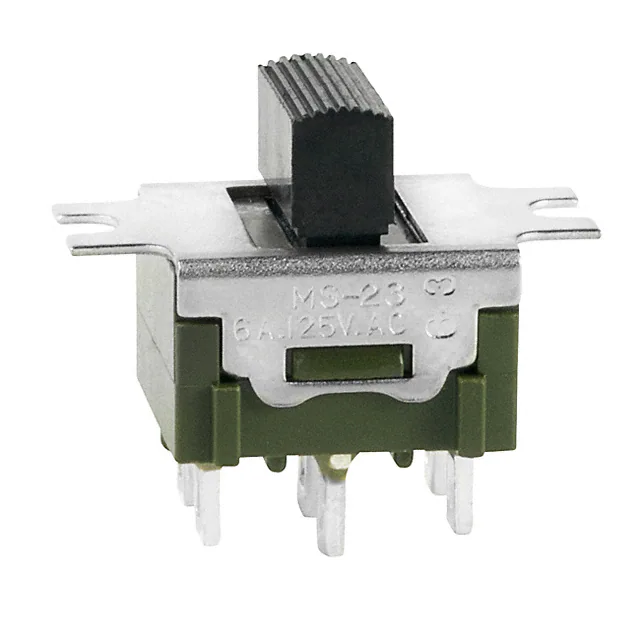

MS23BFW01SWITCH SLIDE DPDT 6A 125V |
4,358 | - |
|
Datasheet | MS | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | On-Off-On | 6A (AC) | 125 V | - | Standard | 5.10mm | Silver Alloy | Silver | Panel Mount | Solder Lug | Epoxy Sealed Terminals |
|
1-1825010-4SWITCH SLIDE 4PDT 0.4VA 20V |
1,903 | - |
|
Datasheet | ASE | Bulk | Active | 4PDT | Shorting (MBB) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 2.79mm | Copper Alloy | Gold | Through Hole | PC Pin | - |
|
AS23CPSWITCH SLIDE DPDT 0.4VA 28V |
4,600 | - |
|
Datasheet | AS | Tray | Active | DPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 3.80mm | Phosphor Bronze | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
AS23CWSWITCH SLIDE DPDT 0.4VA 28V |
4,294 | - |
|
Datasheet | AS | Bulk | Active | DPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 3.80mm | Phosphor Bronze | Gold | Through Hole | Wire Wrap | Epoxy Sealed Terminals |
|
|
AS23BWSWITCH SLIDE DPDT 0.4VA 28V |
2,669 | - |
|
Datasheet | AS | Bulk | Active | DPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Flush | Flush | Phosphor Bronze | Gold | Through Hole | Wire Wrap | Epoxy Sealed Terminals |
|

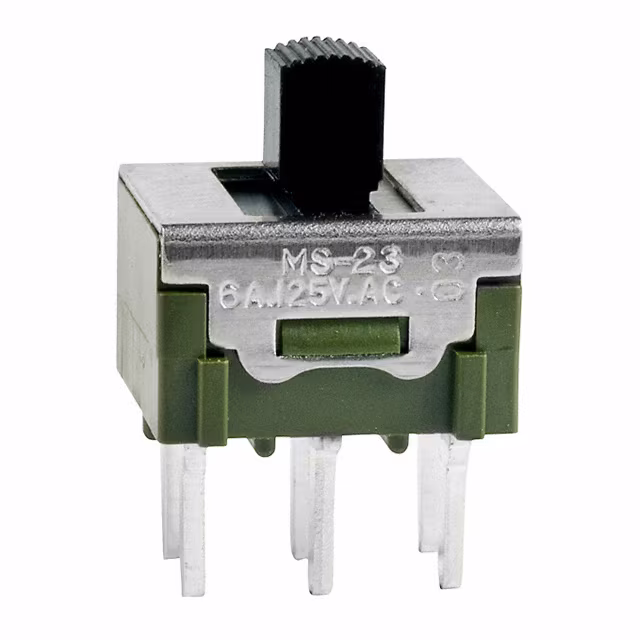

MS23ANW03SWITCH SLIDE DPDT 6A 125V |
3,619 | - |
|
Datasheet | MS | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | On-Off-On | 6A (AC) | 125 V | - | Standard | 5.10mm | Silver Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
TS02CQESWITCH SLIDE SPST 1A 120V |
2,524 | - |
|
Datasheet | TS | Bulk | Active | SPST | Not Specified | On-Off | 1A (AC/DC) | 120 V | 28 V | Standard | 3.10mm | Silver (Ag) | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
GH39W000001SWITCH SLIDE SPDT 0.4VA 20V |
3,465 | - |
|
Datasheet | G | Bulk | Active | SPDT | Not Specified | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 4.70mm | Brass | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
ES03MCBESWITCH SLIDE SPDT 0.4VA 20V |
2,880 | - |
|
Datasheet | ES | Tray | Active | SPDT | Not Specified | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 3.07mm | Bronze | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals, IP57 |
|

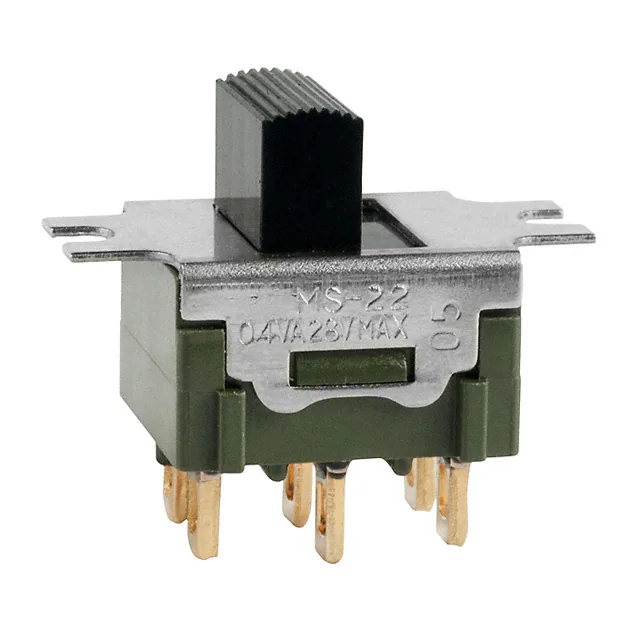

MS22BFG01SWITCH SLIDE DPDT 0.4VA 28V |
4,316 | - |
|
Datasheet | MS | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 5.10mm | Copper | Gold | Panel Mount | Solder Lug | Epoxy Sealed Terminals |
|

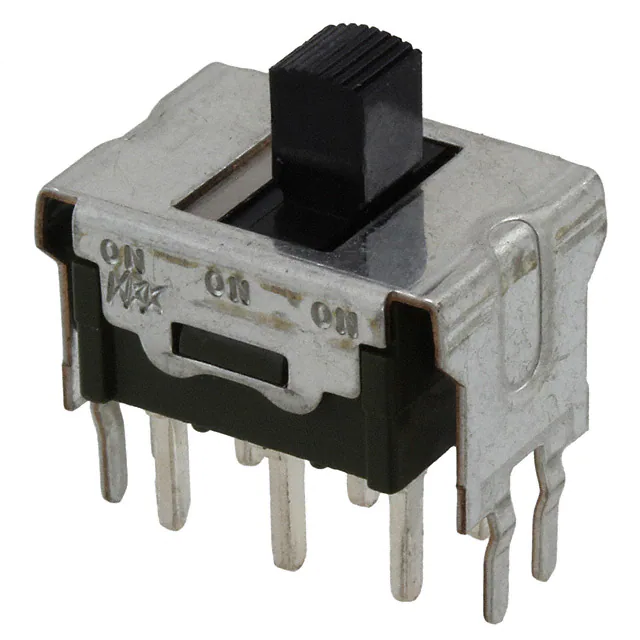

MS20ASW13SWITCH SLIDE SP3T 6A 125V |
2,189 | - |
|
Datasheet | MS | Tray | Obsolete | SP3T | Non-Shorting (BBM) | On-On-On | 6A (AC) | 125 V | - | Standard | 5.10mm | Silver Alloy | Silver | Through Hole | PC Pin | Jumper needed to achieve triple throw |
|
AS23BHSWITCH SLIDE DPDT 0.4VA 28V |
3,782 | - |
|
Datasheet | AS | Tray | Active | DPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Flush | Flush | Phosphor Bronze | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
ASE62SWITCH SLIDE 6PDT 300MA 115V |
4,994 | - |
|
Datasheet | ASE | Bulk | Obsolete | 6PDT | Shorting (MBB) | On-On | 300mA (AC) | 115 V | - | Standard | 2.79mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
|
AS24CPSWITCH SLIDE SP3T 0.4VA 28V |
1,404 | - |
|
Datasheet | AS | Tray | Active | SP3T | Non-Shorting (BBM) | On-On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 3.80mm | Phosphor Bronze | Gold | Through Hole | PC Pin | Jumper needed to achieve triple throw |
|

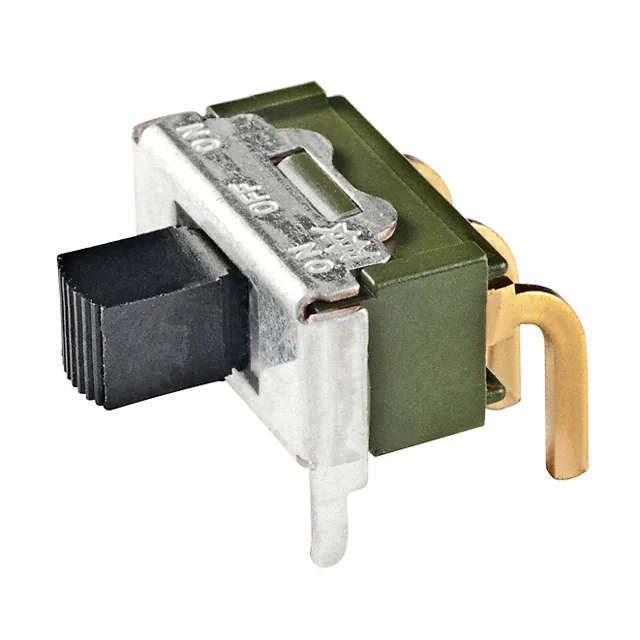

MS13ASG30SWITCH SLIDE SPDT 0.4VA 28V |
4,953 | - |
|
Datasheet | MS | Tray | Obsolete | SPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 5.10mm | Copper | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
V80212SS05QESWITCH SLIDE DPDT 10A 125V |
1,313 | - |
|
Datasheet | V | Tray | Active | DPDT | Not Specified | On-On (Line Voltage Selector) | 10A (AC), 4A (DC) | 125 V | 30 V | Screwdriver Slot | Flush | Copper | Silver | Panel Mount | Quick Connect - 0.110" (2.8mm) | 115V-230V Marking, Epoxy Sealed Terminals |
|

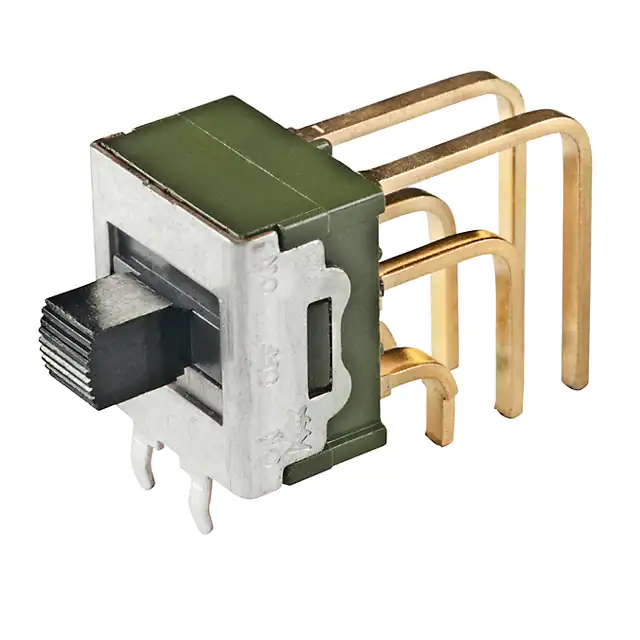

MS23ASG30SWITCH SLIDE DPDT 0.4VA 28V |
1,063 | - |
|
Datasheet | MS | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 5.10mm | Copper | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
MS23BNW03/UCSWITCH SLIDE DPDT 6A 125V |
3,040 | - |
|
Datasheet | MS | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | On-Off-On | 6A (AC) | 125 V | - | Standard | 5.10mm | Silver Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
