Solid State Relays (SSR)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Output Type | Voltage - Input | Voltage - Load | Load Current | On-State Resistance (Max) | Termination Style | Operating Temperature | Supplier Device Package | Approval Agency | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2905293SSR RELAY SPST-NO 3A 3-33V |
215 | - |
|
Datasheet | RIF | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 24VDC | 3 V ~ 33 V | 3 A | - | Spring Terminal | -25°C ~ 60°C | - | DNV, EAC | - | - |
|
2966634SSR RELAY SPST-NO 3A 3-33V |
463 | - |
|
Datasheet | PLC-OSC | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 24VDC | 3 V ~ 33 V | 3 A | - | Screw Terminal | -20°C ~ 60°C | - | EN, IEC | - | - |
|

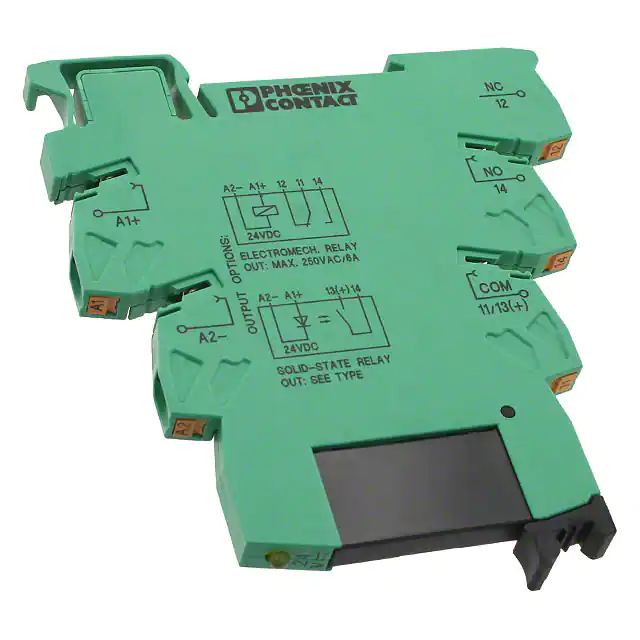

2900364SSR RELAY SPST-NO 3A 3-33V |
755 | - |
|
Datasheet | PLC-OPT | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 24VDC | 3 V ~ 33 V | 3 A | - | Spring Terminal | -25°C ~ 60°C | - | CE, DNV, UKCA | - | - |
|
2967989SSR RELAY SPST-NO 3A 3-33V |
117 | - |
|
Datasheet | OPT | Tube | Active | Socketable | SPST-NO (1 Form A) | DC | 5VDC | 3 V ~ 33 V | 3 A | - | Plug In | -25°C ~ 60°C | - | cURus, GL | - | - |
|
|
2980144SSR RELAY SPST-NO 3A 3-33V |
228 | - |
|
Datasheet | PLC-OSC | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 5VDC | 3 V ~ 33 V | 3 A | - | Screw Terminal | -20°C ~ 60°C | - | EN, IEC | - | - |
|

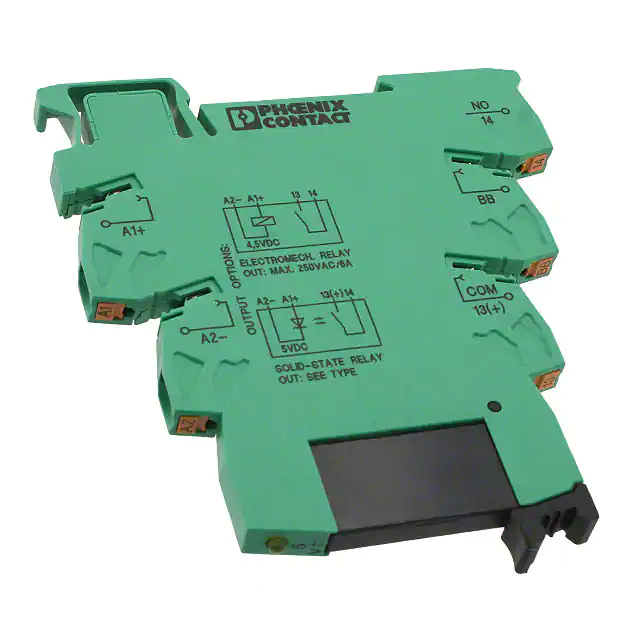

2900375SSR RELAY SPST-NO 3A 3-33V |
143 | - |
|
Datasheet | PLC-OPT | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 5VDC | 3 V ~ 33 V | 3 A | - | Spring Terminal | -25°C ~ 60°C | - | CE, DNV, UKCA | - | - |
|

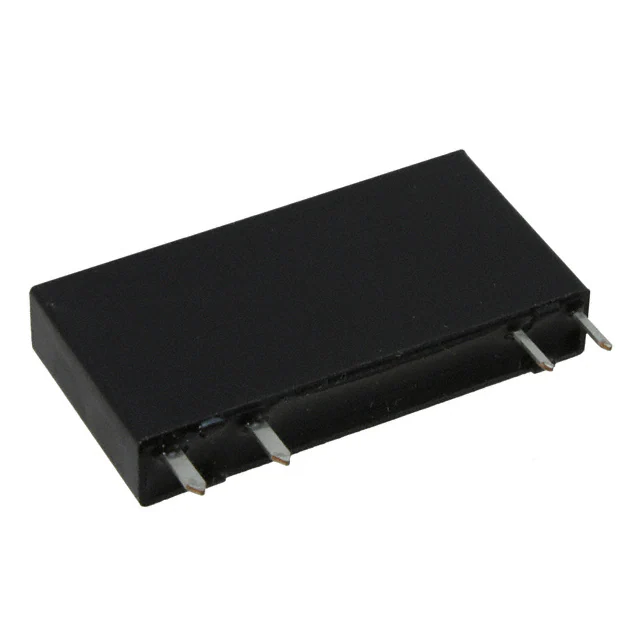

2966595SSR RELAY SPST-NO 3A 3-33V |
200 | - |
|
Datasheet | OPT | Bulk | Active | Socketable | SPST-NO (1 Form A) | DC | 24VDC | 3 V ~ 33 V | 3 A | - | Plug In | -25°C ~ 60°C | - | cURus, GL | - | - |
|
2905215SSR RELAY SPST-NO 10A 24-253V |
171 |
1+：$70.48800 |
|
Datasheet | PLC-HPT | Bulk | Active | DIN Rail | SPST-NO (1 Form A), Hybrid | AC | 24VDC | 24 V ~ 253 V | 10 A | - | Spring Terminal | -25°C ~ 60°C | - | EN, IEC | - | - |
|
2982702SSR RELAY SPST-NO 10A 5-33V |
328 | - |
|
Datasheet | PLC-OSC | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 24VDC | 5 V ~ 33 V | 10 A | - | Screw Terminal | -20°C ~ 60°C | - | EN, IEC | - | - |
|

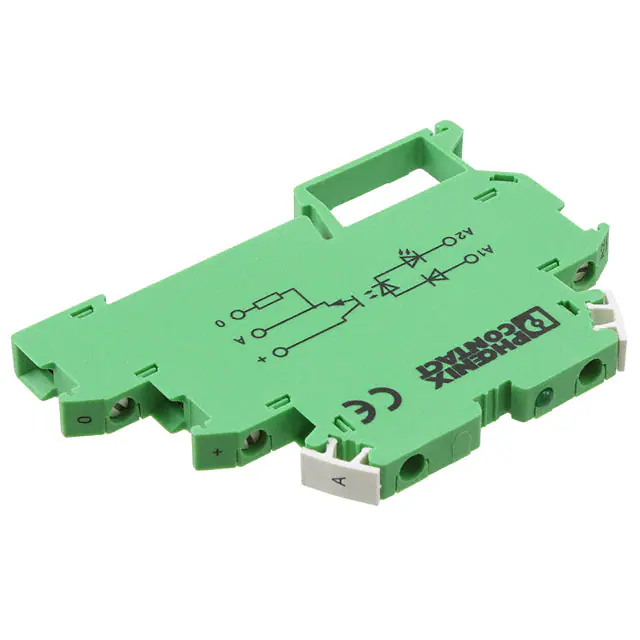

2940223SSR RELAY SPST-NO 100MA 3-48V |
138 | - |
|
Datasheet | DEK-OE | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 5VDC | 3 V ~ 48 V | 100 mA | - | Screw Terminal | -20°C ~ 60°C | - | cULus, EAC, UR | - | - |
