Speakers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMS-305-158SP-67SPEAKER 8OHM 1.5W TOP PORT 90DB |
258 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 440 Hz ~ 10 kHz | 550Hz | 8 Ohms | 90.00 | 100mW/100mm | Sound Pressure Level (SPL) | 1.5 W | 2 W | Top | Round | Polyethylenimine (PEI) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 1.181" Dia (30.00mm) |
|
CMS-40558N-L152ASPEAKER 8OHM 500MW TOP PORT 90DB |
144 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 400 Hz ~ 6 kHz | 500Hz | 8 Ohms | 90.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads with Connector | 1.575" Dia (40.00mm) |
|

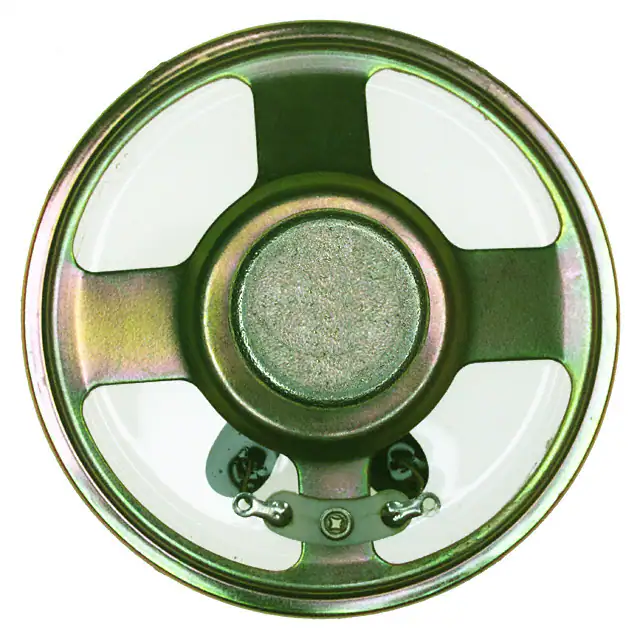

GA0501MSPEAKER 8OHM 250MW TOP PORT 85DB |
843 | - |
|
Datasheet | GA | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 7.8 kHz | 500Hz | 8 Ohms | 85.00 | 1W/500mm | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Alnico (AlNiCo) | - | - | Solder Eyelet(s) | 1.969" Dia (50.00mm) |
|

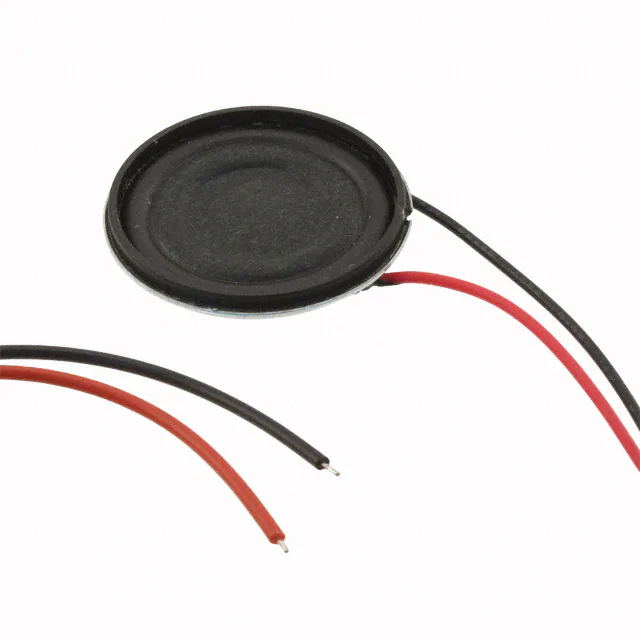

CLS0301SPEAKER 8OHM 1W TOP PORT 86DB |
158 | - |
|
Datasheet | CLS | Tray | Active | Magnetic | Low Profile | 550 Hz ~ 20 kHz | 550Hz | 8 Ohms | 86.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | Paper | Nd-Fe-B | - | - | Solder Pads | 1.181" Dia (30.00mm) |
|
CMS-18132-18SPSPEAKER 8OHM 1W TOP PORT 95DB |
164 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 400 Hz ~ 10 kHz | 500Hz | 8 Ohms | 95.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Solder Pads | 0.709" L x 0.512" W (18.00mm x 13.00mm) |
|
CDS-27204SPEAKER 4OHM 2W TOP PORT 93DB |
256 | - |
|
Datasheet | CDS | Box | Active | Magnetic | General Purpose | 680 Hz ~ 20 kHz | 850Hz | 4 Ohms | 93.00 | 1W/100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Rectangular | Cloth | Nd-Fe-B | - | - | Solder Pads | 1.063" L x 0.787" W (27.00mm x 20.00mm) |
|
|
CMS-23558N-L152ASPEAKER 8OHM 1W TOP PORT 80DB |
471 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 440 Hz ~ 20 kHz | 550Hz | 8 Ohms | 80.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads with Connector | 0.906" Dia (23.00mm) |
|
|
CMS-28588N-L152ASPEAKER 8OHM 2W TOP PORT 99DB |
290 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 440 Hz ~ 20 kHz | 550Hz | 8 Ohms | 99.00 | 1W/100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads with Connector | 1.102" Dia (28.00mm) |
|
CLS0231MP-1SPEAKER 8OHM 100MW TOP PORT 72DB |
7,165 | - |
|
Datasheet | CLS | Tray | Active | Magnetic | Low Profile | 384 Hz ~ 20 kHz | 480Hz | 8 Ohms | 72.00 | 100mW/500mm | Sound Pressure Level (SPL) | 100 mW | 200 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | PC Pins | 0.906" Dia (23.00mm) |
|
CLS0201MASPEAKER 8OHM 500MW TOP PORT 82DB |
660 | - |
|
Datasheet | CLS | Tray | Active | Magnetic | Low Profile | 850 Hz ~ 9 kHz | 850Hz | 8 Ohms | 82.00 | 500mW/500mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.787" Dia (20.00mm) |
