Speakers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EAS-3P128ASPEAKER 8OHM 300MW TOP PORT 80DB |
2,886 | - |
|
Datasheet | EAS | Bulk | Obsolete | Magnetic | General Purpose | 530 Hz ~ 4 kHz | 530Hz | 8 Ohms | 80.00 | 1mW | Sound Pressure Level (SPL) | 300 mW | - | Top | Round | - | - | - | - | Solder Pads | 1.417" Dia (36.00mm) |
|

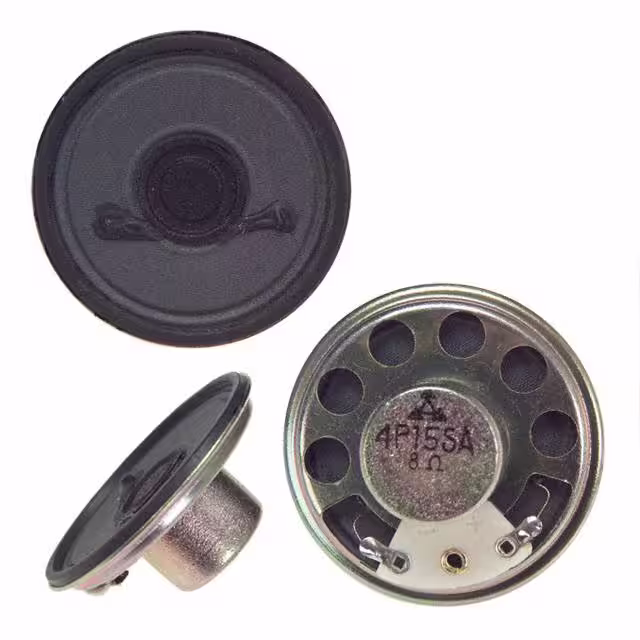

EAS-4P15SASPEAKER 8OHM 100MW TOP PORT 92DB |
3,059 | - |
|
Datasheet | EAS | Bulk | Obsolete | Magnetic | General Purpose | 530 Hz ~ 3 kHz | 530Hz | 8 Ohms | 92.00 | 1W/500mm | Sound Pressure Level (SPL) | 100 mW | - | Top | Round | - | - | - | - | Solder Pads | 1.772" Dia (45.00mm) |
|

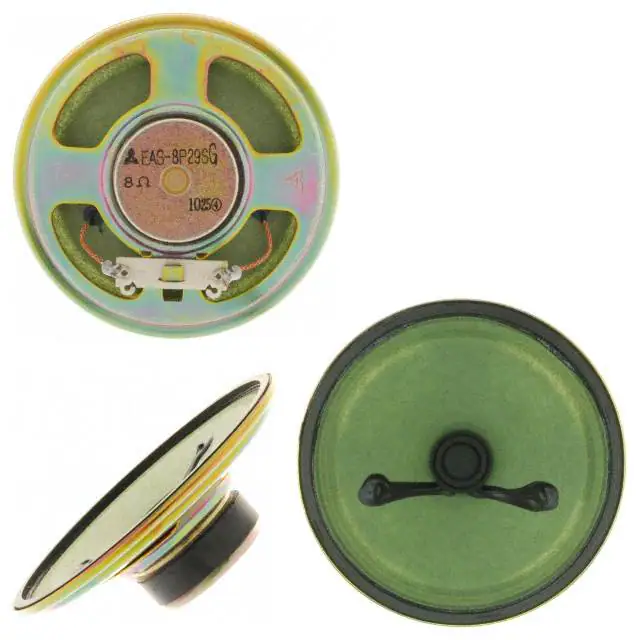

EAS-8P29SGSPEAKER 8OHM 630MW TOP PORT 93DB |
1,639 | - |
|
Datasheet | EAS | Bulk | Obsolete | Magnetic | General Purpose | 185 Hz ~ 4 kHz | - | 8 Ohms | 93.00 | 1W/500mm | Sound Pressure Level (SPL) | 630 mW | - | Top | Round | - | - | - | - | Solder Eyelet(s) | 3.031" Dia (77.00mm) |
|
|
EAS-45P30SSPEAKER 8OHM 100MW TOP PORT 93DB |
2,020 | - |
|
Datasheet | EAS | Bulk | Obsolete | Magnetic | General Purpose | 530 Hz ~ 3 kHz | 530Hz | 8 Ohms | 93.00 | 1W/500mm | Sound Pressure Level (SPL) | 100 mW | - | Top | Round | - | - | - | - | Solder Eyelet(s) | 1.772" Dia (45.00mm) |
|
|
EAS-5P13SSPEAKER 8OHM 160MW TOP PORT 93DB |
4,183 | - |
|
Datasheet | EAS | Bulk | Obsolete | Magnetic | General Purpose | 300 Hz ~ 350 Hz | - | 8 Ohms | 93.00 | 1W/500mm | Sound Pressure Level (SPL) | 160 mW | - | Top | Round | - | - | - | - | Solder Eyelet(s) | 1.969" Dia (50.00mm) |
|

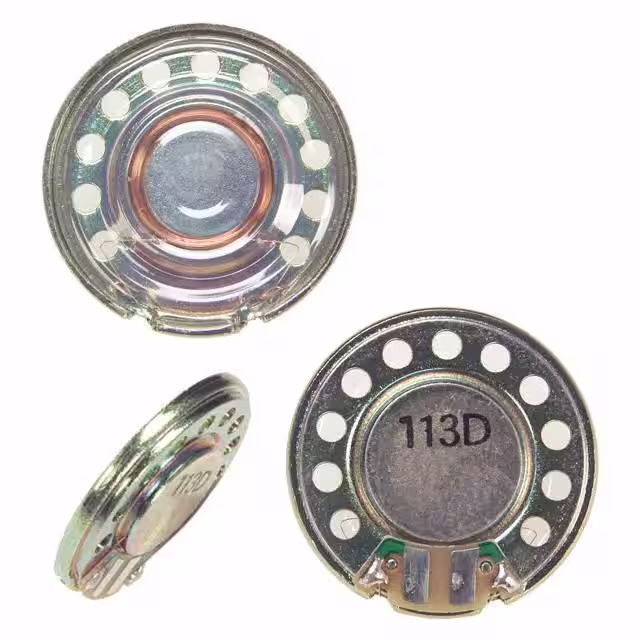

EAS-2P113DSPEAKER 7OHM 200MW TOP PORT 77DB |
1,854 | - |
|
Datasheet | EAS | Bulk | Obsolete | Magnetic | General Purpose | 740 Hz ~ 4 kHz | 740Hz | 7 Ohms | 77.00 | 1mW | Sound Pressure Level (SPL) | 200 mW | - | Top | Round | - | - | - | - | Solder Pads | 0.787" Dia (20.00mm) |
|
EAS-4D02C0SPEAKER 16OHM 1W TOP PORT 73DB |
3,724 | - |
|
Datasheet | EAS | Bulk | Obsolete | Magnetic | Full Range | - | - | 16 Ohms | 73.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | - | Top | Oval, Rectangular Frame | - | - | - | - | Solder Pads | 1.677" L x 1.224" W (42.60mm x 31.10mm) |
|

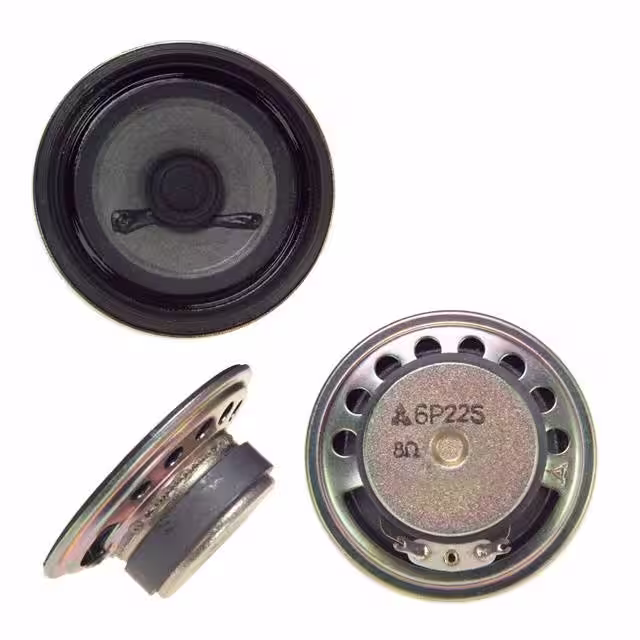

EAS-6P22SSPEAKER 8OHM 500MW 92DB ROUND |
4,056 | - |
|
Datasheet | EAS | Bulk | Obsolete | Magnetic | Full Range | - | - | 8 Ohms | 92.00 | 1W/500mm | Sound Pressure Level (SPL) | 500 mW | - | - | Round | - | - | - | - | Solder Eyelet(s) | 2.244" Dia (57.00mm) |
|
EAS-2P104HSPEAKER 8OHM 300MW TOP PORT 81DB |
4,111 | - |
|
Datasheet | EAS | Bulk | Obsolete | Magnetic | General Purpose | 670 Hz ~ 4 kHz | 670Hz | 8 Ohms | 81.00 | 1mW | Sound Pressure Level (SPL) | 300 mW | - | Top | Round | - | Nd-Fe-B | - | - | Solder Pads | 1.102" Dia (28.00mm) |
|

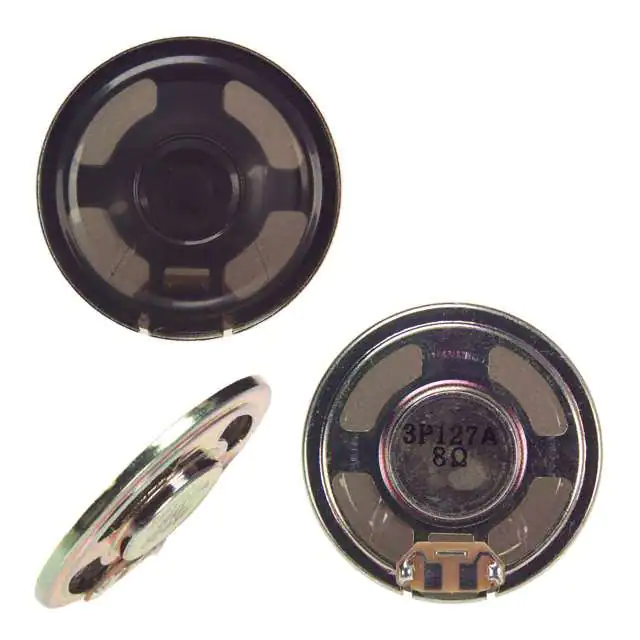

EAS-3P127ASPEAKER 8OHM 500MW TOP PORT 84DB |
0 | - |
|
Datasheet | EAS | Bulk | Obsolete | Magnetic | General Purpose | 550 Hz ~ 4 kHz | 550Hz | 8 Ohms | 84.00 | 1mW | Sound Pressure Level (SPL) | 500 mW | - | Top | Round | - | - | - | - | Solder Pads | 1.417" Dia (36.00mm) |
