Switch Kits
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Kit Type | Quantity | Current - Switching | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Circuit | Mounting Type | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KIT14-SWITCH ASSORTMENTKIT # 14 - SWITCH ASSORTMENT SAM |
1,122 | - |
|
Datasheet | - | Case | Active | DIP, Keylock, Pushbutton, Rocker, Slide, Tactile, Tilt, Toggle | 20 Pieces (20 Values - 1 Each) | 6A, 3A (AC); 5A, 0.4VA (AC/DC); 100mA, 50mA (DC) | 250V, 125V, 30V | - | Assorted | Assorted | Assorted Panel Mount and Through Hole | Gull Wing; PC Pin; Solder Lug |
|

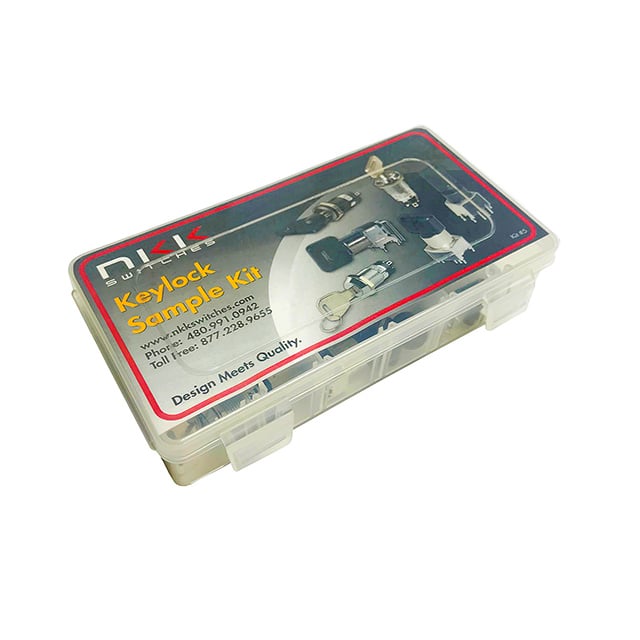

KIT05-KEYLOCKSKIT # 5 - KEYLOCK SWITCH SAMPLES |
2,872 | - |
|
Datasheet | - | Case | Active | Keylock | 8 Pieces (8 Values - 1 Each) | 3A (AC); 0.4VA (AC/DC) | 250V, 125V, 30V | - | Flat Key, Tubular Key | SP3T, SPDT | Assorted Panel Mount and Through Hole | PC Pin; Solder Lug |
|

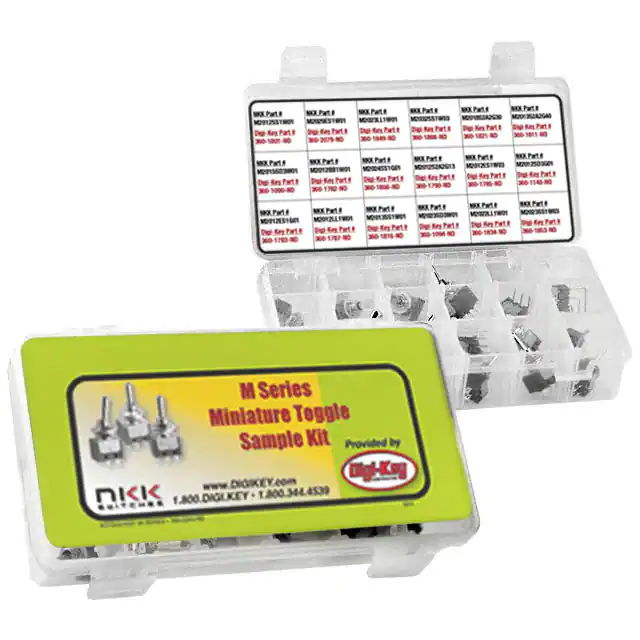

KIT-DIGI-KEY M SERIESM SERIES SAMPLE TOGGLE KIT |
3,178 | - |
|
Datasheet | M | Case | Active | Miniature Toggle | 18 Pieces (18 Values - 1 Each) | 6A, 0.4VA (AC); 4A, 3A, 0.4VA (DC) | 125V, 28V | 30V, 28V | Flatted, Locking Lever, Standard Round | Assorted | Assorted Panel Mount and Through Hole | PC Pin; Solder Lug |
|

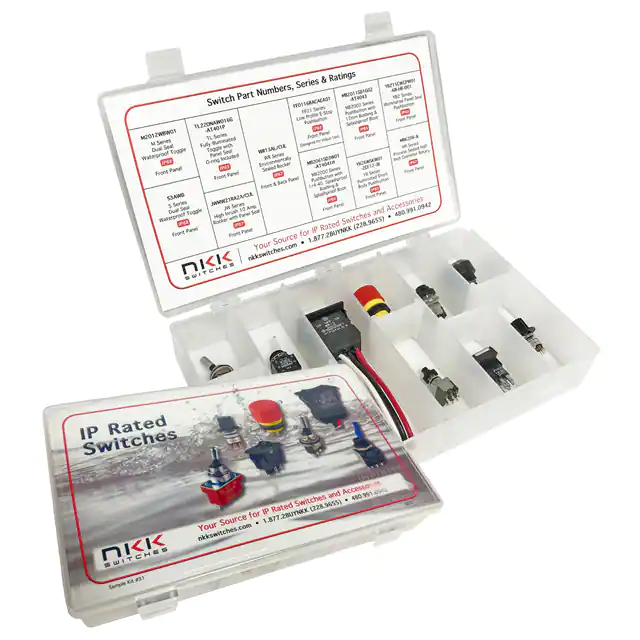

KIT31-IP RATED SWITCHESSAMPLE KIT#31 IP RATED SWITCHES |
2,857 | - |
|
Datasheet | - | Box | Active | Pushbutton, Illuminated, Pushbutton, Rocker, Rotary, Toggle, Illuminated, Toggle | 11 Pieces (11 Values - 1 Each) | 15A, 10A, 6A, 3A, 0.4VA (AC); 20A, 15A, 10A, 6A, 4A, 3A, 0.4VA (DC); 500mA (DC) | 125V, 28V | 30V, 28V, 24V, 12V | Assorted | Assorted | Assorted Panel Mount and Through Hole | PC Pin; Solder Lug; Solder, Quick Connect - 0.110" (2.8mm); Quick Connect - 0.062" (1.5mm); Wire Leads |
|

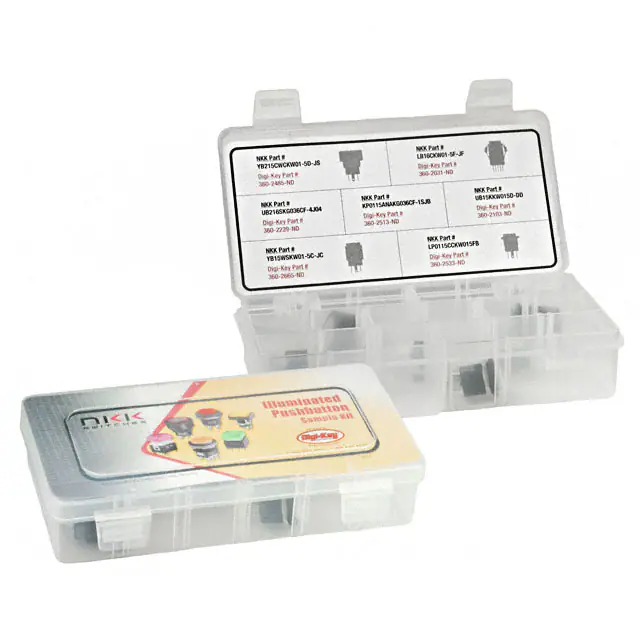

KIT-DIGI-KEY-ILLUMINATEDKIT PUSH SWITCH 7 PCS ILLUMINATE |
2,171 | - |
|
Datasheet | - | Case | Active | Pushbutton, Illuminated | 7 Pieces (7 Values - 1 Each) | 5A, 3A, 0.4VA (AC/DC); 100mA (DC) | 125V, 28V | 30V, 28V, 12V | Assorted Button | SPDT, SPST-NO | Panel Mount, Front; Panel Mount, Snap-In; Through Hole | PC Pin; Solder Lug; Solder, Quick Connect - 0.110" (2.8mm) |
|

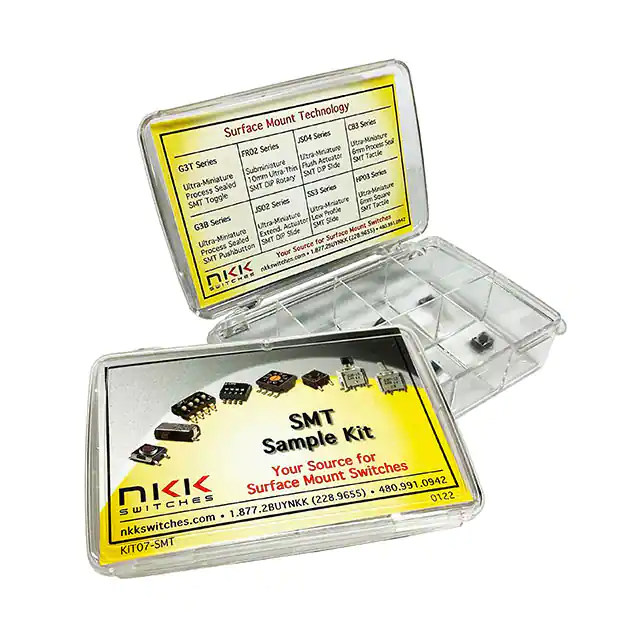

KIT07-SMTKIT 7, SURFACE MOUNT SAMPLE KIT |
3,103 | - |
|
Datasheet | - | Box | Active | Pushbutton, Rotary, Slide, Tactile, Toggle | 8 Pieces (8 Values - 1 Each) | - | - | - | - | - | Surface Mount | - |
|
KIT25-VALUE ADDEDKIT #25 - VALUE ADDED SERVICES S |
2,317 | - |
|
Datasheet | - | Case | Active | Keylock, Pushbutton, Illuminated, Toggle | 8 Pieces (8 Values - 1 Each) | 10A, 6A, 3A (AC); 100mA (AC/DC) | 250V, 125V, 30V | - | Assorted | Assorted | Panel Mount | Solder Lug; Quick Connect; Wire Leads |
|

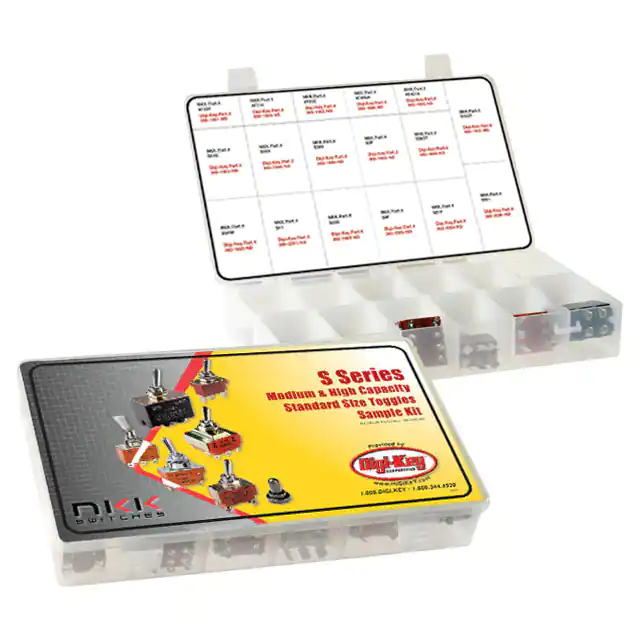

KIT-DIGI-KEY S SERIESS SERIES SAMPLE TOGGLE KIT |
2,591 | - |
|
Datasheet | S | Case | Active | Toggle | 17 Pieces (14 Values - Mixed Quantities) | 25A, 15A (AC); 20A (DC) | 125V | 30V | Locking Lever, Standard Round | Assorted | Panel Mount | Screw Terminal; Solder Lug; Quick Connect - 0.250" (6.3mm) |
|
KIT28-MEDICALKIT 28, MEDICAL SWITCH SAMPLES |
2,015 | - |
|
Datasheet | - | Bulk | Active | Keylock, Pushbutton, Illuminated, Pushbutton, Rocker, Toggle, Illuminated, Toggle, Tactile, Illuminated, Tactile | 14 Pieces (14 Values - 1 Each) | 3A, 6A, 10A, 16A (AC); 0.4VA (AC/DC); 50mA (DC) | 28V, 125V, 250V | 24V, 28V | Assorted | Assorted | Assorted Panel Mount and Through Hole | PC Pin; Screw Terminal; Solder Lug; Quick Connect - 0.250" (6.3mm); Solder, Quick Connect - 0.110" (2.8mm) |
|
|
KIT23-INDUSTRIALKIT 23, INDUSTRIAL SAMPLE KIT |
3,535 | - |
|
Datasheet | - | Bulk | Active | Keylock, Pushbutton, Illuminated, Pushbutton, Rocker, Toggle | 16 Pieces (16 Values - 1 Each) | 3A, 5A, 6A, 10A, 15A, 16A, 20A, 30A (AC) | 125V | - | Assorted | Assorted | Assorted Panel Mount and Through Hole | PC Pin; Screw Terminal; Solder Lug; Quick Connect - 0.250" (6.3mm); Solder, Quick Connect - 0.187" (4.7mm); Solder, Quick Connect - 0.110" (2.8mm) |
