Tactile Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B3W-9000-HG1NSWITCH TACTILE SPST-NO 0.05A 24V |
252 | - |
|
Datasheet | B3W-9 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 10.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Green | 3.7 VDC | 160gf | - | Sealed - Fully | -25°C ~ 70°C |
|
B3W-9000-B1NSWITCH TACTILE SPST-NO 0.05A 24V |
597 | - |
|
Datasheet | B3W-9 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 10.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Blue | 3.7 VDC | 160gf | - | Sealed - Fully | -25°C ~ 70°C |
|
B3W-9000-HG1GSWITCH TACTILE SPST-NO 0.05A 24V |
295 | - |
|
Datasheet | B3W-9 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 10.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Green | 3.7 VDC | 160gf | - | Sealed - Fully | -25°C ~ 70°C |
|
B3W-9010-R1RSWITCH TACTILE SPST-NO 0.05A 24V |
298 | - |
|
Datasheet | B3W-9 | Box | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 10.20mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Illuminated | LED, Red | 1.8 VDC | 160gf | - | Sealed - Fully | -25°C ~ 70°C |
|
TL3200AF160GRQSWITCH TACTILE SPST-NO 0.05A 12V |
14,020 | - |
|
Datasheet | TL3200 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount | 2.50mm | - | Top Actuated | Gull Wing | 6.80mm x 4.50mm | Illuminated | LED, Green/Red | 2.3 VDC | 160gf | - | - | -25°C ~ 85°C |
|
JB15HKP-1BSWITCH TACT SPST-NO 0.125A 24V |
308 | - |
|
Datasheet | JB | Tray | Active | SPST-NO | Off-Mom | 0.125A @ 24VDC | Square Button | Through Hole | 11.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 265gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|

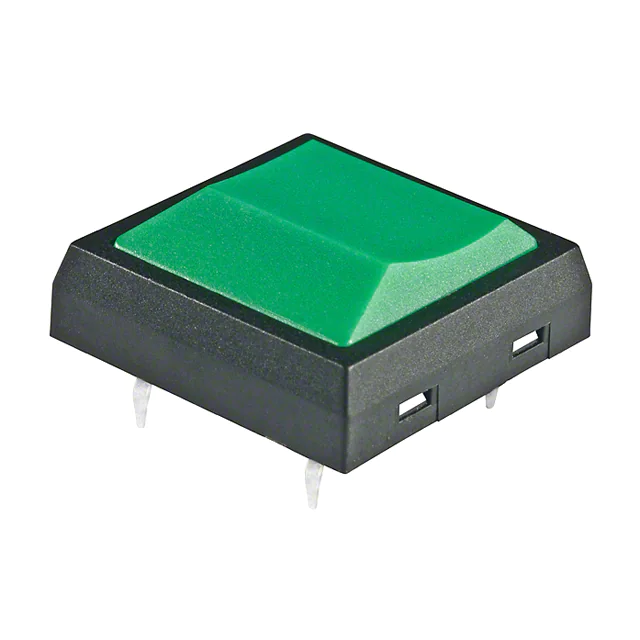

JF15SP3FSWITCH TACTILE SPST-NO 0.05A 24V |
62 |
1+：$5.35200 10+：$4.45760 25+：$4.12896 100+：$3.68400 250+：$3.42976 500+：$3.25938 1000+：$3.10754 2500+：$2.93380 |
|
Datasheet | JF | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 6.78mm | - | Top Actuated | PC Pin | 17.70mm x 17.70mm | Non-Illuminated | - | - | 196gf | - | Process Sealed | -25°C ~ 85°C |
|
KT11S2SA2M35LFGSWITCH TACTILE SPST-NO 1VA 32V |
15,823 | - |
|
Datasheet | KT | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 1VA @ 32VAC/DC | Plunger for Cap | Surface Mount, Right Angle | - | - | Side Actuated | Gull Wing | 7.77mm x 6.41mm | Non-Illuminated | - | - | 300gf | IP57 - Dust Protected, Waterproof | Sealed | -40°C ~ 90°C |
|
B3W-9012-RG2NSWITCH TACTILE SPST-NO 0.05A 24V |
290 | - |
|
Datasheet | B3W-9 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 10.20mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Illuminated | LED, Green/Red | 1.8, 2.1 VDC | 230gf | - | Sealed - Fully | -25°C ~ 70°C |
|
TL6215VF200BETSWITCH TACTILE SPST-NO 0.05A 12V |
582 | - |
|
Datasheet | TL6215 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole | 10.70mm | - | Top Actuated | PC Pin | 7.70mm x 6.37mm | Illuminated | LED, Blue | 3.3 VDC | 200gf | IP67 - Dust Tight, Waterproof | - | -20°C ~ 70°C |
|
B3W-9010-B1NSWITCH TACTILE SPST-NO 0.05A 24V |
194 | - |
|
Datasheet | B3W-9 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 10.20mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Illuminated | LED, Blue | 3.7 VDC | 160gf | - | Sealed - Fully | -25°C ~ 70°C |
|

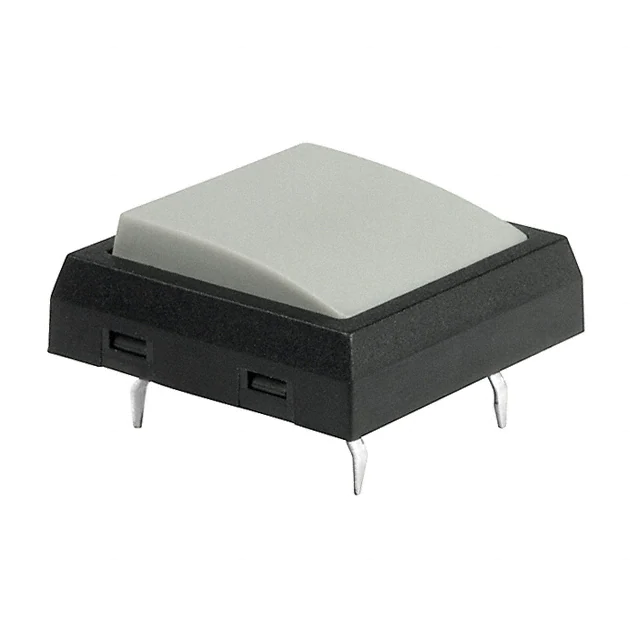

JF15SP4HSWITCH TACTILE SPST-NO 0.05A 24V |
1,111 | - |
|
Datasheet | JF | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 6.98mm | - | Top Actuated | PC Pin | 17.70mm x 17.70mm | Non-Illuminated | - | - | 200gf | - | Process Sealed | -25°C ~ 85°C |
|
|
JB15HKP-2ASWITCH TACT SPST-NO 0.125A 24V |
467 | - |
|
Datasheet | JB | Tray | Active | SPST-NO | Off-Mom | 0.125A @ 24VDC | Square Button | Through Hole | 11.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 265gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
JB15HKP-2BSWITCH TACT SPST-NO 0.125A 24V |
243 | - |
|
Datasheet | JB | Bulk | Active | SPST-NO | Off-Mom | 0.125A @ 24VDC | Square Button | Through Hole | 11.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 265gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
B3W-9010-G2NSWITCH TACTILE SPST-NO 0.05A 24V |
237 | - |
|
Datasheet | B3W-9 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 10.20mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Illuminated | LED, Green | 2.1 VDC | 160gf | - | Sealed - Fully | -25°C ~ 70°C |
|
B3W-9000-B1BSWITCH TACTILE SPST-NO 0.05A 24V |
202 | - |
|
Datasheet | B3W-9 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 10.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Blue | 3.7 VDC | 160gf | - | Sealed - Fully | -25°C ~ 70°C |
|
B3W-9000-RHG2CSWITCH TACTILE SPST-NO 0.05A 24V |
1,203 | - |
|
Datasheet | B3W-9 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 10.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Green/Red | 1.8, 3.7 VDC | 160gf | - | Sealed - Fully | -25°C ~ 70°C |
|
|
TL3253BBABBAF160QSWITCH TACT SPSTX2 0.05A 12V |
915 | - |
|
Datasheet | TL3253 | Bulk | Active | SPST x 2 | Off-Mom | 0.05A @ 12VDC | Dual | Through Hole, Right Angle | - | 8.55mm | Side Actuated | PC Pin | 8.40mm x 10.50mm | Illuminated | LED, Blue/Blue | 3.3 VDC | 160gf | - | - | -20°C ~ 70°C |
|
ITS50FV3SRSWITCH TACTILE SPST-NO 0.05A 12V |
3,369 | - |
|
Datasheet | ITS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | - | - | Top Actuated | J Lead | 7.50mm x 7.00mm | Illuminated | LED, White | 3.6 VDC | 160gf | - | - | -25°C ~ 70°C |
|

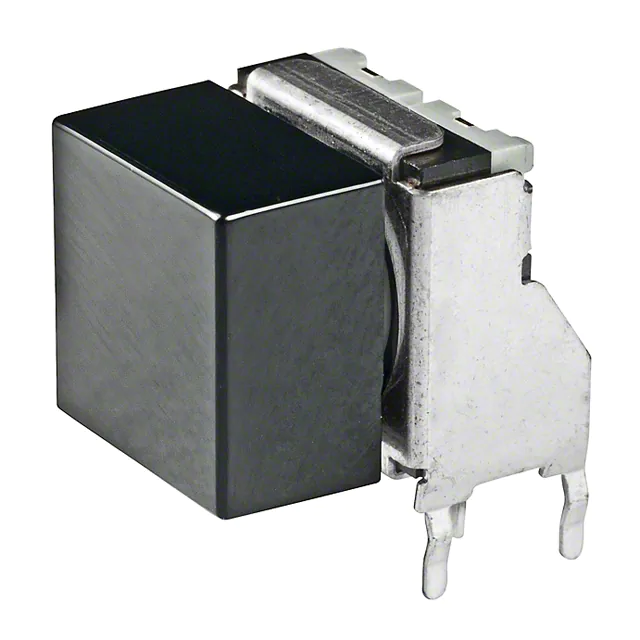

JB15HKH-6ASWITCH TACT SPST-NO 0.125A 24V |
172 |
1+：$6.87200 10+：$5.70720 25+：$5.28672 100+：$4.72120 250+：$4.40045 500+：$4.18637 1000+：$3.99622 |
|
Datasheet | JB | Box | Active | SPST-NO | Off-Mom | 0.125A @ 24VDC | Square Button | Through Hole, Right Angle | - | 7.76mm | Side Actuated | PC Pin | 10.80mm x 6.54mm | Non-Illuminated | - | - | 265gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
