Tactile Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TS27-68-24-R-260-DSWITCH TACTILE SPST-NO 0.05A 12V |
1,799 | - |
|
Datasheet | TS27 | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole | 7.20mm | - | Top Actuated | PC Pin | 6.80mm x 6.00mm | Illuminated | LED, Red | - | 260gf | - | - | -30°C ~ 80°C |
|
|
SKPFAAA010SWITCH TACTILE SPST-NO 0.05A 12V |
916 | - |
|
Datasheet | SKPF | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 10.00mm | - | Top Actuated | PC Pin | 9.00mm x 8.00mm | Non-Illuminated | - | - | 400gf | - | - | -40°C ~ 90°C |
|
|
SKQEABA010SWITCH TACTILE SPST-NO 0.05A 12V |
423 | - |
|
Datasheet | SKQE | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 90°C |
|
|
TSS 650 R-JSWITCH TACT 2.0N |
1,800 | - |
|
Datasheet | TSS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 5.00mm | - | Top Actuated | J Lead | 6.00mm x 6.00mm | Non-Illuminated | - | - | 200gf | - | - | -40°C ~ 85°C |
|

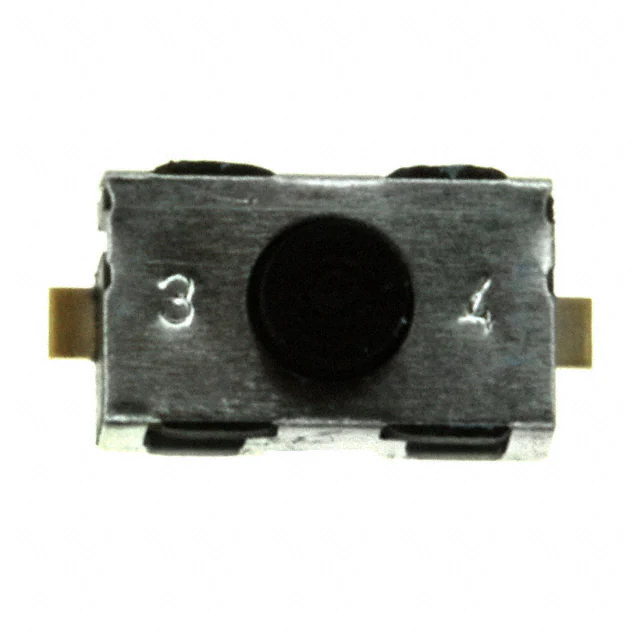

KSR234G LFGSWITCH TACTILE SPST-NO 0.01A 32V |
1,284 | - |
|
Datasheet | KSR | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.01A @ 32VDC | Standard | Surface Mount | 2.50mm | - | Top Actuated | Gull Wing | 6.00mm x 3.80mm | Non-Illuminated | - | - | 300gf | IP50 - Dust Protected | - | -40°C ~ 125°C |
|
7914J-1-032SWITCH TACTILE SPST-NO 0.1A 16V |
138 | - |
|
Datasheet | 7914 | Tube | Active | SPST-NO | Off-Mom | 0.1A @ 16VAC/DC | Standard | Surface Mount | 3.43mm | - | Top Actuated | J Lead | 5.00mm x 5.00mm | Non-Illuminated | - | - | 300gf | IP67 - Dust Tight, Waterproof | - | -55°C ~ 125°C |
|
|
TSS 507SWITCH TACT 0.05A 42V |
4,000 | - |
|
Datasheet | TSS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 42VDC | Standard | Surface Mount | 1.50mm | - | Top Actuated | SMD (SMT) Tab | 4.90mm x 4.90mm | Non-Illuminated | - | - | 250gf | - | - | -25°C ~ 80°C |
|
|
TSS 650 S-JSWITCH TACT 3.5N |
1,800 | - |
|
Datasheet | TSS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 5.00mm | - | Top Actuated | J Lead | 6.00mm x 6.00mm | Non-Illuminated | - | - | 350gf | - | - | -40°C ~ 85°C |
|
|
TSSE 633 R-RASWITCH TACT 2.35MM RED |
999 | - |
|
Datasheet | TSS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount, Right Angle | - | - | Side Actuated | Gull Wing | 7.55mm x 5.10mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
|
|
TSE 21495 S-1SWITCH TACT OFF - MOM |
599 | - |
|
Datasheet | TSE | Tube | Active | SPST-NO | Off-Mom | 0.1A @ 42VDC | Standard | Through Hole | 4.95mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 367gf | - | - | -40°C ~ 90°C |
|
|
TSE 21495 SSWITCH TACT OFF - MOM |
589 | - |
|
Datasheet | TSE | Tube | Active | SPST-NO | Off-Mom | 0.1A @ 42VDC | Standard | Through Hole | 4.95mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 367gf | - | - | -40°C ~ 90°C |
|
|
TSS 4 RASWITCH TACT 0.05A 12V |
1,649 | - |
|
Datasheet | TSS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount, Right Angle | - | 3.50mm | Side Actuated | Gull Wing | 7.20mm x 3.50mm | Non-Illuminated | - | - | 220gf | - | - | -40°C ~ 85°C |
|
|
TS27-68-24-RB-260-DSWITCH TACTILE SPST-NO 0.05A 12V |
2,967 | - |
|
Datasheet | TS27 | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole | 7.20mm | - | Top Actuated | PC Pin | 6.80mm x 6.00mm | Illuminated | LED, Blue/Red | - | 260gf | - | - | -30°C ~ 80°C |
|
KSA0M531 LFTRSWITCH TACTILE SPST-NO 0.01A 32V |
9,486 | - |
|
Datasheet | KSA | Bulk | Active | SPST-NO | Off-Mom | 0.01A @ 32VDC | Standard | Through Hole | 4.70mm | - | Top Actuated | PC Pin | 7.40mm x 7.40mm | Non-Illuminated | - | - | 500gf | IP60 - Dust Tight | - | -40°C ~ 125°C |
|
KSJ0MD18 60SH LFTRSWITCH TACTILE SPST-NO 0.05A 32V |
7,988 | - |
|
Datasheet | KSJ | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 32VDC | Spherical | Through Hole | 6.65mm | - | Top Actuated | PC Pin | 7.40mm x 7.40mm | Non-Illuminated | - | - | 600gf | IP60 - Dust Tight | - | -40°C ~ 85°C |
|
|
TS26-68-25-BL-260-SMT-TRSWITCH TACTILE SPST-NO 0.05A 12V |
5,141 | - |
|
Datasheet | TS26 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 7.00mm | - | Top Actuated | Gull Wing | 7.20mm x 6.80mm | Illuminated | LED, Blue | - | 260gf | - | - | -30°C ~ 80°C |
|
|
TS26-68-25-Y-260-SMT-TRSWITCH TACTILE SPST-NO 0.05A 12V |
3,186 | - |
|
Datasheet | TS26 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 7.00mm | - | Top Actuated | Gull Wing | 7.20mm x 6.80mm | Illuminated | LED, Yellow | - | 260gf | - | - | -30°C ~ 80°C |
|
|
TS26-68-25-R-260-SMT-TRSWITCH TACTILE SPST-NO 0.05A 12V |
3,144 | - |
|
Datasheet | TS26 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 7.00mm | - | Top Actuated | Gull Wing | 7.20mm x 6.80mm | Illuminated | LED, Red | - | 260gf | - | - | -30°C ~ 80°C |
|
|
TS26-68-25-RB-260-SMT-TRSWITCH TACTILE SPST-NO 0.05A 12V |
3,096 | - |
|
Datasheet | TS26 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 7.00mm | - | Top Actuated | Gull Wing | 7.20mm x 6.80mm | Illuminated | LED, Blue/Red | - | 260gf | - | - | -30°C ~ 80°C |
|
|
TS26-68-25-G-260-SMT-TRSWITCH TACTILE SPST-NO 0.05A 12V |
3,025 | - |
|
Datasheet | TS26 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 7.00mm | - | Top Actuated | Gull Wing | 7.20mm x 6.80mm | Illuminated | LED, Green | - | 260gf | - | - | -30°C ~ 80°C |
