Tactile Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TS 21 NSWITCH TACT 4.3MM BROWN |
416 | - |
|
Datasheet | TS | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 160gf | - | - | -25°C ~ 70°C |
|
|
TS 24 NSWITCH TACT 7.3MM BROWN |
489 | - |
|
Datasheet | TS | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole | 7.30mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
|
TS 24 RSWITCH TACT 7.3MM RED |
500 | - |
|
Datasheet | TS | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole | 7.30mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
|
|
KSC4TE41J LFSSWITCH TACT SPST-NO 0.003A 24V |
871 | - |
|
Datasheet | KSC4 TE | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.003A @ 24VDC | Standard | Surface Mount | 5.20mm | - | Top Actuated | J Lead | 6.30mm x 6.20mm | Non-Illuminated | - | - | 408gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 90°C |
|
|
KSC4TE31J LFSSWITCH TACT SPST-NO 0.003A 24V |
886 | - |
|
Datasheet | KSC4 TE | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.003A @ 24VDC | Standard | Surface Mount | 5.20mm | - | Top Actuated | J Lead | 6.30mm x 6.20mm | Non-Illuminated | - | - | 286gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 90°C |
|
|
B3F-1000-SSWITCH TACTILE SPST-NO 0.05A 24V |
232 | - |
|
Datasheet | B3F | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | - | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -25°C ~ 70°C |
|
|
TSE 66 NSWITCH TACT 3.1MM BROWN |
555 |
1+：$0.49600 10+：$0.42560 25+：$0.39680 75+：$0.36298 150+：$0.34256 300+：$0.32328 525+：$0.30865 1050+：$0.29180 5025+：$0.25928 |
|
Datasheet | TSE | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 3.10mm | - | Top Actuated | PC Pin | 6.30mm x 6.20mm | Non-Illuminated | - | - | 160gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
SKPSAAE010SWITCH TACTILE SPST-NO 0.05A 16V |
275 | - |
|
Datasheet | SKPS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 16VDC | Standard | Surface Mount | 5.00mm | - | Top Actuated | J Lead | 6.00mm x 6.60mm | Non-Illuminated | - | - | 367gf | - | - | -40°C ~ 90°C |
|
B3F-1002SSWITCH TACTILE SPST-NO 0.05A 24V |
128 | - |
|
Datasheet | B3F | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 150gf | - | - | -25°C ~ 70°C |
|
|
SKHWALA010SWITCH TACTILE SPST-NO 0.05A 12V |
995 | - |
|
Datasheet | SKHW | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 90°C |
|
|
TSSE 67 RSWITCH TACT 5.2MM RED |
900 | - |
|
Datasheet | TSS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Surface Mount | 3.60mm | - | Top Actuated | Gull Wing | 6.30mm x 6.20mm | Non-Illuminated | - | - | 260gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
TS 637 RASWITCH TACT 50MA 12V |
484 | - |
|
Datasheet | TS | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Through Hole, Right Angle | - | 3.75mm | Side Actuated | PC Pin | 7.40mm x 5.82mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
|
1.14.005.006/0000SWITCH TACTILE SPST-NO 0.1A 35V |
100 | - |
|
Datasheet | MICON 5 | Tube | Active | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Standard | Through Hole | 3.85mm | - | Top Actuated | PC Pin | 6.40mm x 5.10mm | Non-Illuminated | - | - | 612gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 125°C |
|
|
1.14.005.106/0000SWITCH TACTILE SPST-NO 0.1A 35V |
3,358 | - |
|
Datasheet | MICON 5 | Tube | Active | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Standard | Through Hole | 3.85mm | - | Top Actuated | PC Pin | 6.40mm x 5.10mm | Non-Illuminated | - | - | 408gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 125°C |
|
|
1.14.005.116/0000SWITCH TACTILE SPST-NO 0.1A 35V |
3,092 | - |
|
Datasheet | MICON 5 | Tube | Active | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Standard | Through Hole | 3.85mm | - | Top Actuated | PC Pin | 6.40mm x 5.10mm | Non-Illuminated | - | - | 816gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 125°C |
|
|
JB15KP-2A/1SWITCH TACTILE SPST-NO 0.05A 24V |
2,135 | - |
|
Datasheet | JB | Box | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 11.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 176gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
|
JB15KP-2FSWITCH TACTILE SPST-NO 0.05A 24V |
2,504 | - |
|
Datasheet | JB | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 11.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 176gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
|
JB15KP-4BHSWITCH TACTILE SPST-NO 0.05A 24V |
100 | - |
|
Datasheet | JB | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 11.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 176gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
|
JB15KP-4FFSWITCH TACTILE SPST-NO 0.05A 24V |
4,725 | - |
|
Datasheet | JB | Box | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 11.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 176gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|

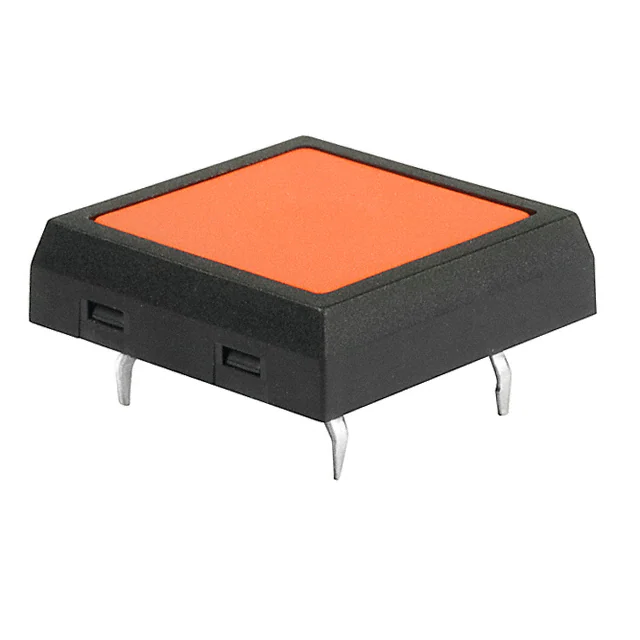

JF15SP1DSWITCH TACTILE SPST-NO 0.05A 24V |
4,624 | - |
|
Datasheet | JF | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 5.08mm | - | Top Actuated | PC Pin | 17.70mm x 17.70mm | Non-Illuminated | - | - | 300gf | - | Process Sealed | -25°C ~ 85°C |
