Tactile Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ME0210.4F3502SWITCH TACTILE SPST-NO 0.05A 24V |
3,563 | - |
|
Datasheet | ME | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 10.40mm | - | Top Actuated | SMD (SMT) Tab | 10.00mm x 10.00mm | Non-Illuminated | - | - | 350gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
228EJVAYFRSWITCH TACTILE SPST-NO 0.05A 12V |
2,595 | - |
|
Datasheet | 228E | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 5.50mm | - | Top Actuated | J Lead | 7.20mm x 6.80mm | Illuminated | LED, Yellow | - | 200gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
ME016.4F3502SWITCH TACTILE SPST-NO 0.05A 24V |
4,355 | - |
|
Datasheet | ME | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 6.40mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 350gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
ME0211.0F3502SWITCH TACTILE SPST-NO 0.05A 24V |
2,086 | - |
|
Datasheet | ME | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 11.00mm | - | Top Actuated | SMD (SMT) Tab | 10.00mm x 10.00mm | Non-Illuminated | - | - | 350gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
ME026.4F3502SWITCH TACTILE SPST-NO 0.05A 24V |
4,367 | - |
|
Datasheet | ME | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 6.40mm | - | Top Actuated | SMD (SMT) Tab | 10.00mm x 10.00mm | Non-Illuminated | - | - | 350gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
JB15HAP-1HSWITCH TACT SPST-NO 0.125A 24V |
2,892 | - |
|
Datasheet | JB | Tray | Active | SPST-NO | Off-Mom | 0.125A @ 24VDC | Square Button | Through Hole | 14.70mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 265gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
1241.1052SWITCH TACT SPST-NO 0.125A 48V |
2,577 | - |
|
Datasheet | MTG Green | Bulk | Active | SPST-NO | Off-Mom | 0.125A @ 48VDC | Standard | Through Hole | 4.40mm | - | Top Actuated | PC Pin | 12.65mm x 12.65mm | Non-Illuminated | - | - | 250gf | IP40 | Tactile Feedback | -25°C ~ 85°C |
|
228FDVAWBBSWITCH TACTILE SPST-NO 0.05A 12V |
2,785 | - |
|
Datasheet | 228F | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole | 7.20mm | - | Top Actuated | PC Pin | 7.00mm x 6.70mm | Illuminated | LED, White | - | 160gf | - | - | -20°C ~ 70°C |
|

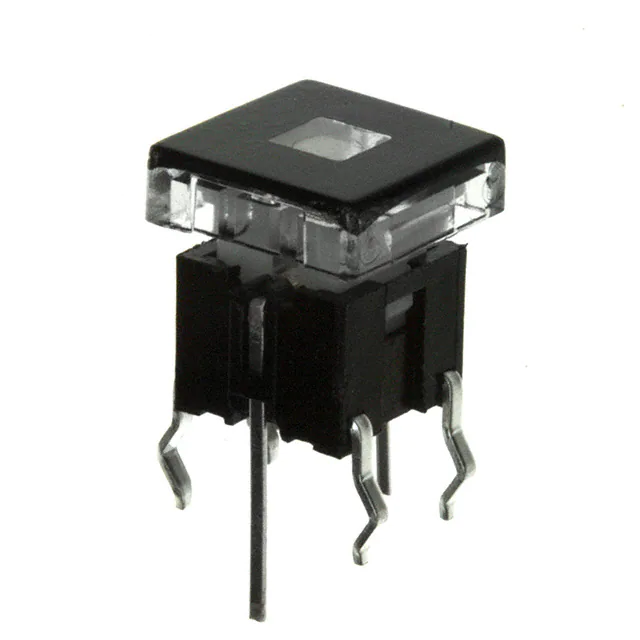

TL1240RQ2JBLKSWITCH TACTILE SPST-NO 0.05A 12V |
1,192 | - |
|
Datasheet | TL1240 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Square Button | Through Hole | 8.20mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Illuminated | LED, Red | 2.3 VDC | 160gf | - | - | -20°C ~ 70°C |
|
1.14.002.116/0000SWITCH TACTILE SPST-NO 0.1A 35V |
4,609 | - |
|
Datasheet | MICON 5 | Tube | Active | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Standard | Through Hole | 3.80mm | - | Top Actuated | PC Pin | 6.40mm x 5.10mm | Non-Illuminated | - | - | 550gf | - | Tactile Feedback | -40°C ~ 85°C |
|
1241.1624.7SWITCH TACTILE SPST-NO 0.05A 42V |
0 |
1+：$3.78400 10+：$3.15840 25+：$2.92608 100+：$2.60872 300+：$2.39214 500+：$2.30259 1000+：$2.19234 2500+：$2.06570 |
|
Datasheet | PMS | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 42VDC | Standard | Through Hole | 12.85mm | - | Top Actuated | PC Pin | 11.40mm x 11.40mm | Non-Illuminated | - | - | 180gf | IP40 | Tactile Feedback | -40°C ~ 85°C |
|
1241.1082.6SWITCH TACT SPST-NO 0.125A 48V |
1,512 | - |
|
Datasheet | MTG Green | Bulk | Active | SPST-NO | Off-Mom | 0.125A @ 48VDC | Round Button | Through Hole | 12.25mm | - | Top Actuated | PC Pin | 12.65mm x 12.65mm | Non-Illuminated | - | - | 250gf | IP40 | Tactile Feedback | -25°C ~ 85°C |
|
JB15KP-2BSWITCH TACTILE SPST-NO 0.05A 24V |
2,725 | - |
|
Datasheet | JB | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 11.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 176gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
|
JB15KP/AT4060JBSWITCH TACTILE SPST-NO 0.05A 24V |
4,657 | - |
|
Datasheet | JB | Box | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 11.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 176gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
320.09E11WHTSWITCH TACT SPST-NO 0.025A 50V |
3,157 | - |
|
Datasheet | 320 | Bulk | Active | SPST-NO | Off-Mom | 0.025A @ 50VDC | Round Button | Through Hole | 15.30mm | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | White Cap | -20°C ~ 70°C |
|
3.14.100.801/0000SWITCH TACTILE SPST-NO 0.1A 35V |
2,251 | - |
|
Datasheet | RF15R | Box | Active | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Round Button | Through Hole | 12.50mm | - | Top Actuated | PC Pin | 15.00mm x 15.00mm | Non-Illuminated | - | - | 296gf | - | - | -25°C ~ 70°C |
|
ITS50FV1STSWITCH TACTILE SPST-NO 0.05A 12V |
4,782 | - |
|
Datasheet | ITS | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole | - | - | Top Actuated | PC Pin | 7.20mm x 6.80mm | Illuminated | LED, White | 3.6 VDC | 160gf | - | - | -25°C ~ 70°C |
|

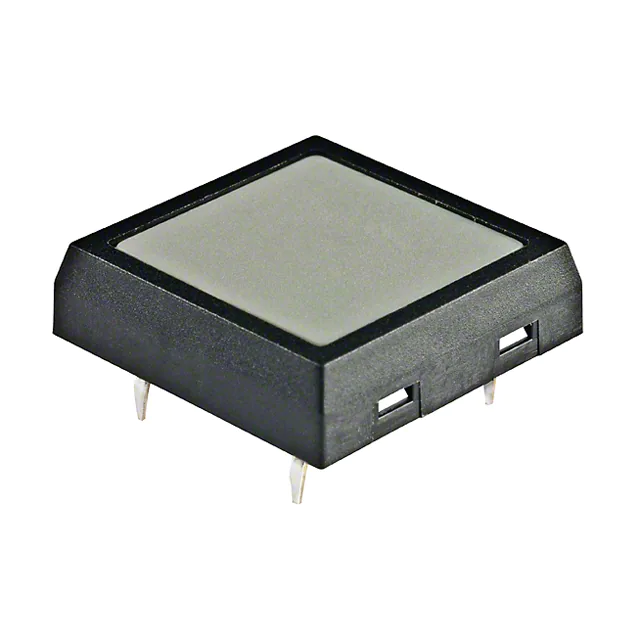

JF15SP1HSWITCH TACTILE SPST-NO 0.05A 24V |
4,160 | - |
|
Datasheet | JF | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 5.08mm | - | Top Actuated | PC Pin | 17.70mm x 17.70mm | Non-Illuminated | - | - | 300gf | - | Process Sealed | -25°C ~ 85°C |
|

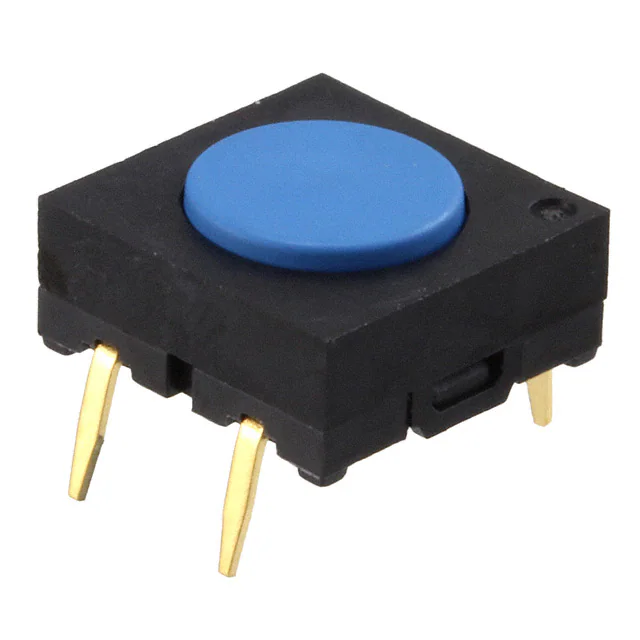

JB15FPG05SWITCH TACTILE SPST-NO 0.4VA 28V |
1,454 | - |
|
Datasheet | JB | Bulk | Active | SPST-NO | Off-Mom | 0.4VA @ 28VAC/DC | Round Button | Through Hole | 4.90mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 176gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|

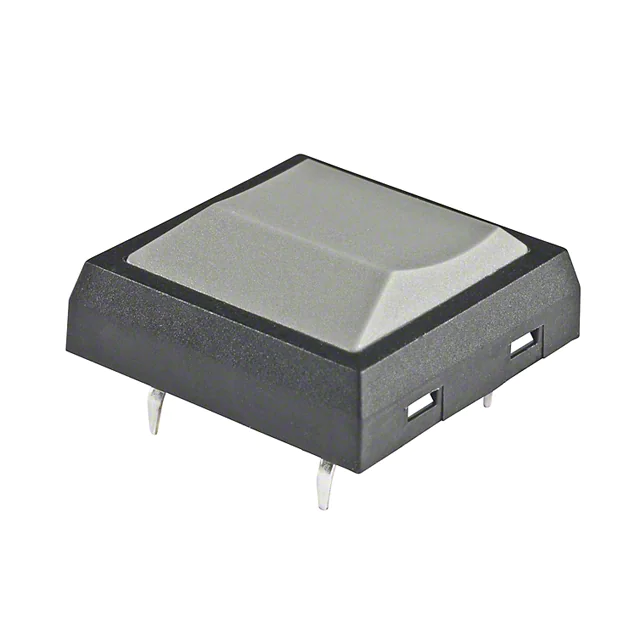

JF15SP3HSWITCH TACTILE SPST-NO 0.05A 24V |
1,691 | - |
|
Datasheet | JF | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 6.78mm | - | Top Actuated | PC Pin | 17.70mm x 17.70mm | Non-Illuminated | - | - | 196gf | - | Process Sealed | -25°C ~ 85°C |
