Tactile Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3.14.001.030/0000SWITCH TACTILE SPST-NO 0.25A 35V |
1,696 | - |
|
Datasheet | - | Bulk | Obsolete | SPST-NO | Off-Mom | 0.25A @ 35VAC/DC | Standard | Through Hole | 9.70mm | - | Top Actuated | PC Pin | 19.05mm x 19.05mm | Non-Illuminated | - | - | 296gf | - | - | -25°C ~ 70°C |
|
|
3.14.100.734/0000SWITCH TACTILE |
3,332 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3.14.200.746/0000SWITCH TACTILE SPST-NO 0.25A 35V |
4,651 | - |
|
Datasheet | RF15H | Bulk | Obsolete | SPST-NO | Off-Mom | 0.25A @ 35VAC/DC | Square Button | Through Hole | 12.50mm | - | Top Actuated | PC Pin | 15.00mm x 15.00mm | Illuminated | LED, White | - | 296gf | - | - | -25°C ~ 70°C |
|
|
3.14.200.749/0000SWITCH TACTILE SPST-NO 0.25A 35V |
4,633 | - |
|
Datasheet | RF15H | Bulk | Obsolete | SPST-NO | Off-Mom | 0.25A @ 35VAC/DC | Square Button | Through Hole | 12.50mm | - | Top Actuated | PC Pin | 15.00mm x 15.00mm | Illuminated | LED, Blue | - | 296gf | - | - | -25°C ~ 70°C |
|

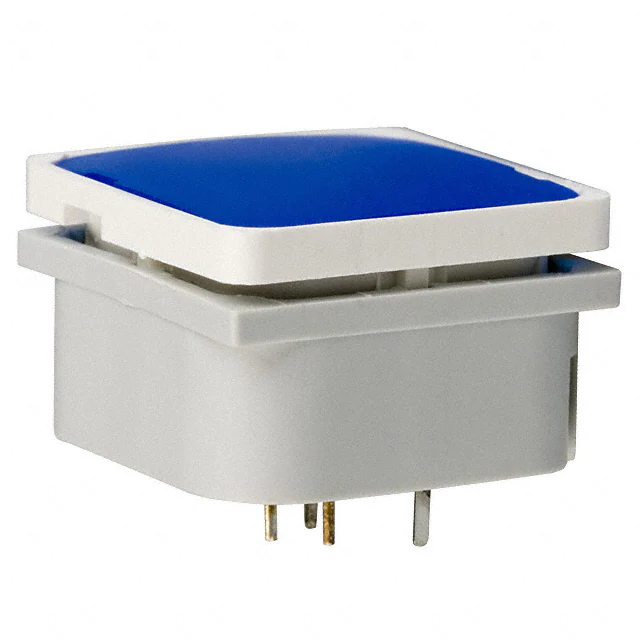

3.14.002.688/0000SWITCH TACTILE SPST-NO 0.25A 50V |
0 |
25+：$16.85664 |
|
Datasheet | RF19H | Tube | Obsolete | SPST-NO | Off-Mom | 0.25A @ 50VAC/DC | Square Button | Through Hole | 12.50mm | - | Top Actuated | PC Pin | 19.05mm x 19.05mm | Illuminated | LED, Blue | - | 204 ~ 306gf | - | - | -25°C ~ 70°C |
|
|
3.14.002.643/0000SWITCH TACTILE SPST-NO 0.25A 35V |
2,161 | - |
|
Datasheet | RF19H | Bulk | Obsolete | SPST-NO | Off-Mom | 0.25A @ 35VAC/DC | Square Button | Through Hole | 12.50mm | - | Top Actuated | PC Pin | 19.05mm x 19.05mm | Illuminated | LED, Green | - | 296gf | - | - | -25°C ~ 70°C |
|
|
3.14.200.736/0000SWITCH TACTILE SPST-NO 0.1A 35V |
1,168 | - |
|
Datasheet | RF15H | Bulk | Obsolete | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Square Button | Through Hole | 12.50mm | - | Top Actuated | PC Pin | 15.00mm x 15.00mm | Illuminated | LED, Green | - | 296gf | - | - | -25°C ~ 70°C |
|
|
3.14.200.739/0000SWITCH TACTILE SPST-NO 0.1A 35V |
2,360 | - |
|
Datasheet | RF15H | Bulk | Obsolete | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Square Button | Through Hole | 12.50mm | - | Top Actuated | PC Pin | 15.00mm x 15.00mm | Illuminated | LED, Blue | - | 296gf | - | - | -25°C ~ 70°C |
|
|
1.16.000.990/0000SWITCH TACT DPST-NO/NC 0.25A 50V |
4,403 | - |
|
Datasheet | RF19 | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 0.25A @ 50VAC/DC | Square Button | Through Hole | 9.70mm | - | Top Actuated | PC Pin | 19.05mm x 19.05mm | Non-Illuminated | - | - | 204 ~ 306gf | - | - | -25°C ~ 70°C |
|
|
1.16.000.991/0000SWITCH TACT DPST-NO/NC 0.1A 42V |
4,209 | - |
|
Datasheet | RF19 | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 0.1A @ 42VAC/DC | Square Button | Through Hole | 9.70mm | - | Top Actuated | PC Pin | 19.05mm x 19.05mm | Non-Illuminated | - | - | 204 ~ 306gf | - | - | -25°C ~ 70°C |
