Tactile Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FSMIJM65BB04SWITCH TACTILE SPST-NO 0.05A 12V |
449 | - |
|
Datasheet | FSMIJ | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | - | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Illuminated | LED, Blue | - | 520gf | - | Tactile/Audible Feedback | -25°C ~ 70°C |
|
1571262-4SWITCH TACTILE SPST-NO 0.05A 12V |
6,585 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount, Right Angle | - | - | Side Actuated | Gull Wing | 5.40mm x 5.60mm | Non-Illuminated | - | - | 220gf | - | Board Guide | -20°C ~ 70°C |
|
|
FSM2JSMLSWITCH TACTILE SPST-NO 0.05A 24V |
3,400 | - |
|
Datasheet | FSMJSML | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -35°C ~ 85°C |
|

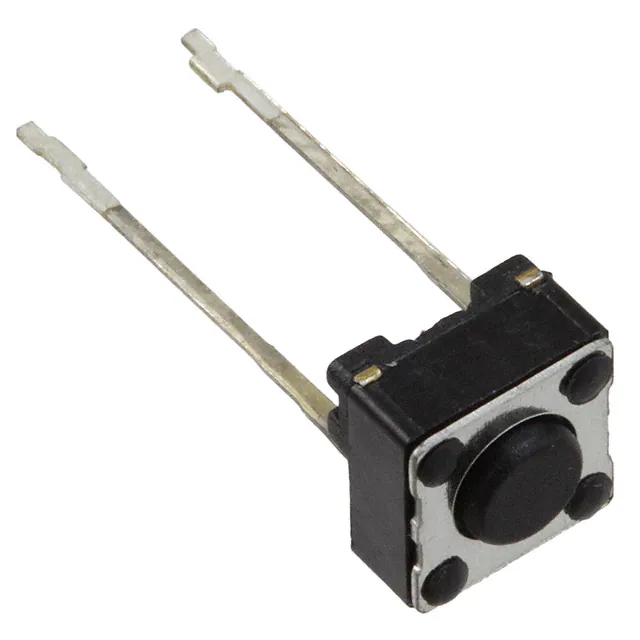

FSM2JRTSWITCH TACTILE SPST-NO 0.05A 24V |
15,275 | - |
|
Datasheet | FSMJRT | Cut Tape (CT) | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -35°C ~ 105°C |
|
|
1977120-6SWITCH TACTILE SPST-NO 0.05A 24V |
4,156 | - |
|
Datasheet | FSMJ | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 5.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -35°C ~ 85°C |
|
|
1977120-2SWITCH TACTILE SPST-NO 0.05A 24V |
1,583 | - |
|
Datasheet | FSMJ | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -35°C ~ 85°C |
|
|
1-1977120-0SWITCH TACTILE SPST-NO 0.05A 24V |
2,447 | - |
|
Datasheet | FSMJ | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 7.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -35°C ~ 85°C |
|
|
1571625-3SWITCH TACTILE SPST-NO 0.05A 12V |
2,484 | - |
|
Datasheet | Extended Life | Box | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 2.50mm | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | - | - | 100gf | - | - | -35°C ~ 85°C |
|
FSM1LPASSWITCH TACTILE SPST-NO 0.05A 24V |
4,082 | - |
|
Datasheet | FSM1LP | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 3.10mm | - | Top Actuated | Gull Wing | 6.20mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | Grounding Pin | -40°C ~ 105°C |
|

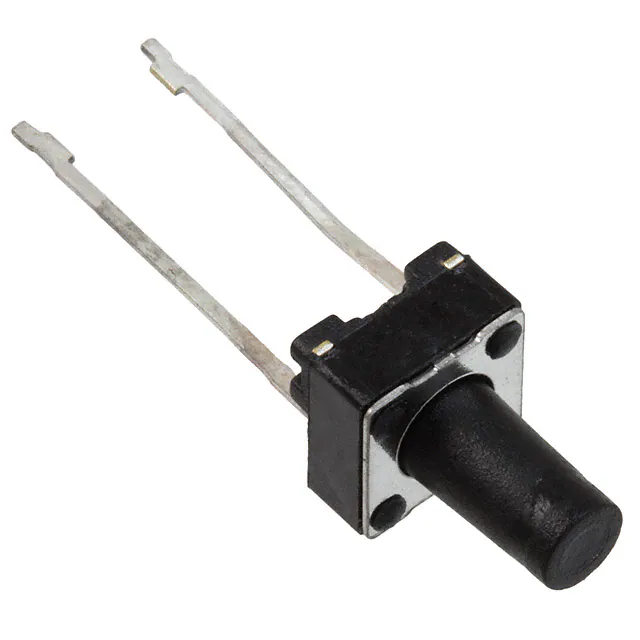

FSM8JRTSWITCH TACTILE SPST-NO 0.05A 24V |
5,001 | - |
|
Datasheet | FSMJRT | Cut Tape (CT) | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 9.50mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -35°C ~ 105°C |
