Tactile Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

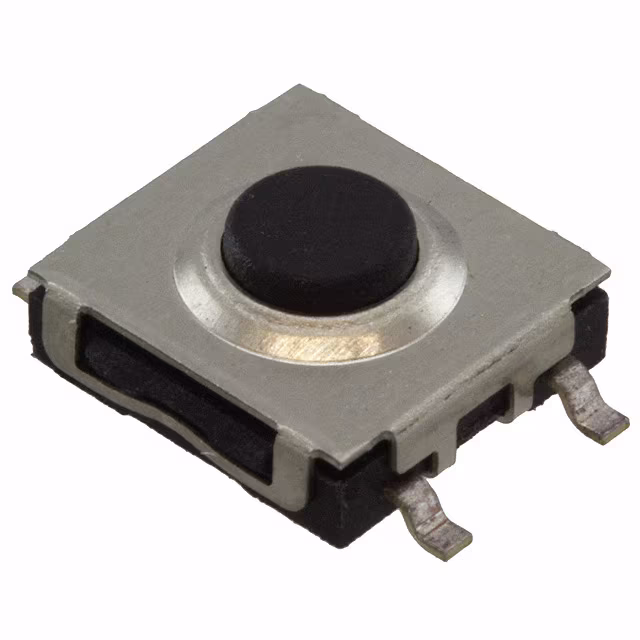

1571296-1SWITCH TACTILE SPST-NO 0.05A 24V |
1,802 | - |
|
Datasheet | - | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 3.30mm | - | Top Actuated | Gull Wing | 7.60mm x 7.30mm | Non-Illuminated | - | - | 160gf | IP67 - Dust Tight, Waterproof | Sealed - Fully | -35°C ~ 85°C |
|

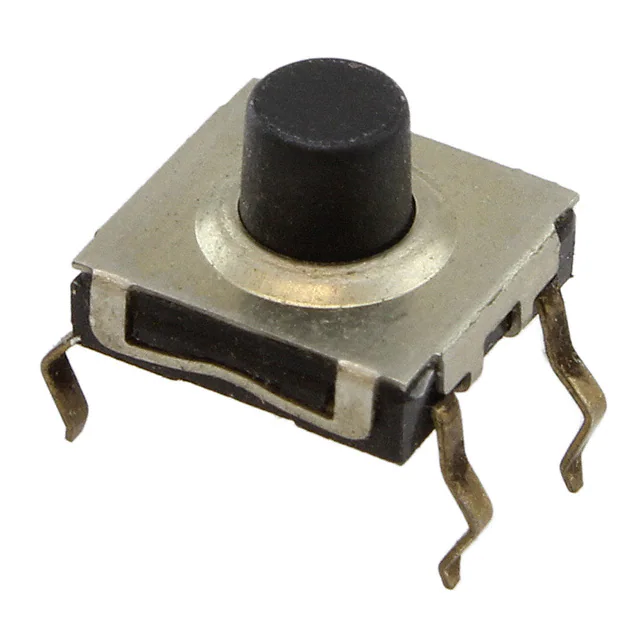

1571295-2SWITCH TACTILE SPST-NO 0.05A 24V |
2,621 | - |
|
Datasheet | - | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 5.00mm | - | Top Actuated | PC Pin | 7.60mm x 7.30mm | Non-Illuminated | - | - | 160gf | IP67 - Dust Tight, Waterproof | Sealed - Fully | -35°C ~ 85°C |
|
FSMLBASMSWITCH TACTILE SPST-NO 0.05A 12V |
1,336 | - |
|
Datasheet | FSMLBASM | Bulk | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount | 2.00mm | - | Top Actuated | Gull Wing | 5.51mm x 3.99mm | Non-Illuminated | - | - | 200gf | - | - | -35°C ~ 85°C |
|

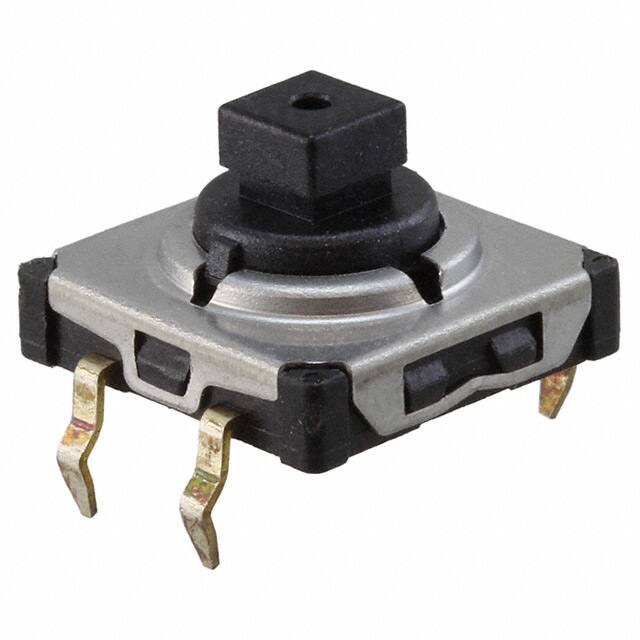

1571219-1SWITCH TACTILE SPST-NO 0.05A 24V |
2,905 | - |
|
Datasheet | - | Bag | Obsolete | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 7.30mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 160gf | IP67 - Dust Tight, Waterproof | Sealed - Fully | -35°C ~ 85°C |
|
|
FSMCSWITCH TACTILE SPST-NO 0.05A 12V |
3,101 | - |
|
Datasheet | FSM | Bulk | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.00mm x 3.50mm | Non-Illuminated | - | - | 130gf | - | - | -40°C ~ 85°C |
|
|
1-1977223-9SWITCH TACTILE SPST-NO 0.05A 24V |
2,597 | - |
|
Datasheet | FSMJSMA | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 7.00mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 105°C |
|
|
1-1977223-5SWITCH TACTILE SPST-NO 0.05A 24V |
2,503 | - |
|
Datasheet | FSMJSML | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 7.00mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -40°C ~ 105°C |
|
|
1571625-5SWITCH TACTILE SPST-NO 0.05A 12V |
2,434 | - |
|
Datasheet | Extended Life | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 2.50mm | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | - | -35°C ~ 85°C |
|
|
1571217-1SWITCH TACTILE SPST-NO 0.05A 24V |
3,679 | - |
|
Datasheet | - | Bag | Obsolete | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Surface Mount | 7.30mm | - | Top Actuated | Gull Wing | 12.00mm x 12.00mm | Non-Illuminated | - | - | 160gf | IP67 - Dust Tight, Waterproof | Sealed - Fully | -35°C ~ 85°C |
|
|
1571294-7SWITCH TACTILE SPST-NO 0.05A 24V |
3,033 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 4.50mm | - | Top Actuated | Gull Wing | 7.60mm x 7.30mm | Non-Illuminated | - | - | 160gf | IP67 - Dust Tight, Waterproof | Sealed - Fully | -35°C ~ 85°C |
