Tactile Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1571407-1SWITCH TACTILE SPST-NO 0.05A 24V |
1,296 | - |
|
Datasheet | - | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount, Right Angle | - | - | Side Actuated | SMD (SMT) Tab | 6.40mm x 6.30mm | Non-Illuminated | - | - | 260gf | IP67 - Dust Tight, Waterproof | Sealed - Fully | -35°C ~ 85°C |
|
|
1571218-6SWITCH TACTILE SPST-NO 0.05A 24V |
428 | - |
|
Datasheet | FSM100 ~ 104 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | Gull Wing | 12.00mm x 12.00mm | Non-Illuminated | - | - | 260gf | IP67 - Dust Tight, Waterproof | - | -35°C ~ 85°C |
|
|
1571300-3SWITCH TACTILE SPST-NO 0.05A 24V |
2,672 |
1+：$1.35200 10+：$1.14560 25+：$1.06336 100+：$0.94736 250+：$0.87827 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount, Right Angle | - | - | Side Actuated | SMD (SMT) Tab | 9.70mm x 5.50mm | Non-Illuminated | - | - | 130gf | IP67 - Dust Tight, Waterproof | - | -35°C ~ 85°C |
|

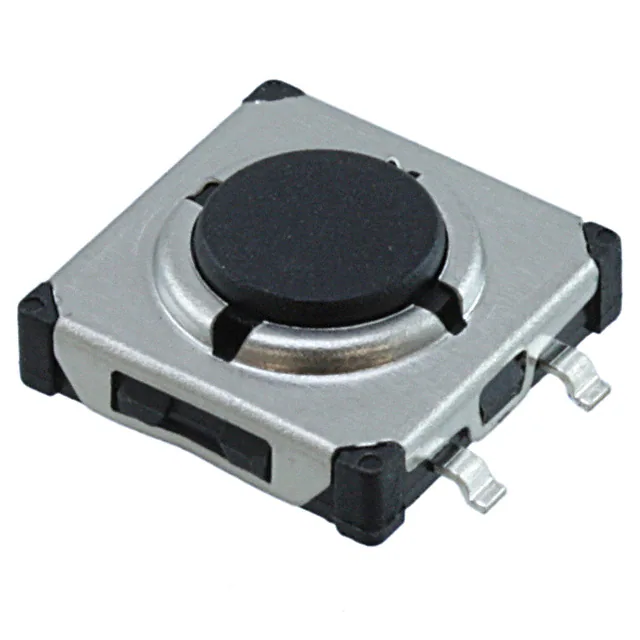

1571218-3SWITCH TACTILE SPST-NO 0.05A 24V |
3,232 | - |
|
Datasheet | FSM | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | Gull Wing | 12.00mm x 12.00mm | Non-Illuminated | - | - | 160gf | IP67 - Dust Tight, Waterproof | Sealed - Fully | -35°C ~ 85°C |
|
FSMIJM63BB04SWITCH TACTILE SPST-NO 0.05A 12V |
1,665 | - |
|
Datasheet | FSMIJ | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | - | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Illuminated | LED, Blue | - | 260gf | - | Tactile/Audible Feedback | -25°C ~ 70°C |
|
2-1825955-2SWITCH TACTILE SPST-NO 0.05A 24V |
14,534 | - |
|
Datasheet | FSMJ | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 8.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | Grounding Pin | -35°C ~ 85°C |
|
1-1825955-4SWITCH TACTILE SPST-NO 0.05A 24V |
34,094 | - |
|
Datasheet | FSMJ | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 9.50mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | Grounding Pin | -35°C ~ 85°C |
|

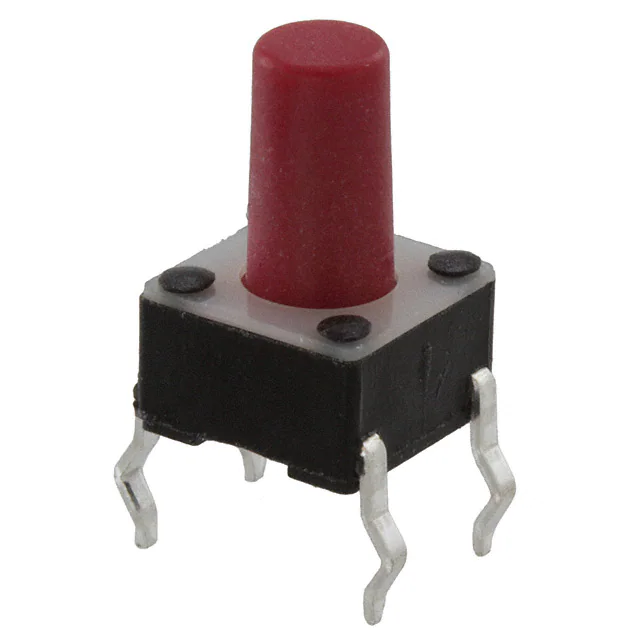

1-1825910-5SWITCH TACTILE SPST-NO 0.05A 24V |
13,095 |
1+：$0.13600 10+：$0.12080 25+：$0.11328 100+：$0.10200 250+：$0.09466 750+：$0.08638 1500+：$0.08154 3000+：$0.07706 5250+：$0.07372 |
|
Datasheet | FSMJ | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 9.50mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 105°C |
|
MCSLPT4644B1TRSWITCH TACTILE SPST-NO 0.05A 12V |
9,170 | - |
|
Datasheet | LPT | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Flush | Surface Mount | 0.55mm | - | Top Actuated | J Lead | 4.60mm x 4.40mm | Non-Illuminated | - | - | 100gf | - | - | -20°C ~ 70°C |
|
MCSLPT4848C3DTRSWITCH TACTILE SPST-NO 0.05A 12V |
4,290 | - |
|
Datasheet | LPT | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Flush | Surface Mount | 0.55mm | - | Top Actuated | J Lead | 4.80mm x 4.80mm | Non-Illuminated | - | - | 200gf | - | - | -30°C ~ 85°C |
