Tactile Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PTS526SM08SMTR2 LFSSWITCH TACTILE SPST-NO 0.05A 12V |
24,086 |
1+：$0.14400 10+：$0.12720 25+：$0.11936 100+：$0.10720 250+：$0.09946 500+：$0.09389 1000+：$0.08860 2500+：$0.08217 |
|
Datasheet | PTS526 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Flush | Surface Mount | 0.80mm | - | Top Actuated | Gull Wing | 4.80mm x 4.80mm | Non-Illuminated | - | - | 160gf | IP40 | - | -40°C ~ 85°C |
|
|
PTS526SK15SMTR2 LFSSWITCH TACTILE SPST-NO 0.05A 12V |
128,266 | - |
|
Datasheet | PTS526 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 1.50mm | - | Top Actuated | Gull Wing | 5.20mm x 5.20mm | Non-Illuminated | - | - | 260gf | IP40 | - | -40°C ~ 85°C |
|
|
PTS526SM15SMTR2 LFSSWITCH TACTILE SPST-NO 0.05A 12V |
156,127 |
1+：$0.12800 10+：$0.11520 25+：$0.10816 100+：$0.09736 250+：$0.09037 500+：$0.08530 1000+：$0.08049 |
|
Datasheet | PTS526 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 1.50mm | - | Top Actuated | Gull Wing | 5.20mm x 5.20mm | Non-Illuminated | - | - | 160gf | IP40 | - | -40°C ~ 85°C |
|
|
PTS526SMG15SMTR2 LFSSWITCH TACTILE SPST-NO 0.05A 12V |
45,481 |
1+：$0.14400 10+：$0.12480 25+：$0.11712 100+：$0.10528 250+：$0.09773 500+：$0.09222 1000+：$0.08704 |
|
Datasheet | PTS526 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 1.50mm | - | Top Actuated | Gull Wing | 5.20mm x 5.20mm | Non-Illuminated | - | - | 160gf | IP40 | - | -40°C ~ 85°C |
|
|
PTS636SM43SMTR LFSSWITCH TACTILE SPST-NO 0.05A 12V |
37,860 |
1+：$0.18400 10+：$0.15760 25+：$0.14720 100+：$0.13224 250+：$0.12266 500+：$0.11576 |
|
Datasheet | PTS636 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount | 4.30mm | - | Top Actuated | Gull Wing | 6.00mm x 3.50mm | Non-Illuminated | - | - | 180gf | IP40 | - | -40°C ~ 90°C |
|
PTS636 SM50 SMTR LFSSWITCH TACTILE SPST-NO 0.05A 12V |
12,560 | - |
|
Datasheet | PTS636 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount | 5.00mm | - | Top Actuated | Gull Wing | 6.00mm x 3.50mm | Non-Illuminated | - | - | 180gf | IP40 | - | -40°C ~ 90°C |
|
|
PTS636SM50JSMTR LFSSWITCH TACTILE SPST-NO 0.05A 12V |
71,595 | - |
|
Datasheet | PTS636 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount | 5.00mm | - | Top Actuated | J Lead | 6.00mm x 3.50mm | Non-Illuminated | - | - | 180gf | IP40 | - | -40°C ~ 90°C |
|
|
PTS815SJM250SMTRLFSSWITCH TACTILE SPST-NO 0.05A 12V |
15,346 | - |
|
Datasheet | PTS815 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Oval Button | Surface Mount | 2.50mm | - | Top Actuated | J Lead | 4.20mm x 3.20mm | Non-Illuminated | - | - | 180gf | IP40 | - | -40°C ~ 90°C |
|
|
PTS815SJK250SMTR LFSSWITCH TACTILE SPST-NO 0.05A 12V |
12,078 | - |
|
Datasheet | PTS815 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Oval Button | Surface Mount | 2.50mm | - | Top Actuated | J Lead | 4.20mm x 3.20mm | Non-Illuminated | - | - | 250gf | IP40 | - | -40°C ~ 90°C |
|

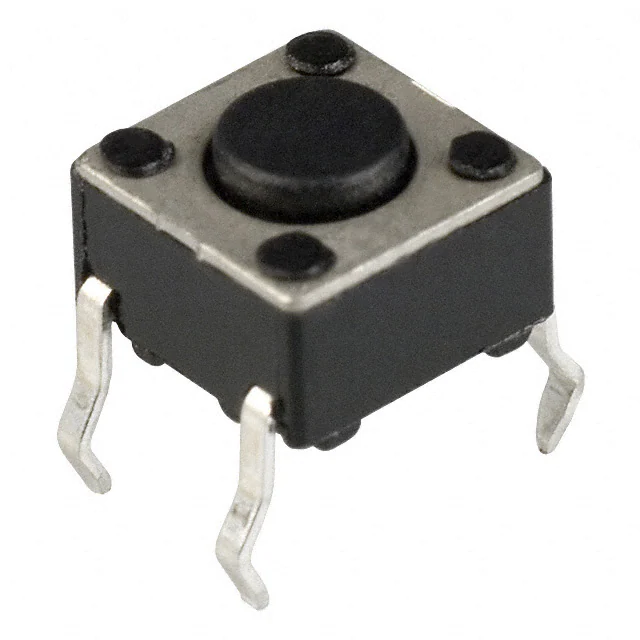

PTS645SL43-2 LFSSWITCH TACTILE SPST-NO 0.05A 12V |
39,135 |
1+：$0.21600 10+：$0.18720 25+：$0.17504 100+：$0.15696 250+：$0.14550 500+：$0.13730 2000+：$0.12250 4000+：$0.11598 6000+：$0.11247 |
|
Datasheet | PTS645 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 130gf | - | - | -40°C ~ 85°C |
