Tactile Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B3F-1005SWITCH TACTILE SPST-NO 0.05A 24V |
7,812 |
1+：$0.32800 10+：$0.28320 25+：$0.26432 100+：$0.23632 250+：$0.21898 500+：$0.20666 1500+：$0.18892 3000+：$0.17895 6000+：$0.16996 |
|
Datasheet | B3F | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -25°C ~ 70°C |
|
PTS645VM58-2 LFSSWITCH TACTILE SPST-NO 0.05A 12V |
146,527 | - |
|
Datasheet | PTS645 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 5.85mm | Side Actuated | PC Pin | 7.50mm x 7.10mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
EVQ-Q2F02WSWITCH TACTILE SPST-NO 0.02A 15V |
55,140 | - |
|
Datasheet | EVQQ2 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 2.50mm | - | Top Actuated | J Lead | 6.50mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -40°C ~ 85°C |
|
PTS645VM31-2 LFSSWITCH TACTILE SPST-NO 0.05A 12V |
44,792 | - |
|
Datasheet | PTS645 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 3.15mm | Side Actuated | PC Pin | 7.50mm x 7.10mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|

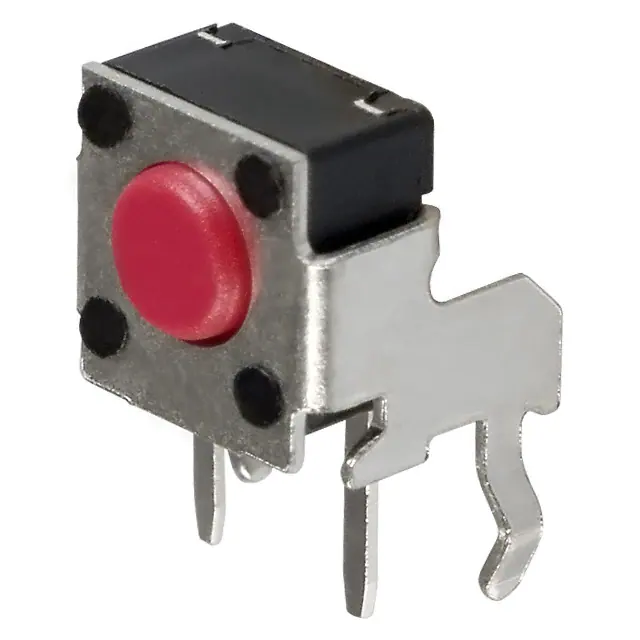

TL1105WF250QSWITCH TACTILE SPST-NO 0.05A 12V |
44,013 | - |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 3.15mm | Side Actuated | PC Pin | 7.10mm x 6.55mm | Non-Illuminated | - | - | 250gf | - | - | -20°C ~ 70°C |
|
222KJVAARSWITCH TACTILE SPST-NO 0.05A 32V |
34,350 | - |
|
Datasheet | 222K | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Surface Mount | 5.20mm | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | - | - | 200gf | IP67 - Dust Tight, Waterproof | Tactile Feedback | -40°C ~ 85°C |
|
431481031816SWITCH TACTILE SPST-NO 0.05A 12V |
16,941 | - |
|
Datasheet | WS-TASV | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 3.10mm | - | Top Actuated | SMD (SMT) Tab | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | Washable | -40°C ~ 85°C |
|
EVP-BL9A2B000SWITCH TACTILE SPST-NO 0.02A 15V |
14,993 | - |
|
Datasheet | EVPBL | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 0.57mm | - | Top Actuated | SMD (SMT) Tab | 2.80mm x 1.90mm | Non-Illuminated | - | - | 225gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
TL59NF160QSWITCH TACTILE SPST-NO 0.05A 12V |
9,264 | - |
|
Datasheet | TL59 | Cut Tape (CT) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
|
431471031826SWITCH TACTILE SPST-NO 0.05A 12V |
8,451 | - |
|
Datasheet | WS-TASV | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 3.10mm | - | Top Actuated | SMD (SMT) Tab | 6.20mm x 6.20mm | Non-Illuminated | - | - | 260gf | - | Washable | -40°C ~ 85°C |
|
1301.9501SWITCH TACTILE SPST-NO 0.05A 12V |
7,686 | - |
|
Datasheet | LPV | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | 3.85mm | - | Side Actuated | PC Pin | 7.50mm x 7.00mm | Non-Illuminated | - | - | 160gf | IP40 | Tactile Feedback | -20°C ~ 70°C |
|

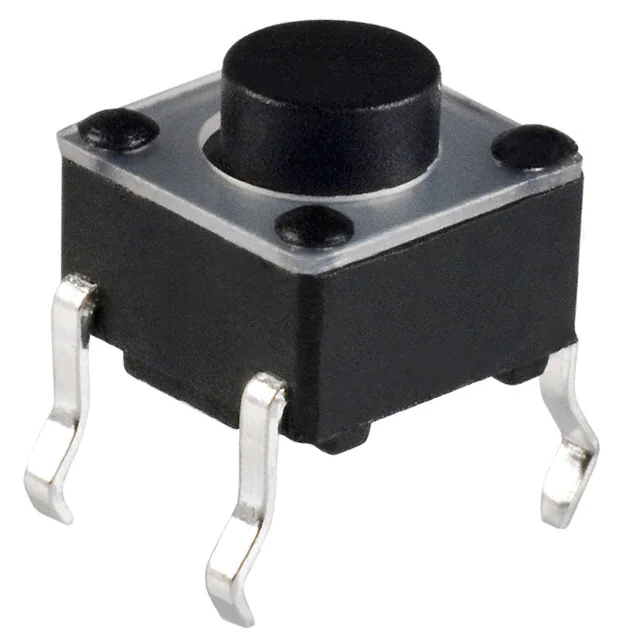

TL1105AF160QSWITCH TACTILE SPST-NO 0.05A 12V |
6,589 | - |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 5.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
TL1105MF160QSWITCH TACTILE SPST-NO 0.05A 12V |
6,405 | - |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 6.85mm | Side Actuated | PC Pin | 7.10mm x 6.55mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
LS12W3-TSWITCH TACTILE SPST-NO 0.02A 12V |
5,189 | - |
|
Datasheet | LS12 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 12VDC | Rectangular Button | Surface Mount, Right Angle | - | 2.85mm | Side Actuated | SMD (SMT) Tab | 3.90mm x 1.95mm | Non-Illuminated | - | - | 204gf | - | - | - |
|
EVQ-P7K01PSWITCH TACTILE SPST-NO 0.05A 12V |
4,192 | - |
|
Datasheet | EVQP7 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount, Right Angle | - | - | Side Actuated | J Lead | 4.30mm x 2.90mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
1301.9503SWITCH TACTILE SPST-NO 0.05A 12V |
3,415 | - |
|
Datasheet | LPV | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | 6.15mm | - | Side Actuated | PC Pin | 7.40mm x 7.00mm | Non-Illuminated | - | - | 160gf | IP40 | Tactile Feedback | -20°C ~ 70°C |
|
EVP-BT1A4A000SWITCH TACTILE SPST-NO 0.02A 15V |
2,488 | - |
|
Datasheet | EVPBT | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | SMD (SMT) Tab | 6.50mm x 6.00mm | Non-Illuminated | - | - | 50gf | - | - | -40°C ~ 85°C |
|
431256058716SWITCH TACTILE SPST-NO 0.05A 12V |
2,021 | - |
|
Datasheet | WS-TATU | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 5.85mm | Side Actuated | PC Pin | 7.40mm x 6.55mm | Non-Illuminated | - | - | 160gf | - | Grounding Pin | -40°C ~ 85°C |
|
TS08-66-43-BK-160-SMT-67SWITCH TACTILE SPST-NO 0.05A 12V |
1,935 | - |
|
Datasheet | TS08 | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | Gull Wing | 6.10mm x 6.10mm | Non-Illuminated | - | - | 160gf | IP67 - Dust Tight, Waterproof | - | -30°C ~ 80°C |
|
1301.9502SWITCH TACTILE SPST-NO 0.05A 12V |
1,312 | - |
|
Datasheet | LPV | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 11.35mm | Side Actuated | PC Pin | 7.50mm x 7.00mm | Non-Illuminated | - | - | 160gf | IP40 | Tactile Feedback | -20°C ~ 70°C |
