Tactile Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1571563-6SWITCH TACTILE SPST-NO 0.05A 24V |
3,388 | - |
|
Datasheet | FSMJSMA | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 13.00mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -35°C ~ 85°C |
|
TL3301EF100QGSWITCH TACTILE SPST-NO 0.05A 12V |
137,187 | - |
|
Datasheet | TL3301 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 7.30mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -40°C ~ 85°C |
|
KSC721J LFSSWITCH TACTILE SPST-NO 0.05A 32V |
89,889 | - |
|
Datasheet | KSC | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | - | - | 225gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
TL3301NF160QJSWITCH TACTILE SPST-NO 0.05A 12V |
13,815 | - |
|
Datasheet | TL3301 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | J Lead | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
TL3301CF160QGSWITCH TACTILE SPST-NO 0.05A 12V |
12,270 | - |
|
Datasheet | TL3301 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 8.00mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
MSLPT5252BG3MTRSWITCH TACTILE SPST-NO 0.05A 12V |
9,337 | - |
|
Datasheet | LPT | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 1.50mm | - | Top Actuated | Gull Wing | 5.20mm x 5.20mm | Non-Illuminated | - | - | 160gf | - | - | -25°C ~ 70°C |
|
KSC341G LFSSWITCH TACTILE SPST-NO 0.05A 32V |
5,764 | - |
|
Datasheet | KSC | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Surface Mount | 3.50mm | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | - | - | 300gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
EVP-AAM02WSWITCH TACTILE SPST-NO 0.02A 15V |
3,653 | - |
|
Datasheet | EVPAA | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Rectangular Button | Surface Mount | 1.70mm | - | Top Actuated | J Lead | 3.50mm x 2.90mm | Non-Illuminated | - | - | 350gf | - | - | -40°C ~ 85°C |
|
PTS845VN20PSMTR4 LFSSWITCH TACTILE SPST-NO 0.05A 12V |
2,655 | - |
|
Datasheet | PTS845 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount, Right Angle | - | 3.40mm | Side Actuated | Gull Wing | 4.50mm x 2.55mm | Non-Illuminated | - | - | 80gf | - | - | -40°C ~ 90°C |
|
B3F-6052SWITCH TACTILE SPST-NO 0.05A 24V |
2,204 | - |
|
Datasheet | B3F | Cut Tape (CT) | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 7.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 150gf | - | - | -25°C ~ 70°C |
|
TL3301SPF160QJSWITCH TACTILE SPST-NO 0.05A 12V |
2,090 | - |
|
Datasheet | TL3301 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 7.50mm | - | Top Actuated | J Lead | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
TL3301PF160QJSWITCH TACTILE SPST-NO 0.05A 12V |
1,654 | - |
|
Datasheet | TL3301 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 8.50mm | - | Top Actuated | J Lead | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
EVQ-P2P02MSWITCH TACTILE SPST-NO 0.02A 15V |
1,037 | - |
|
Datasheet | EVQP2 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Rectangular Button | Surface Mount | 2.10mm | - | Top Actuated | J Lead | 4.70mm x 3.50mm | Non-Illuminated | - | - | 100gf | - | Grounding Pin | -40°C ~ 85°C |
|
EVP-BB4A9B000SWITCH TACTILE SPST-NO 0.02A 15V |
32,708 | - |
|
Datasheet | EVPBB | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 0.53mm | - | Top Actuated | Gull Wing | 2.60mm x 1.60mm | Non-Illuminated | - | - | 240gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
434331013822SWITCH TACTILE SPST-NO 0.05A 12V |
17,716 | - |
|
Datasheet | WS-TASU | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount, Right Angle | - | - | Side Actuated | SMD (SMT) Tab | 3.50mm x 2.90mm | Non-Illuminated | - | - | 220gf | - | White Actuator | -40°C ~ 85°C |
|
EVP-AAU02QSWITCH TACTILE SPST-NO 0.02A 15V |
15,409 | - |
|
Datasheet | EVPAA | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Rectangular Button | Surface Mount | 1.70mm | - | Top Actuated | J Lead | 3.50mm x 2.90mm | Non-Illuminated | - | - | 700gf | - | - | -40°C ~ 85°C |
|
FSM102SWITCH TACTILE SPST-NO 0.05A 24V |
2,953 | - |
|
Datasheet | FSM100 ~ 104 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 12.00mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 160gf | - | - | -35°C ~ 85°C |
|

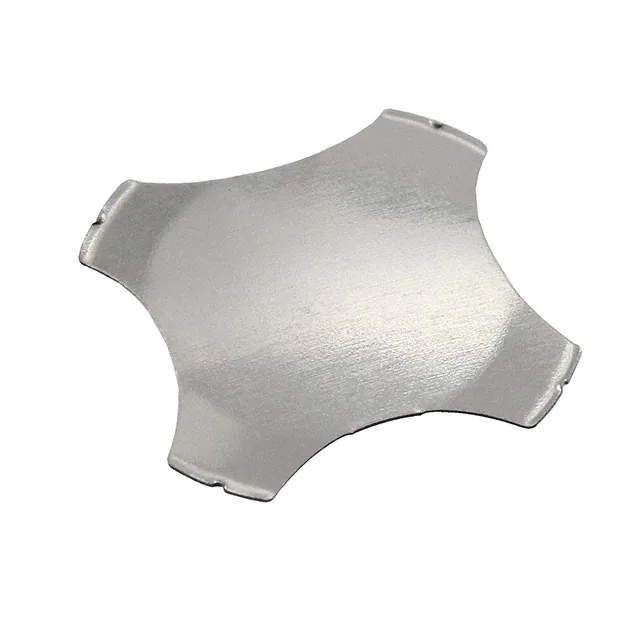

5134TRSWITCH TACT SPST-NO 0.012A 24V |
104,470 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.012A @ 24VDC | Snap Dome | Surface Mount | 0.50mm | - | Top Actuated | SMD (SMT) Tab | 7.00mm x 7.00mm | Non-Illuminated | - | - | 280gf | - | Flex Membrane | -40°C ~ 105°C |
|
EVQ-PUM02KSWITCH TACTILE SPST-NO 0.05A 12V |
11,611 | - |
|
Datasheet | EVQPU | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount, Right Angle | - | - | Side Actuated | J Lead | 5.50mm x 3.50mm | Non-Illuminated | - | - | 160gf | - | Board Guide | -20°C ~ 70°C |
|
EVQ-PUJ02KSWITCH TACTILE SPST-NO 0.05A 12V |
9,881 | - |
|
Datasheet | EVQPU | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount, Right Angle | - | - | Side Actuated | Gull Wing | 6.40mm x 3.50mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
