Tactile Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PTS841 ESD GKP SMTR LFSSWITCH TACTILE SPST-NO 0.05A 12V |
3,006 | - |
|
Datasheet | PTS841 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount, Right Angle | - | - | Side Actuated | Gull Wing | 3.60mm x 3.50mm | Non-Illuminated | - | - | 250gf | - | Board Guide, Grounding Pin | -40°C ~ 85°C |
|
434353045816SWITCH TACTILE SPST-NO 0.05A 12V |
2,126 | - |
|
Datasheet | WS-TASU | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount, Right Angle | - | - | Side Actuated | J Lead | 5.50mm x 3.50mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
MSLPT5252BL3MTRSWITCH TACTILE SPST-NO 0.05A 12V |
9,212 | - |
|
Datasheet | LPT | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 1.50mm | - | Top Actuated | J Lead | 5.20mm x 5.20mm | Non-Illuminated | - | - | 160gf | - | - | -25°C ~ 70°C |
|
TL6800AF260QJSWITCH TACTILE SPST-NO 0.05A 12V |
4,953 | - |
|
Datasheet | TL6800 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 3.10mm | - | Top Actuated | J Lead | 6.30mm x 6.20mm | Non-Illuminated | - | - | 260gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 90°C |
|
|
LS75C4D4-TSWITCH TACTILE SPST-NO 0.02A 12V |
4,830 | - |
|
Datasheet | LS75 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 12VDC | Standard | Surface Mount | 0.50mm | - | Top Actuated | SMD (SMT) Tab | 2.80mm x 1.90mm | Non-Illuminated | - | - | 245gf | IP67 - Dust Tight, Waterproof | - | - |
|
TL3301TF160QJTUBESWITCH TACTILE SPST-NO 0.05A 12V |
1,856 | - |
|
Datasheet | TL3301 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 7.50mm | - | Top Actuated | J Lead | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
TL52AF260QSWITCH TACTILE SPST-NO 0.05A 12V |
1,449 | - |
|
Datasheet | TL52 | Cut Tape (CT) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 13.00mm | - | Top Actuated | PC Pin | 8.00mm x 8.00mm | Non-Illuminated | - | - | 260gf | IP67 - Dust Tight, Waterproof | - | -25°C ~ 85°C |
|
CS1207SMF250SWITCH TACTILE SPST-NO 0.05A 50V |
7,896 | - |
|
Datasheet | CS1207 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Rectangular Button | Surface Mount, Right Angle | - | 4.50mm | Side Actuated | Gull Wing | 4.70mm x 3.50mm | Non-Illuminated | - | - | 250gf | - | - | -40°C ~ 85°C |
|
MJTP1236DSWITCH TACTILE SPST-NO 0.05A 12V |
3,708 | - |
|
Datasheet | MJTP | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 11.90mm | Side Actuated | PC Pin | 7.40mm x 7.20mm | Non-Illuminated | - | - | 160gf | - | Tactile Feedback | -20°C ~ 70°C |
|
|
ADTSM66SVSWITCH TACTILE SPST-NO 0.05A 12V |
3,250 | - |
|
Datasheet | ADTS | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 13.00mm | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | - | - | 320gf | - | Tactile Feedback | -25°C ~ 70°C |
|
|
ADTSA62NVSWITCH TACTILE SPST-NO 0.05A 12V |
2,891 | - |
|
Datasheet | ADTS | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 3.85mm | Side Actuated | PC Pin | 7.40mm x 6.55mm | Non-Illuminated | - | - | 160gf | - | - | -25°C ~ 70°C |
|
MSLPT5252CG1BTRSWITCH TACTILE SPST-NO 0.05A 12V |
1,710 | - |
|
Datasheet | LPT | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 2.00mm | - | Top Actuated | Gull Wing | 5.20mm x 5.20mm | Non-Illuminated | - | - | 70gf | - | - | -25°C ~ 70°C |
|
|
ADTS31NVSWITCH TACTILE SPST-NO 0.05A 12V |
1,570 | - |
|
Datasheet | ADTS3 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.00mm x 3.50mm | Non-Illuminated | - | - | 160gf | - | Tactile Feedback | -25°C ~ 70°C |
|
|
ADTS65RVSWITCH TACTILE SPST-NO 0.05A 12V |
1,296 | - |
|
Datasheet | ADTS | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 9.50mm | - | Top Actuated | PC Pin | 6.20mm x 6.20mm | Non-Illuminated | - | - | 260gf | - | Tactile Feedback | -25°C ~ 70°C |
|
TL3301NF260QJSWITCH TACTILE SPST-NO 0.05A 12V |
15,309 | - |
|
Datasheet | TL3301 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | J Lead | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
|
TL3301DF260QGSWITCH TACTILE SPST-NO 0.05A 12V |
6,670 | - |
|
Datasheet | TL3301 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 13.00mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
|
|
MCSLPT4644B2TRSWITCH TACTILE SPST-NO 0.05A 12V |
2,986 | - |
|
Datasheet | LPT | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Flush | Surface Mount | 0.55mm | - | Top Actuated | J Lead | 4.60mm x 4.40mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
EVQ-PVW05KSWITCH TACTILE SPST-NO 0.05A 12V |
2,461 | - |
|
Datasheet | EVQPV | Cut Tape (CT) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 5.00mm | - | Top Actuated | PC Pin | 6.10mm x 6.00mm | Non-Illuminated | - | - | 350gf | - | - | -30°C ~ 85°C |
|
EVP-0AFB65SWITCH TACTILE SPST-NO 0.02A 15V |
11,437 | - |
|
Datasheet | EVP0A | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 0.65mm | - | Top Actuated | J Lead | 3.00mm x 2.60mm | Non-Illuminated | - | - | 163gf | - | - | -40°C ~ 85°C |
|

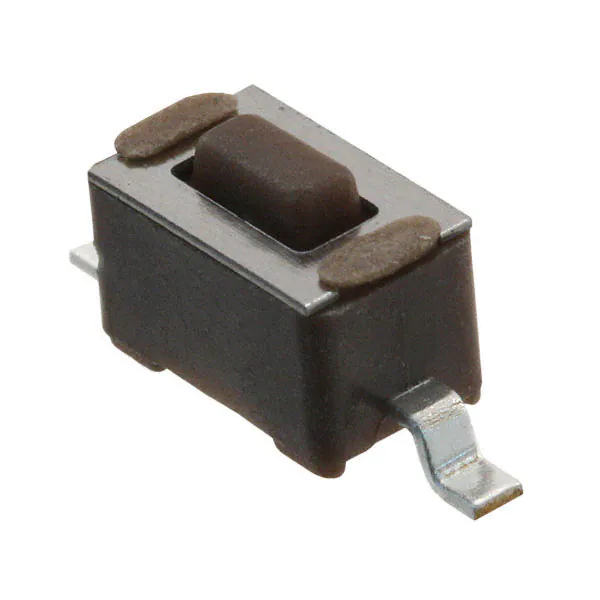

TL3302AF130QGSWITCH TACTILE SPST-NO 0.05A 12V |
3,881 | - |
|
Datasheet | TL3302 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount | 4.30mm | - | Top Actuated | Gull Wing | 6.00mm x 3.50mm | Non-Illuminated | - | - | 130gf | - | Tactile Feedback | -20°C ~ 70°C |
