Tactile Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B3S-1102PSWITCH TACTILE SPST-NO 0.05A 24V |
4,286 | - |
|
Datasheet | B3S | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | Gull Wing | 6.60mm x 6.00mm | Non-Illuminated | - | - | 230gf | IP67 - Dust Tight, Waterproof | Grounding Pin, Sealed - Fully | -25°C ~ 70°C |
|

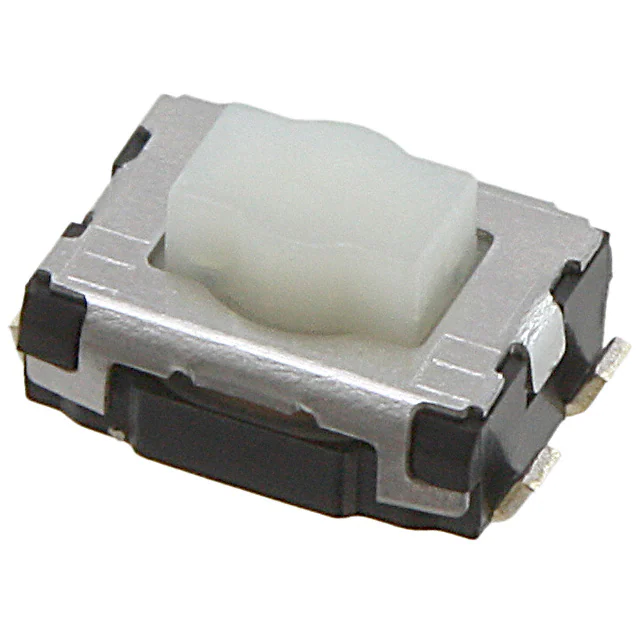

EVQ-P9P02WSWITCH TACTILE SPST-NO 0.02A 15V |
9,353 | - |
|
Datasheet | EVQP9 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Rectangular Button | Surface Mount | 2.50mm | - | Top Actuated | J Lead | 4.70mm x 3.50mm | Non-Illuminated | - | - | 500gf | - | - | -40°C ~ 85°C |
|
EVP-AAR02QSWITCH TACTILE SPST-NO 0.02A 15V |
1,171 | - |
|
Datasheet | EVPAA | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Rectangular Button | Surface Mount | 1.70mm | - | Top Actuated | J Lead | 3.50mm x 2.90mm | Non-Illuminated | - | - | 500gf | - | Grounding Pin | -40°C ~ 85°C |
|

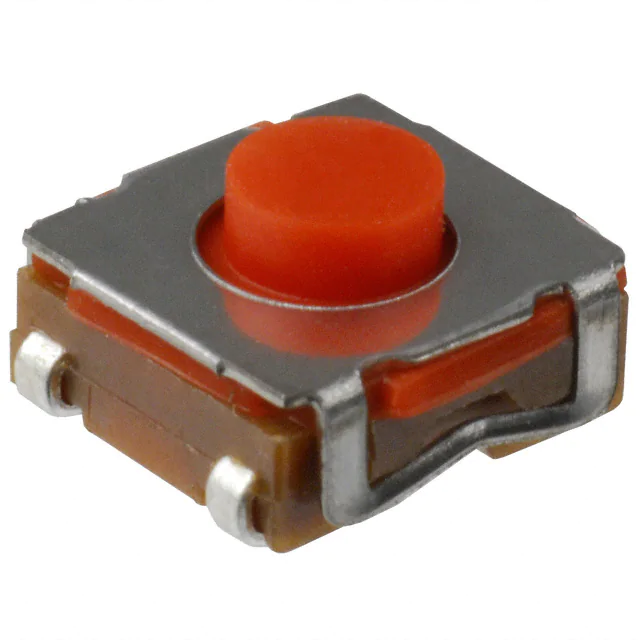

TL3304AF260QJSWITCH TACTILE SPST-NO 0.05A 50V |
46,960 | - |
|
Datasheet | TL3304 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Standard | Surface Mount | 3.40mm | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | - | - | 260gf | - | - | -20°C ~ 70°C |
|

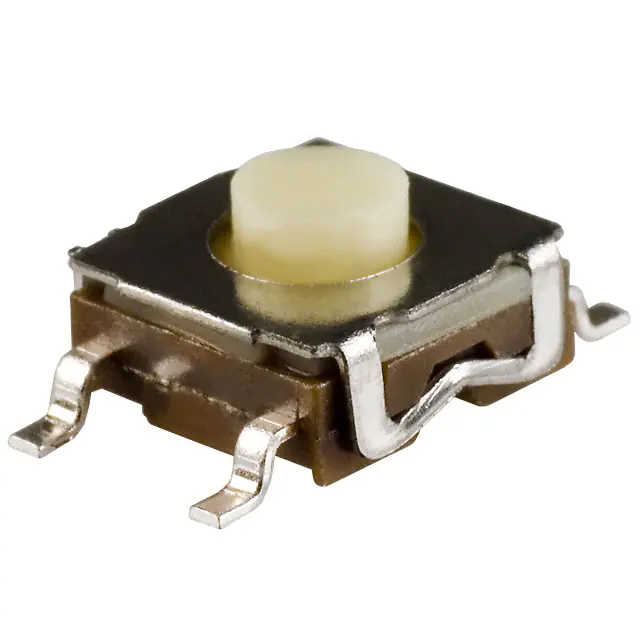

TL3304AF160QGSWITCH TACTILE SPST-NO 0.05A 50V |
18,890 | - |
|
Datasheet | TL3304 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Standard | Surface Mount | 3.40mm | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
KSL0V511 LFTRSWITCH TACTILE SPST-NO 0.05A 32V |
7,687 | - |
|
Datasheet | KSL | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Through Hole, Right Angle | - | 8.53mm | Side Actuated | PC Pin | 8.00mm x 8.00mm | Non-Illuminated | - | - | 500gf | IP60 - Dust Tight | - | -40°C ~ 85°C |
|

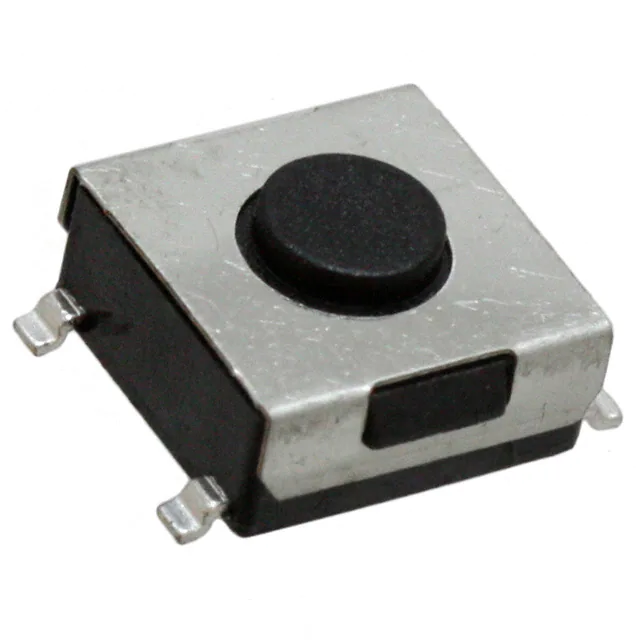

TL3303F260QGSWITCH TACTILE SPST-NO 0.05A 12V |
7,543 | - |
|
Datasheet | TL3303 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 3.10mm | - | Top Actuated | Gull Wing | 6.20mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -20°C ~ 70°C |
|

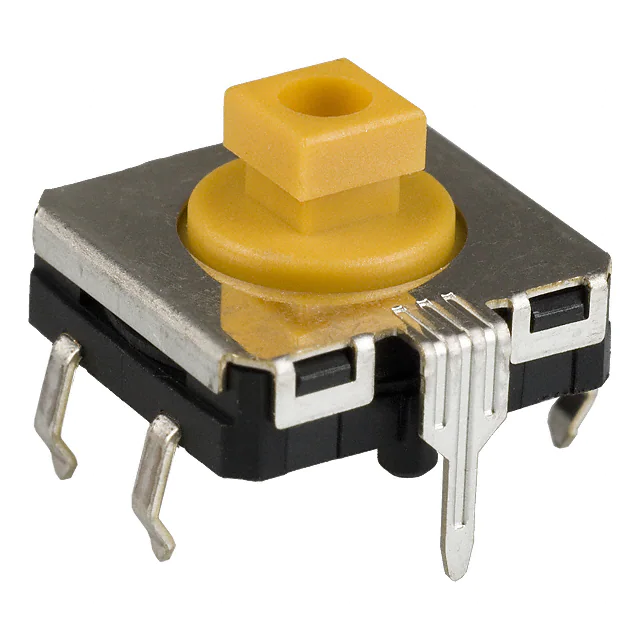

B3W-4155SWITCH TACTILE SPST-NO 0.05A 24V |
3,921 | - |
|
Datasheet | B3W | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 7.30mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 350gf | IP67 - Dust Tight, Waterproof | - | -25°C ~ 70°C |
|
USLPT3026EL1TRSWITCH TACTILE SPST-NO 0.02A 15V |
21,242 | - |
|
Datasheet | LPT | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 0.65mm | - | Top Actuated | J Lead | 3.00mm x 2.60mm | Non-Illuminated | - | - | 100gf | - | - | -40°C ~ 85°C |
|
TL6700AF260QGSWITCH TACTILE SPST-NO 0.05A 12V |
16,508 | - |
|
Datasheet | TL6700 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 3.40mm | - | Top Actuated | Gull Wing | 6.90mm x 6.20mm | Non-Illuminated | - | - | 260gf | - | Process Sealed | -20°C ~ 70°C |
|
KSA0V411 LFTRSWITCH TACTILE SPST-NO 0.05A 32V |
12,208 | - |
|
Datasheet | KSA | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Through Hole, Right Angle | - | 3.23mm | Side Actuated | PC Pin | 8.00mm x 8.00mm | Non-Illuminated | - | - | 300gf | IP60 - Dust Tight | - | -40°C ~ 90°C |
|
EVQ-P9P02MSWITCH TACTILE SPST-NO 0.02A 15V |
9,627 | - |
|
Datasheet | EVQP9 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Rectangular Button | Surface Mount | 2.10mm | - | Top Actuated | J Lead | 4.70mm x 3.50mm | Non-Illuminated | - | - | 500gf | - | - | -40°C ~ 85°C |
|
EVP-AFFG65SWITCH TACTILE SPST-NO 0.02A 15V |
3,759 | - |
|
Datasheet | EVPAF | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 0.65mm | - | Top Actuated | J Lead | 3.00mm x 2.60mm | Non-Illuminated | - | - | 163gf | - | - | -40°C ~ 85°C |
|
PTS820J15KPSMTR LFSSWITCH TACTILE SPST-NO 0.05A 12V |
29,604 | - |
|
Datasheet | PTS820 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 1.50mm | - | Top Actuated | J Lead | 3.90mm x 2.90mm | Non-Illuminated | - | - | 250gf | - | Board Guide | -40°C ~ 85°C |
|

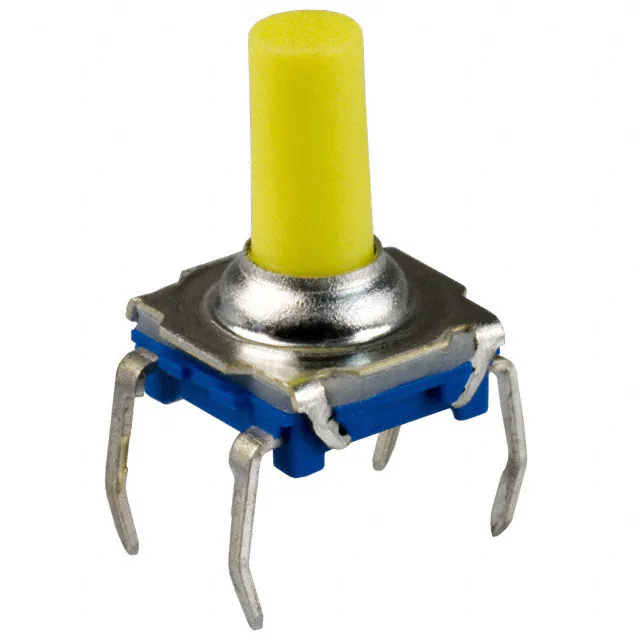

KSL0M511 LFTRSWITCH TACTILE SPST-NO 0.05A 32V |
8,660 | - |
|
Datasheet | KSL | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Through Hole | 9.90mm | - | Top Actuated | PC Pin | 7.40mm x 7.40mm | Non-Illuminated | - | - | 500gf | IP60 - Dust Tight | - | -40°C ~ 90°C |
|
B3U-3100PM-BSWITCH TACTILE SPST-NO 0.05A 12V |
3,239 | - |
|
Datasheet | B3U | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount, Right Angle | - | - | Side Actuated | SMD (SMT) Tab | 4.00mm x 2.50mm | Non-Illuminated | - | - | 162gf | Dust Proof | Grounding Pin | -25°C ~ 70°C |
|
|
SBH-01AMT74NSWITCH TACTILE SPST-NO 0.1A 12V |
1,974 | - |
|
Datasheet | SBH | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.1A @ 12VDC | Snap Dome | Surface Mount | - | - | Top Actuated | Circular Contact | - | Non-Illuminated | - | - | 163gf | - | - | -20°C ~ 80°C |
|
KSA0M331 LFTRSWITCH TACTILE SPST-NO 0.01A 32V |
1,346 | - |
|
Datasheet | KSA | Bulk | Active | SPST-NO | Off-Mom | 0.01A @ 32VDC | Standard | Through Hole | 4.70mm | - | Top Actuated | PC Pin | 7.40mm x 7.40mm | Non-Illuminated | - | - | 130gf | IP60 - Dust Tight | - | -40°C ~ 125°C |
|

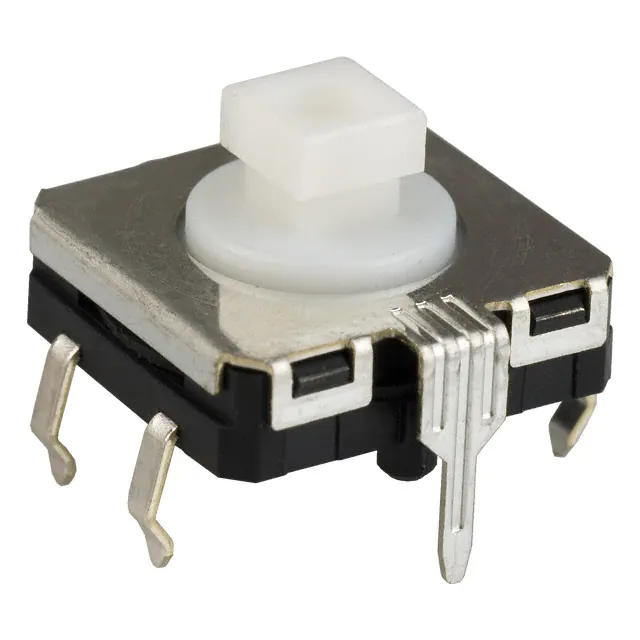

B3W-4150SWITCH TACTILE SPST-NO 0.05A 24V |
9,464 | - |
|
Datasheet | B3W | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 7.30mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 200gf | IP67 - Dust Tight, Waterproof | - | -25°C ~ 70°C |
|
ILS TB180 30SWITCH TACTILE SPST-NO 0.1A 30V |
226 | - |
|
Datasheet | ILS | Bulk | Active | SPST-NO | Off-Mom | 0.1A @ 30VDC | Plunger for Cap | Through Hole | 9.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Illuminated | LED, Green/Yellow | 2.3 VDC | 180gf | - | - | -40°C ~ 85°C |
