Through Hole Resistors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B20J50KRES 50K OHM 5% 20W AXIAL |
3,330 | - |
|
Datasheet | Brown Devil® 200 | Bulk | Active | 50 kOhms | ±5% | 20W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | - | 0.437" Dia x 2.000" L (11.11mm x 50.80mm) | - | 2 | - |
|
95J7K05W 7K0 OHMS VIT MOLD 5% |
1,741 | - |
|
Datasheet | 90 | Box | Active | 7 kOhms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.264" Dia x 0.969" L (6.70mm x 24.60mm) | - | 2 | - |
|
90J10KRES 10K OHM 5% 11W AXIAL |
4,889 | - |
|
Datasheet | 90 | Bulk | Active | 10 kOhms | ±5% | 11W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.343" Dia x 1.811" L (8.70mm x 46.00mm) | - | 2 | - |
|
91J820RES 820 OHM 5% 1.5W AXIAL |
2,040 | - |
|
Datasheet | 90 | Bulk | Active | 820 Ohms | ±5% | 1.5W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.142" Dia x 0.453" L (3.60mm x 11.50mm) | - | 2 | - |
|
91J7501.5W 750 OHMS VIT MOLD 5% |
2,294 | - |
|
Datasheet | 90 | Box | Active | 750 Ohms | ±5% | 1.5W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.142" Dia x 0.453" L (3.60mm x 11.50mm) | - | 2 | - |
|
SM108031005FERESISTOR |
1,513 | - |
|
Datasheet | Super Mox | Bulk | Active | 10 MOhms | ±1% | 2.5W | Thick Film | Current Sense, High Voltage, Non-Inductive | 50ppm/°C | -55°C ~ 110°C | Radial | 2.080" L x 0.100" W (52.83mm x 2.54mm) | - | 2 | - |
|
91J1001.5W 100 OHMS VIT MOLD 5% |
1,392 | - |
|
Datasheet | 90 | Bulk | Active | 100 Ohms | ±5% | 1.5W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.142" Dia x 0.453" L (3.60mm x 11.50mm) | - | 2 | - |
|
TP810PW4K70JERES 4.7K OHM 5% 10W RADIAL |
4,491 | - |
|
Datasheet | TP | Bulk | Active | 4.7 kOhms | ±5% | 10W | Thick Film | Non-Inductive, Pulse Withstanding | ±50ppm/°C | - | Radial Lead | 1.000" L x 0.240" W (25.40mm x 6.10mm) | 1.020" (25.91mm) | 2 | - |
|
|
TP810PW10K0JERES 10K OHM 5% 10W RADIAL |
1,928 | - |
|
Datasheet | TP | Bulk | Active | 10 kOhms | ±5% | 10W | Thick Film | Non-Inductive, Pulse Withstanding | ±50ppm/°C | - | Radial Lead | 1.000" L x 0.240" W (25.40mm x 6.10mm) | 1.020" (25.91mm) | 2 | - |
|

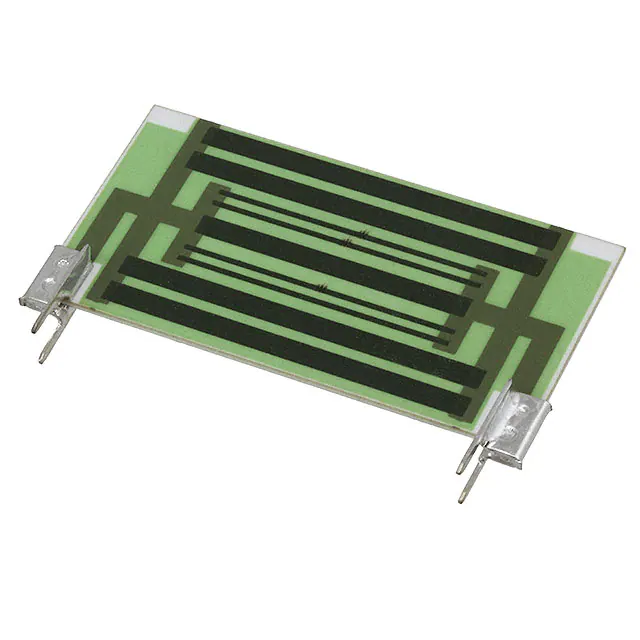

TA025PW1R50JEPOWER CHIP 25 WATT |
4,540 | - |
|
Datasheet | TA | Tray | Active | 1.5 Ohms | ±5% | 25W | Thick Film | - | ±100ppm/°C | -55°C ~ 180°C | Radial | 2.220" L x 0.240" W (56.39mm x 6.10mm) | 1.169" (29.70mm) | 4 | - |
