Through Hole Resistors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EY472KERES 4.7K OHM 10% 2.5W AXIAL |
2,498 | - |
|
Datasheet | EY | Bulk | Active | 4.7 kOhms | ±10% | 2.5W | Ceramic | Moisture Resistant | -1500/ -900ppm/°C | -40°C ~ 110°C | - | 0.370" Dia x 1.819" L (9.40mm x 46.20mm) | - | 2 | - |
|
|
EY104KERES 100K OHM 10% 2.5W AXIAL |
1,623 | - |
|
Datasheet | EY | Bulk | Active | 100 kOhms | ±10% | 2.5W | Ceramic | Moisture Resistant | -1500/ -900ppm/°C | -40°C ~ 110°C | - | 0.370" Dia x 1.819" L (9.40mm x 46.20mm) | - | 2 | - |
|
53JR10E3W 0.1 OHM SILICONE 5% |
3,621 | - |
|
Datasheet | 50 | Bulk | Active | 100 mOhms | ±5% | 3W | Wirewound | - | ±90ppm/°C | - | Axial | 0.220" Dia x 0.551" L (5.60mm x 14.00mm) | - | 2 | - |
|
53J5R0ERES 5 OHM 5% 3W AXIAL |
4,234 | - |
|
Datasheet | 50 | Bulk | Active | 5 Ohms | ±5% | 3W | Wirewound | - | ±50ppm/°C | - | Axial | 0.220" Dia x 0.551" L (5.60mm x 14.00mm) | - | 2 | - |
|
53J10KERES 10K OHM 5% 3W AXIAL |
1,308 | - |
|
Datasheet | 50 | Bulk | Active | 10 kOhms | ±5% | 3W | Wirewound | - | ±30ppm/°C | - | Axial | 0.220" Dia x 0.551" L (5.60mm x 14.00mm) | - | 2 | - |
|

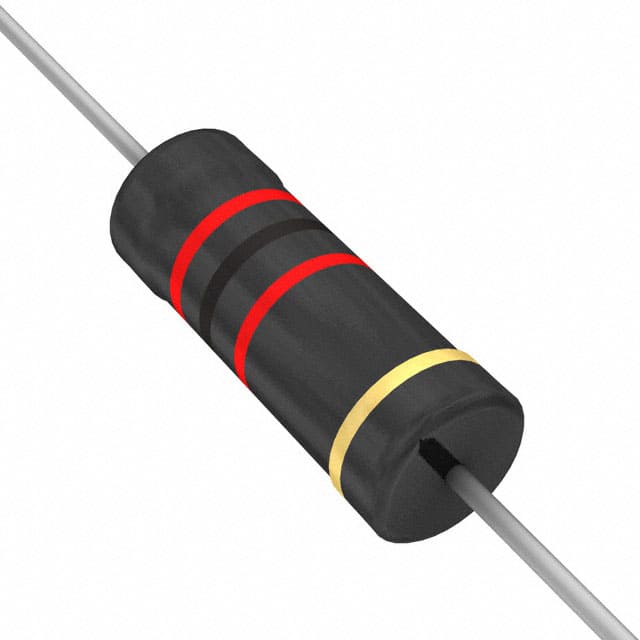

55J2K0ERES 2K OHM 5% 5W AXIAL |
4,839 | - |
|
Datasheet | 50 | Bulk | Active | 2 kOhms | ±5% | 5W | Wirewound | - | ±30ppm/°C | - | Axial | 0.315" Dia x 0.827" L (8.00mm x 21.00mm) | - | 2 | - |
|
CS5FR001E5W PRECISION CURRENT SENSE RES |
2,153 | - |
|
Datasheet | CS5 | Bulk | Active | 1 mOhms | ±1% | 5W | Metal Element | Current Sense, Non-Inductive | ±30ppm/°C | -25°C ~ 150°C | - | 1.500" L x 0.330" W (38.10mm x 8.38mm) | 0.953" (24.20mm) | 4 | - |
|
|
CS5FR004ERES 0.004 OHM 5W 1% 4SIP |
1,286 | - |
|
Datasheet | CS5 | Bulk | Active | 4 mOhms | ±1% | 5W | Metal Element | Current Sense, Non-Inductive | ±30ppm/°C | -25°C ~ 150°C | - | 1.500" L x 0.330" W (38.10mm x 8.38mm) | 0.953" (24.20mm) | 4 | - |
|
MOX400231806JRES 180M OHM 5% 3/4W AXIAL |
2,970 | - |
|
Datasheet | Mini-Mox | Bulk | Active | 180 MOhms | ±5% | 0.75W, 3/4W | Thick Film | High Voltage | 50ppm/°C | -55°C ~ 220°C | Axial | 0.165" Dia x 0.581" L (4.19mm x 14.78mm) | - | 2 | - |
|
AP851 10R JRES 10 OHM 5% 50W TO220 |
2,155 | - |
|
Datasheet | ARCOL, AP851 | Tray | Active | 10 Ohms | ±5% | 50W | Thick Film | Non-Inductive | ±100ppm/°C | -60°C ~ 150°C | TO-220 | 0.410" L x 0.125" W (10.41mm x 3.18mm) | 0.650" (16.52mm) | 2 | - |
