Thumbwheel Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Output Code | Read Out | Number of Sections | Display Characters - Height | Actuator Type | Contact Rating @ Voltage | Contact Material | Contact Finish | Mounting Type | Termination Style | End Caps | Section Width | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

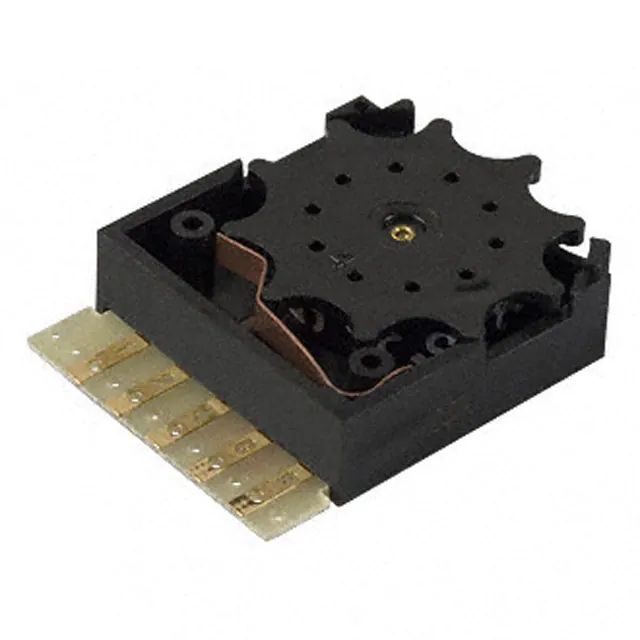

302119000SWITCH THUMB BCD 0.1A 120V |
1,301 | - |
|
Datasheet | 3 | Tray | Active | BCD | 0 ~ 9 | 1 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Screw | Card Edge/Solder Pad | Sold Separately | 0.350" (8.89mm) | - | - | -40°C ~ 65°C |
|
302119N00SWITCH THUMB BCD 0.1A 120V |
4,850 | - |
|
Datasheet | 3 | Box | Active | BCD | 0 ~ 9 | 1 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Screw | PC Pin | Sold Separately | 0.350" (8.89mm) | - | - | -40°C ~ 65°C |
|

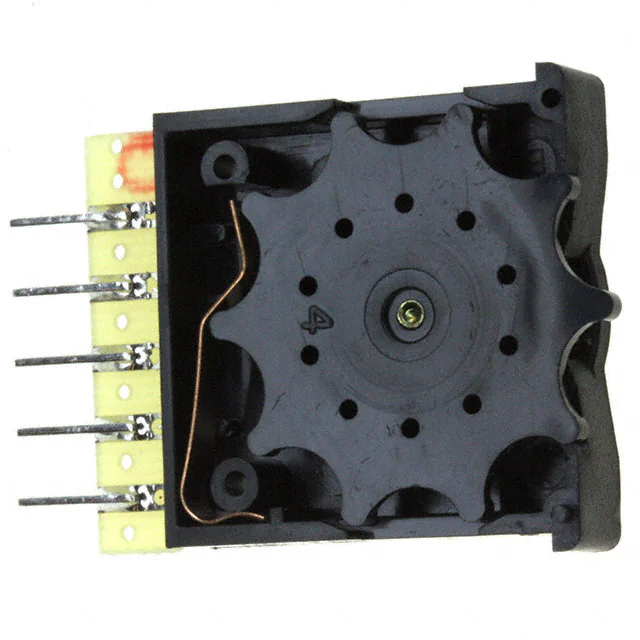

302109N00SWITCH THUMB BCD 0.1A 120V |
1,243 | - |
|
Datasheet | 3 | Box | Active | BCD | 0 ~ 9 | 1 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Snap-In | PC Pin | Sold Separately | 0.315" (8.00mm) | - | - | -40°C ~ 65°C |
|

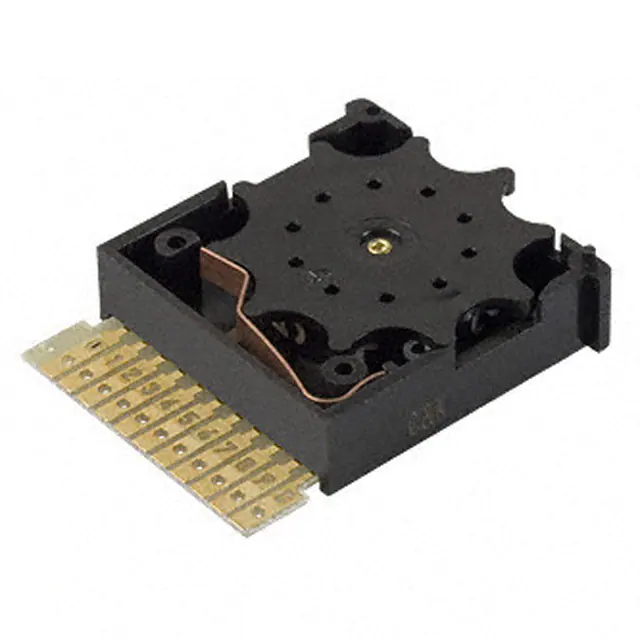

301109000SWITCH THUMB DECIMAL 0.1A 120V |
4,628 | - |
|
Datasheet | 3 | Bulk | Active | Decimal | 0 ~ 9 | 1 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.315" (8.00mm) | - | - | -40°C ~ 65°C |
|
311100000SWITCH THUMB DEC 0.1A 120V/28V |
4,360 | - |
|
Datasheet | 3 | Bulk | Obsolete | Decimal | 0 ~ 9 | 1 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Included | 0.315" (8.00mm) | Rectangular - 31.00mm x 16.28mm | - | -40°C ~ 65°C |
|
|
313110000SWITCH THUMB BCD 0.1A 120V/28V |
1,025 | - |
|
Datasheet | 3 | Bulk | Obsolete | BCD | 0 ~ 9 | 1 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Screw | Card Edge/Solder Pad | Included | 0.350" (8.89mm) | Rectangular - 25.91mm x 17.53mm | - | -40°C ~ 65°C |
|

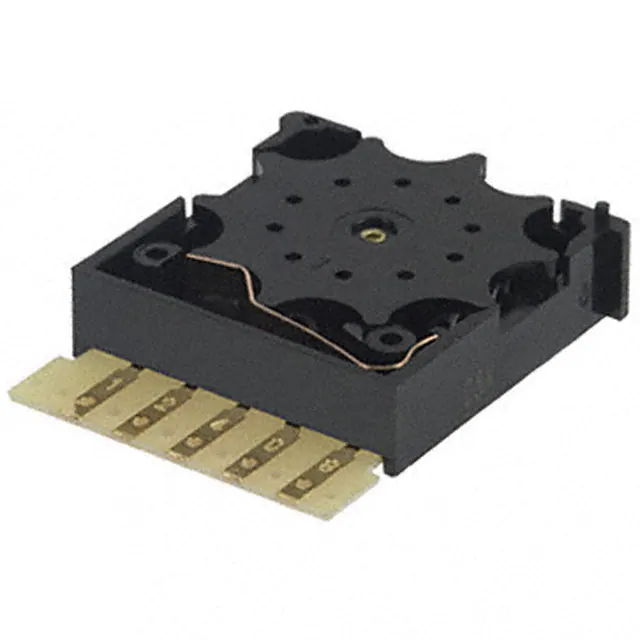

302109000SWITCH THUMB BCD 0.1A 120V |
2,113 | - |
|
Datasheet | 3 | Bulk | Active | BCD | 0 ~ 9 | 1 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.315" (8.00mm) | - | - | -40°C ~ 65°C |
|

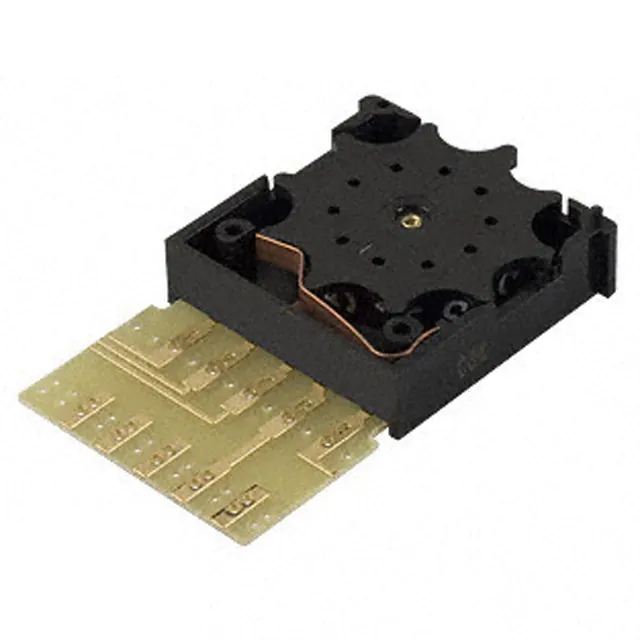

302109100SWITCH THUMB BCD 0.1A 120V |
1,448 | - |
|
Datasheet | 3 | Tray | Active | BCD | 0 ~ 9 | 1 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Snap-In | Card Edge/Solder Pad with Component Mounting | Sold Separately | 0.315" (8.00mm) | - | - | -40°C ~ 65°C |
|
313110003SWITCH THUMB BCD 0.1A 120V |
1,182 | - |
|
Datasheet | 3 | Bulk | Obsolete | BCD | 0 ~ 9 | 1 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Screw | Card Edge/Solder Pad | Included | 0.350" (8.89mm) | Rectangular - 25.91mm x 17.53mm | Dust Lens, Sealed Contacts | -40°C ~ 65°C |
|
301409103SWITCH THUMB RES DEC 0.1A 120V |
4,055 | - |
|
Datasheet | 3 | Bulk | Obsolete | Resistor Decade | 0 ~ 9 | 1 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Snap-In | Card Edge/Solder Pad with Component Mounting | Sold Separately | 0.315" (8.00mm) | - | Dust Lens, Sealed Contacts | -40°C ~ 65°C |
