Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1TL11-1LSWITCH TOGGLE SPDT 15A 125V |
2,184 | - |
|
Datasheet | TL | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 15A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
4TL1-21KSWITCH TOGGLE 4PST 15A 125V |
3,394 | - |
|
Datasheet | TL | Bulk | Active | Panel Mount | 4PST | On-Off | 15A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|

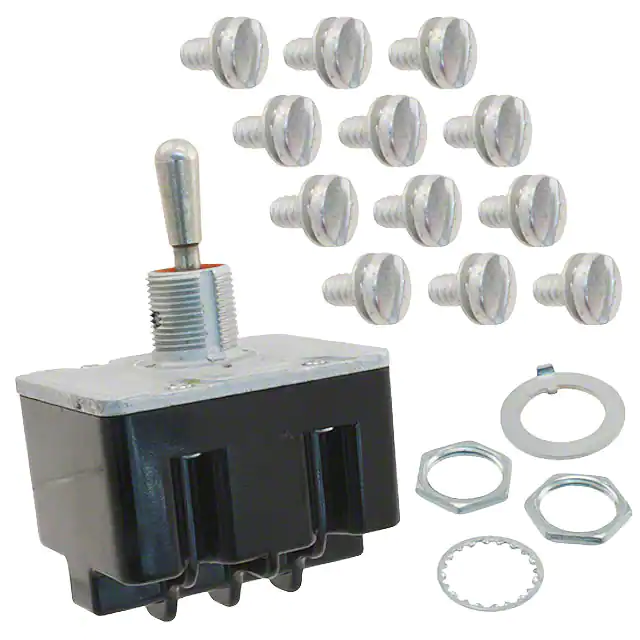

4TL1-21FSWITCH TOGGLE 4PST 15A 125V |
4,276 | - |
|
Datasheet | TL | Bulk | Active | Panel Mount | 4PST | On-Off | 15A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
4TL1-31KSWITCH TOGGLE 4PDT 15A 125V |
2,200 | - |
|
Datasheet | TL | Bulk | Active | Panel Mount | 4PDT | On-On | 15A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
101TL1-6SWITCH TOGGLE SPST-NO 10A 125V |
2,246 | - |
|
Datasheet | TL | Bulk | Active | Panel Mount | SPST-NO | Off-Mom | 10A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | IWTS | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
4TL11-1SWITCH TOGGLE 4PDT 15A 125V |
2,724 | - |
|
Datasheet | TL | Bulk | Active | Panel Mount | 4PDT | On-Off-On | 15A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
4TL1-1MSWITCH TOGGLE 4PDT 15A 125V |
1,881 | - |
|
Datasheet | TL | Bulk | Active | Panel Mount | 4PDT | On-Off-On | 15A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
4TL11-8SWITCH TOGGLE 4PDT 10A 125V |
4,234 | - |
|
Datasheet | TL | Bulk | Active | Panel Mount | 4PDT | On-Mom | 10A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
2TL69-7SWITCH TOGGLE DPDT 10A 125V |
2,530 | - |
|
Datasheet | TL | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 10A (AC) | 125 V | - | Standard Round | 20.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
2TL84-7RSWITCH TOGGLE DPDT 10A 125V |
2,946 | - |
|
Datasheet | TL | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 10A (AC) | 125 V | - | Locking Lever | 28.20mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
