Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

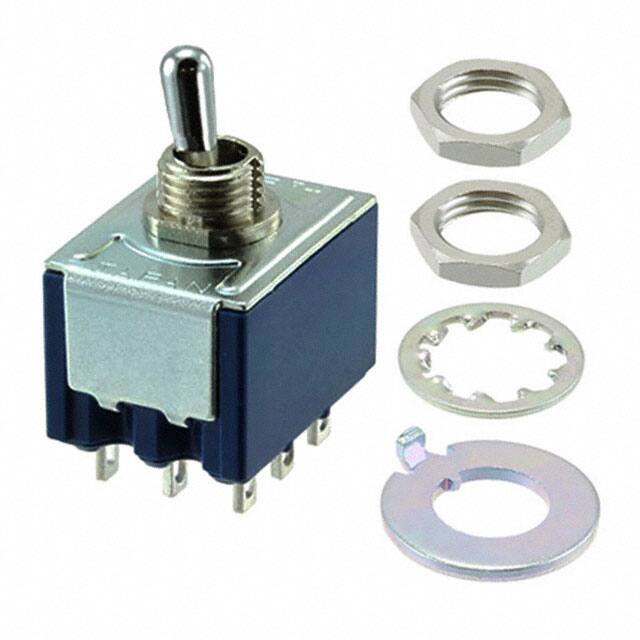

8B3021-ZSWITCH TOGGLE 3PDT 6A 125V |
1,039 | - |
|
Datasheet | 8B | Bulk | Obsolete | Panel Mount | 3PDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | 15/32-32 | - | Sealed - Flux Protection | -20°C ~ 85°C |
|
8A1042C-ZSWITCH TOGGLE SPDT 25MA 20V |
2,134 | - |
|
Datasheet | 8A | Bulk | Obsolete | Panel Mount | SPDT | Mom-Off-Mom | 25mA (DC) | - | 20 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -20°C ~ 85°C |
|
8A2022C-ZSWITCH TOGGLE DPDT 25MA 20V |
1,754 | - |
|
Datasheet | 8A | Bulk | Obsolete | Panel Mount | DPDT | On-Off-On | 25mA (DC) | - | 20 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -20°C ~ 85°C |
|
8C1042-ZSWITCH TOGGLE SPDT 6A 125V |
1,371 | - |
|
Datasheet | 8C | Bulk | Obsolete | Panel Mount | SPDT | Mom-Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Flat Anti-Rotation | 11.40mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -20°C ~ 85°C |
|
8E2041-ZSWITCH TOGGLE DPDT 6A 125V |
4,591 | - |
|
Datasheet | 8E | Bulk | Obsolete | Panel Mount | DPDT | Mom-Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -20°C ~ 85°C |
|
8G1026-ZSWITCH TOGGLE SPDT 6A 125V |
1,845 | - |
|
Datasheet | 8G | Bulk | Obsolete | Through Hole, Right Angle, Vertical | SPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 6.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -25°C ~ 80°C |
|
8G1044C-ZSWITCH TOGGLE SPDT 25MA 20V |
2,453 | - |
|
Datasheet | 8G | Bulk | Obsolete | Through Hole, Right Angle | SPDT | Mom-Off-Mom | 25mA (DC) | - | 20 V | Standard Round | 6.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -25°C ~ 80°C |
|
|
8G1046-ZSWITCH TOGGLE SPDT 6A 125V |
1,729 | - |
|
Datasheet | 8G | Bulk | Obsolete | Through Hole, Right Angle, Vertical | SPDT | Mom-Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 6.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -25°C ~ 80°C |
|
8G1054-ZSWITCH TOGGLE SPDT 6A 125V |
4,287 | - |
|
Datasheet | 8G | Bulk | Obsolete | Through Hole, Right Angle | SPDT | On-Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 6.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -25°C ~ 80°C |
|
8G2024-ZSWITCH TOGGLE DPDT 6A 125V |
3,249 | - |
|
Datasheet | 8G | Bulk | Obsolete | Through Hole, Right Angle | DPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 6.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -25°C ~ 80°C |
