Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

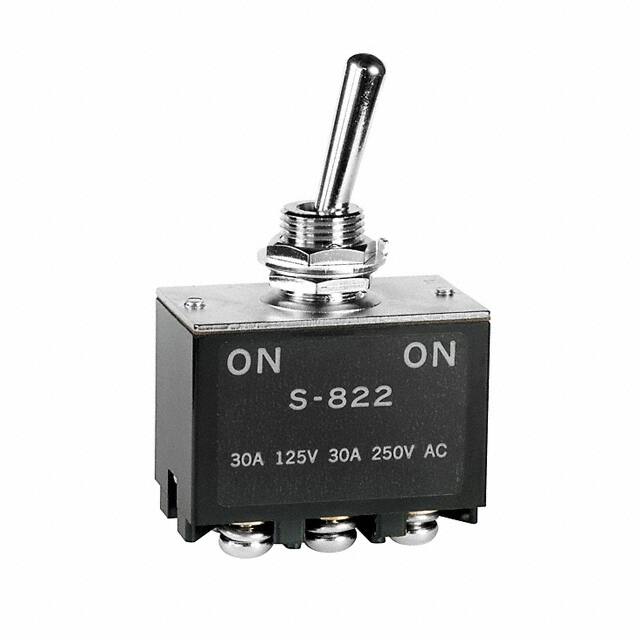

S822/USWITCH TOGGLE DPDT 30A 125V |
122 | - |
|
Datasheet | S | Bulk | Active | Panel Mount | DPDT | On-On | 30A (AC/DC) | 125 V | 30 V | Standard Round | 22.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|

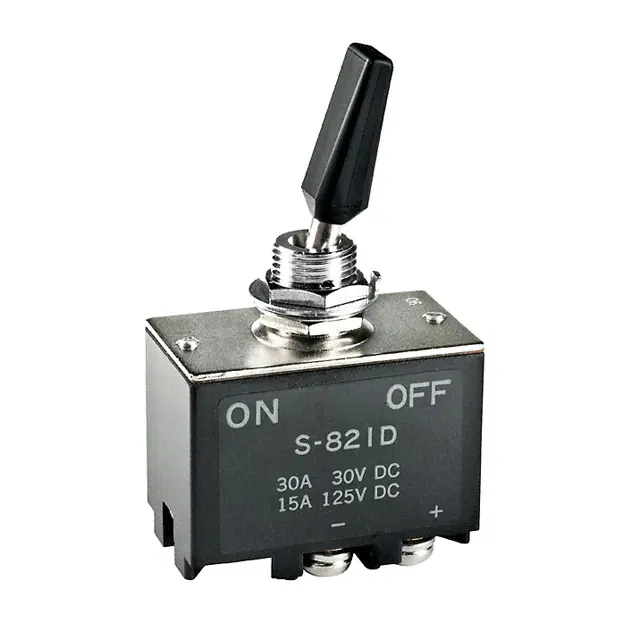

S821DSWITCH TOGGLE DPST 30A 30V |
170 | - |
|
Datasheet | S | Bulk | Active | Panel Mount | DPST | On-Off | 30A (DC) | - | 30 V | Flatted | 27.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
S831SWITCH TOGGLE 3PST 30A 125V |
2,257 | - |
|
Datasheet | S | Bulk | Active | Panel Mount | 3PST | On-Off | 30A (AC/DC) | 125 V | 30 V | Standard Round | 22.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|

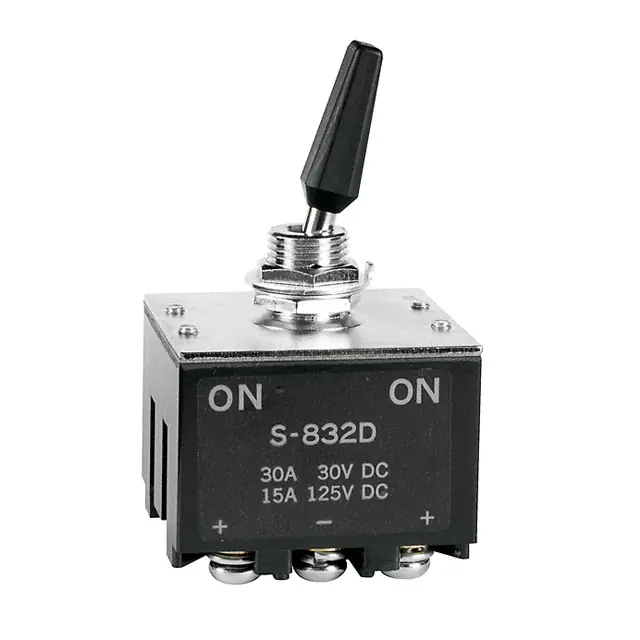

S832DSWITCH TOGGLE 3PDT 30A 30V |
106 | - |
|
Datasheet | S | Bulk | Active | Panel Mount | 3PDT | On-On | 30A (DC) | - | 30 V | Flatted | 27.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|

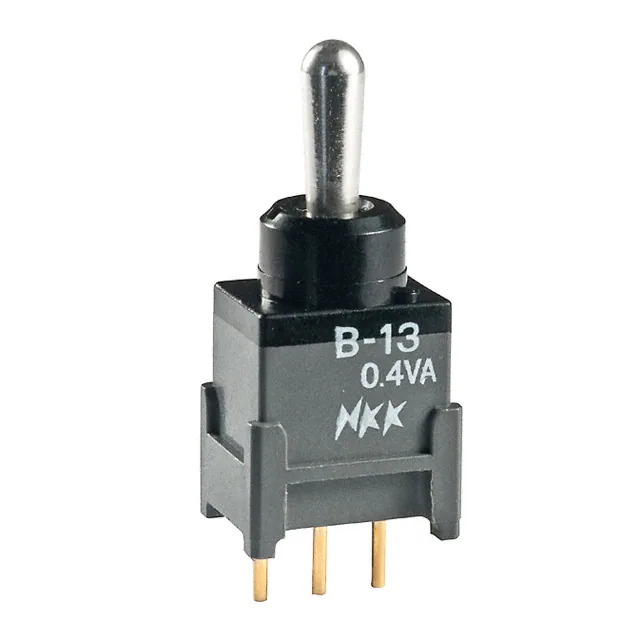

B13JPSWITCH TOGGLE SPDT 0.4VA 28V |
147 | - |
|
Datasheet | B | Bulk | Active | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

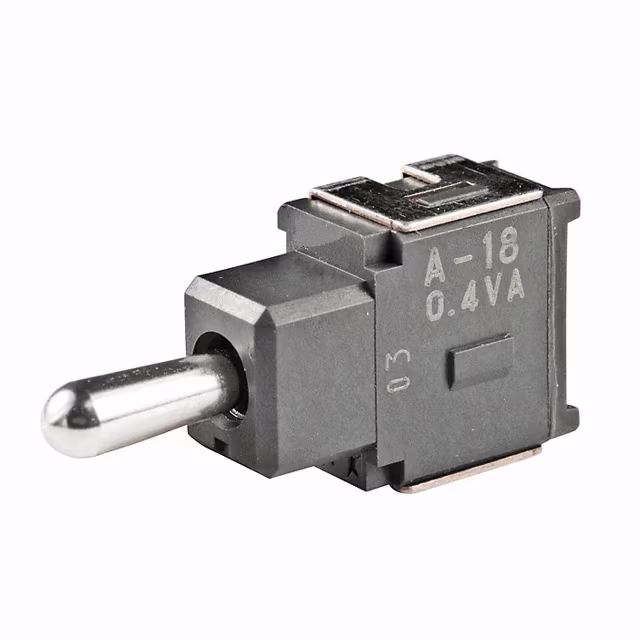

A18JHSWITCH TOGGLE SPDT 0.4VA 28V |
381 | - |
|
Datasheet | A | Tray | Active | Through Hole, Right Angle | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
B12JHSWITCH TOGGLE SPDT 0.4VA 28V |
379 | - |
|
Datasheet | B | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
G15APSWITCH TOGGLE SPDT 0.4VA 28V |
736 | - |
|
Datasheet | G | Tray | Active | Through Hole | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -25°C ~ 85°C |
|
B15ABSWITCH TOGGLE SPDT 0.4VA 28V |
163 | - |
|
Datasheet | B | Tray | Active | Through Hole | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
B13AVSWITCH TOGGLE SPDT 0.4VA 28V |
3,220 | - |
|
Datasheet | B | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
