Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

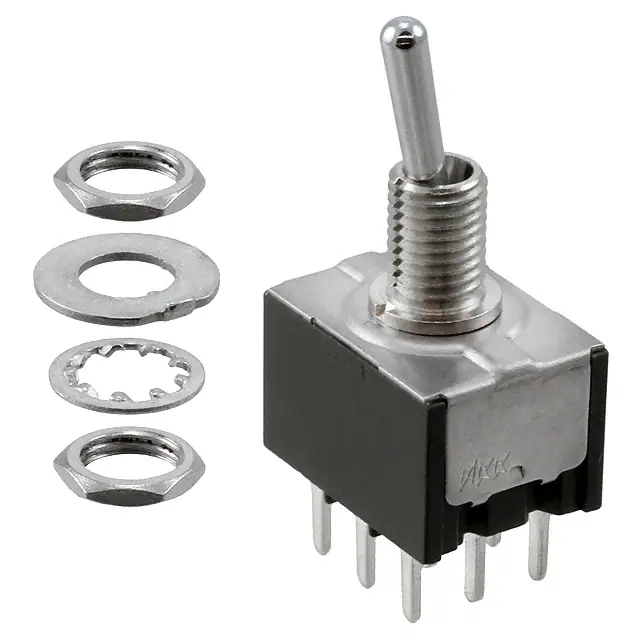

M2032SS4W03SWITCH TOGGLE 3PDT 6A 125V |
4,129 | - |
|
Datasheet | M | Bulk | Obsolete | Panel Mount | 3PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | M6 x 0.75 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
D22012LBSWITCH TOGGLE SPDT 0.4VA 48V |
1,831 | - |
|
Datasheet | D2 | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 48 V | 48 V | Locking Lever | 19.40mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -10°C ~ 70°C |
|

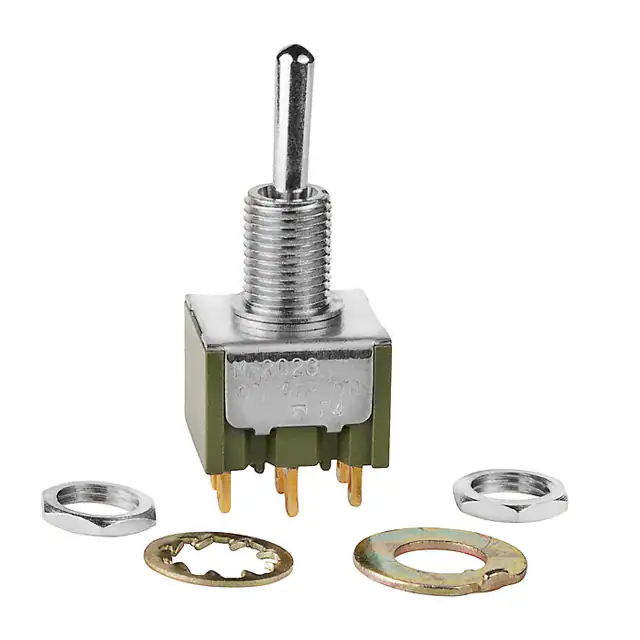

M2023SS1G01SWITCH TOGGLE DPDT 0.4VA 28V |
4,658 | - |
|
Datasheet | M | Bulk | Obsolete | Panel Mount | DPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2033SS1W01SWITCH TOGGLE 3PDT 6A 125V |
3,025 | - |
|
Datasheet | M | Bulk | Obsolete | Panel Mount | 3PDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

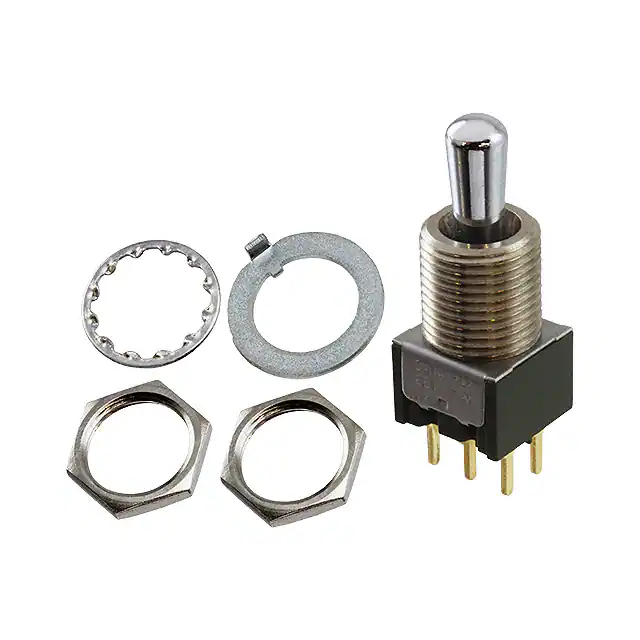

M2024BB1G03SWITCH TOGGLE SP3T 0.4VA 28V |
1,702 | - |
|
Datasheet | M | Bulk | Obsolete | Panel Mount | SP3T | On-On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 11.50mm | Non-Illuminated | - | - | PC Pin | Circular - 12.50mm Dia | M12 x 1 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
M2022SA2A13/CULSWITCH TOGGLE M2 |
3,926 | - |
|
Datasheet | M | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

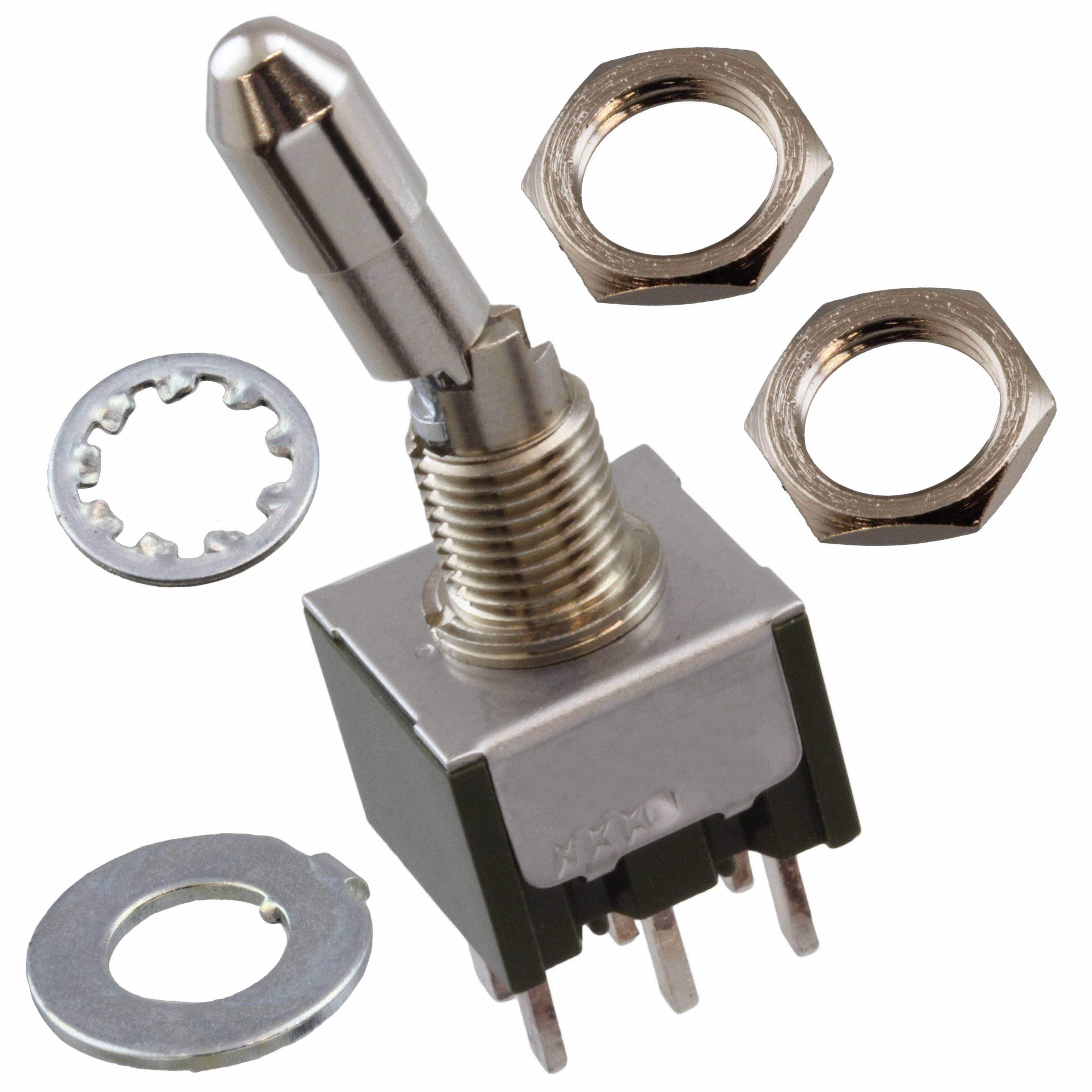

M2022LL1W02SWITCH TOGGLE DPDT 6A 125V |
3,864 | - |
|
Datasheet | M | Bulk | Obsolete | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | Quick Connect - 0.062" (1.5mm) | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
A28KB-AHSWITCH TOGGLE DPDT 0.4VA 28V |
4,830 | - |
|
Datasheet | A | Bulk | Active | Through Hole | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Snap On Paddle | 9.40mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Gray Actuator | -30°C ~ 85°C |
|
|
M2013BB3W01SWITCH TOGGLE SPDT 6A 125V |
3,382 | - |
|
Datasheet | M | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2012BB1G01-AT402SSWITCH TOGGLE SPDT 0.4VA 28V |
2,290 | - |
|
Datasheet | M | Bulk | Obsolete | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
