Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2T25S4A5G13SWITCH TOGGLE DPDT 0.4VA 28V |
1,610 | - |
|
Datasheet | M2 | Bulk | Obsolete | Through Hole | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2021BB1W01-AT402SSWITCH TOGGLE DPST 6A 125V |
1,565 | - |
|
Datasheet | M | Bulk | Obsolete | Panel Mount | DPST | On-Off | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
M2012B2B1A01-AT4181BUSHING MOUNT MINIATURE TOGGLE |
1,382 | - |
|
Datasheet | M | Bulk | Obsolete | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
M2012B2B1A01/U-AT4181BUSHING MOUNT MINIATURE TOGGLE |
3,762 | - |
|
Datasheet | M | Bulk | Obsolete | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|

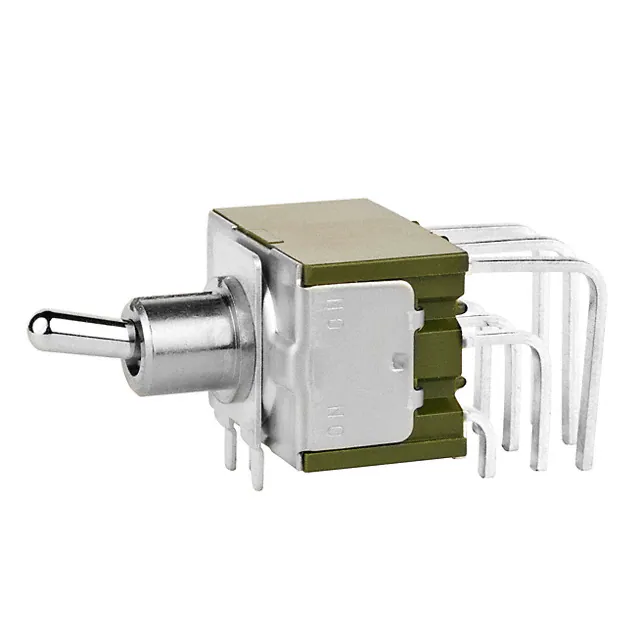

M2032S2A2W40SWITCH TOGGLE 3PDT 6A 125V |
3,316 | - |
|
Datasheet | M | Tray | Obsolete | Through Hole, Right Angle, Vertical | 3PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2028SS1W03-BASWITCH TOGGLE DPDT 6A 125V |
3,417 | - |
|
Datasheet | M | Bulk | Obsolete | Panel Mount | DPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Black Cap | -30°C ~ 85°C |
|
|
M2028SS1W03-CASWITCH TOGGLE DPDT 6A 125V |
2,998 | - |
|
Datasheet | M | Bulk | Obsolete | Panel Mount | DPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round with Cap | 13.10mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Black Cap | -30°C ~ 85°C |
|
|
D22028HSWITCH TOGGLE DPDT 0.4VA 48V |
3,389 | - |
|
Datasheet | D2 | Bulk | Active | Through Hole, Right Angle | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 48 V | 48 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -10°C ~ 70°C |
|
M2042SS1W45SWITCH TOGGLE 4PDT 6A 125V |
1,303 | - |
|
Datasheet | M | Bulk | Obsolete | Panel Mount, Right Angle, Vertical | 4PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2015BB1W03-AT402SSWITCH TOGGLE SPDT 6A 125V |
4,432 | - |
|
Datasheet | M | Bulk | Obsolete | Panel Mount | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | PC Pin | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
