Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2015B2B1W03-AT4181BUSHING MOUNT MINIATURE TOGGLE |
4,309 | - |
|
Datasheet | M | Bulk | Obsolete | Panel Mount | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | PC Pin | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|

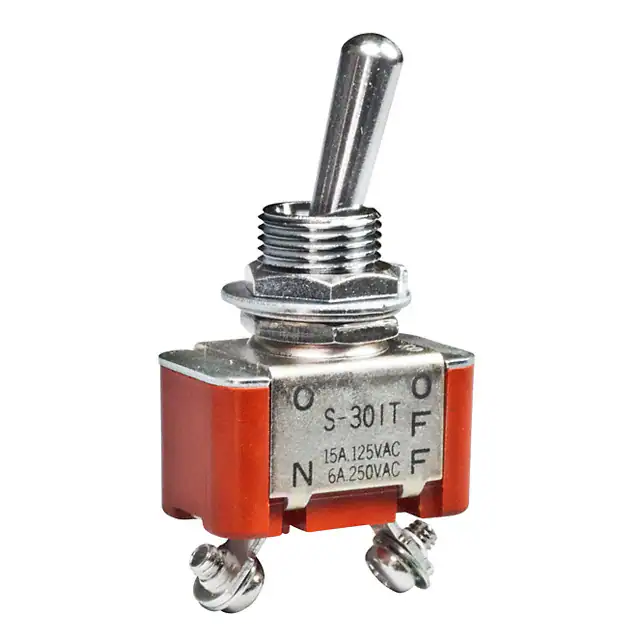

S301T/UCSWITCH TOGGLE SPST 15A 125V |
4,941 | - |
|
Datasheet | S300 | Bulk | Obsolete | Panel Mount | SPST | On-Off | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
M2023SS1G01-CBSWITCH TOGGLE DPDT 0.4VA 28V |
3,393 | - |
|
Datasheet | M | Bulk | Obsolete | Panel Mount | DPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round with Cap | 13.10mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | White Cap | -30°C ~ 85°C |
|
|
M2028LL1W01-ASWITCH TOGGLE DPDT 6A 125V |
2,428 | - |
|
Datasheet | M | Bulk | Obsolete | Panel Mount | DPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Black Cap | -30°C ~ 85°C |
|
M2026B2B1W01SWITCH TOGGLE SP3T 6A 125V |
2,478 | - |
|
Datasheet | M | Bulk | Obsolete | Panel Mount | SP3T | Mom-On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
M2029B2B1W01-AT4181BUSHING MOUNT MINIATURE TOGGLE |
4,355 | - |
|
Datasheet | M | Bulk | Obsolete | Panel Mount | DPDT | On-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
M2023Q2S1W01SWITCH TOGGLE DPDT 6A 125V |
2,401 | - |
|
Datasheet | M | Bulk | Obsolete | Panel Mount | DPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 16.26mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
P2012ZSWITCH TOGGLE SPDT 10A 125V |
1,304 | - |
|
Datasheet | P | Bulk | Obsolete | Panel Mount | SPDT | On-On | 10A (AC) | 125 V | - | Standard Round with Cap | 13.00mm | Non-Illuminated | - | - | Quick Connect - 0.187" (4.7mm) | Circular - 6.35mm Dia | M6 x 0.75 | - | White Cap | -10°C ~ 85°C |
|
P2023BZSWITCH TOGGLE DPDT 10A 125V |
2,826 | - |
|
Datasheet | P | Bulk | Obsolete | Panel Mount | DPDT | On-Off-On | 10A (AC) | 125 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.187" (4.7mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 85°C |
|
|
M2024BB1W03-AT402SSWITCH TOGGLE SP3T 6A 125V |
2,317 | - |
|
Datasheet | M | Bulk | Obsolete | Panel Mount | SP3T | On-On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | PC Pin | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
