Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

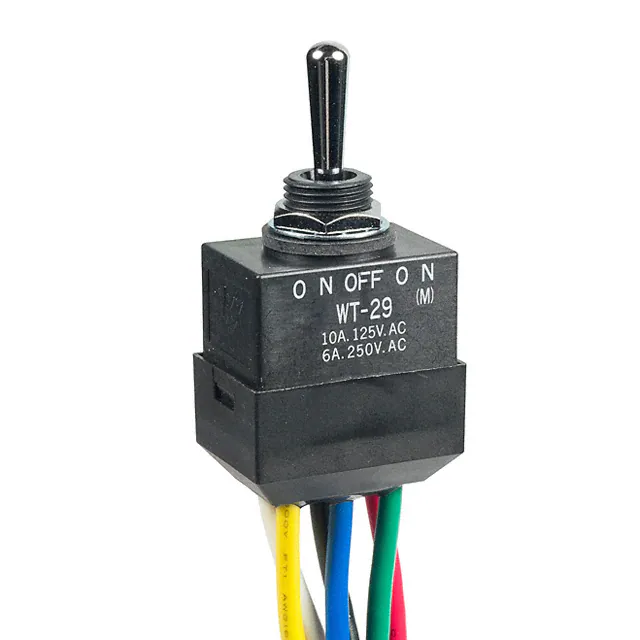

WT29LSWITCH TOGGLE DPDT 10A 125V |
2,235 | - |
|
Datasheet | WT | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 10A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Wire Leads | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 70°C |
|
S833/CULSWITCH TOGGLE 3PDT 30A 125V |
2,038 | - |
|
Datasheet | S | Bulk | Active | Panel Mount | 3PDT | On-Off-On | 30A (AC/DC) | 125 V | 30 V | Standard Round | 22.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
S833/USWITCH TOGGLE 3PDT 30A 125V |
38 |
1+：$62.02400 10+：$53.49200 25+：$50.42208 50+：$48.21232 100+：$46.09520 |
|
Datasheet | S | Bulk | Active | Panel Mount | 3PDT | On-Off-On | 30A (AC/DC) | 125 V | 30 V | Standard Round | 22.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|

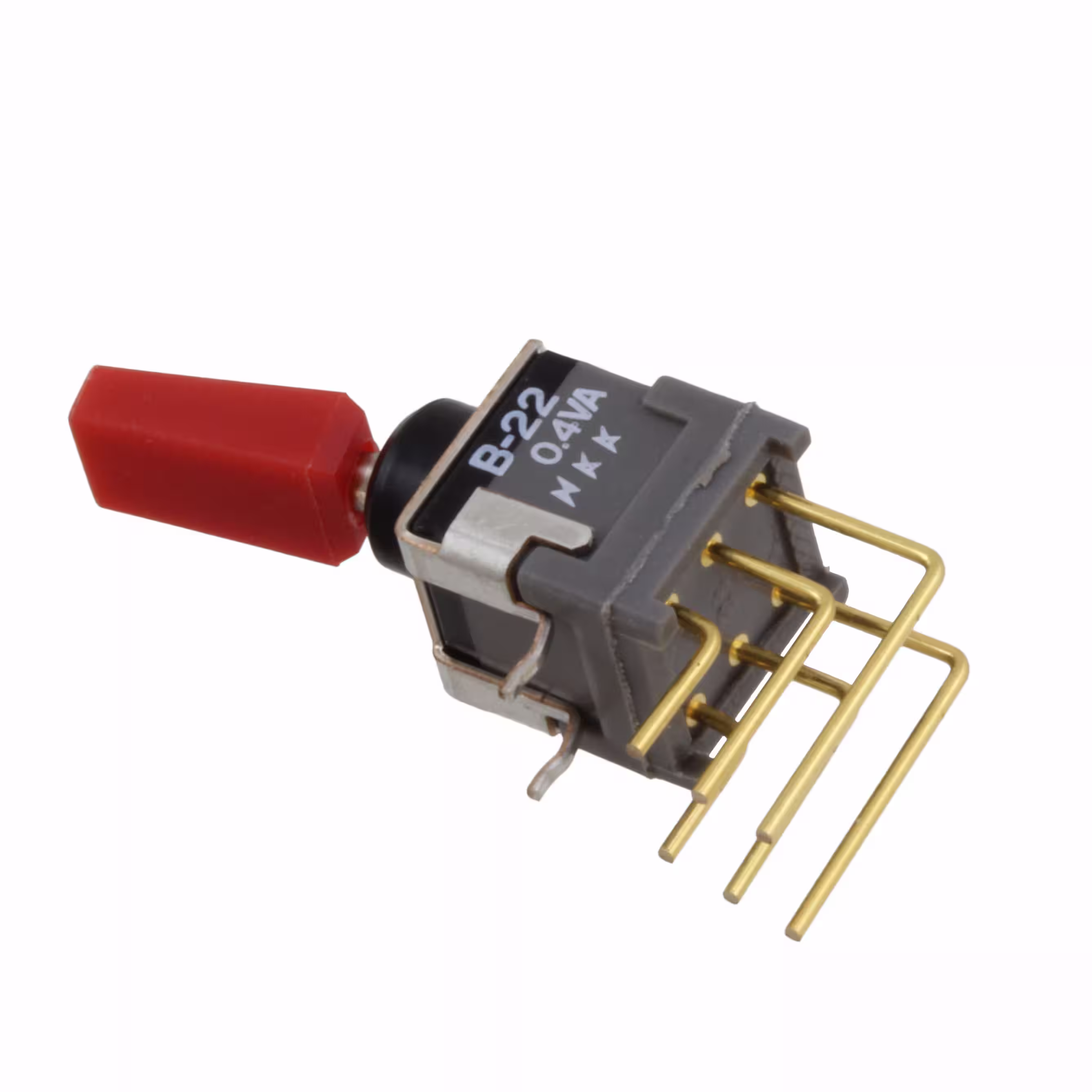

B22KV-ACSWITCH TOGGLE DPDT 0.4VA 28V |
2,000 | - |
|
Datasheet | B | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Snap On Paddle | 9.40mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Red Actuator | -30°C ~ 85°C |
|
A27AWSWITCH TOGGLE SP3T 0.4VA 28V |
2,000 | - |
|
Datasheet | A | Tray | Active | Through Hole | SP3T | On-On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.00mm | Non-Illuminated | - | - | Wire Wrap | - | Unthreaded, Square | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|

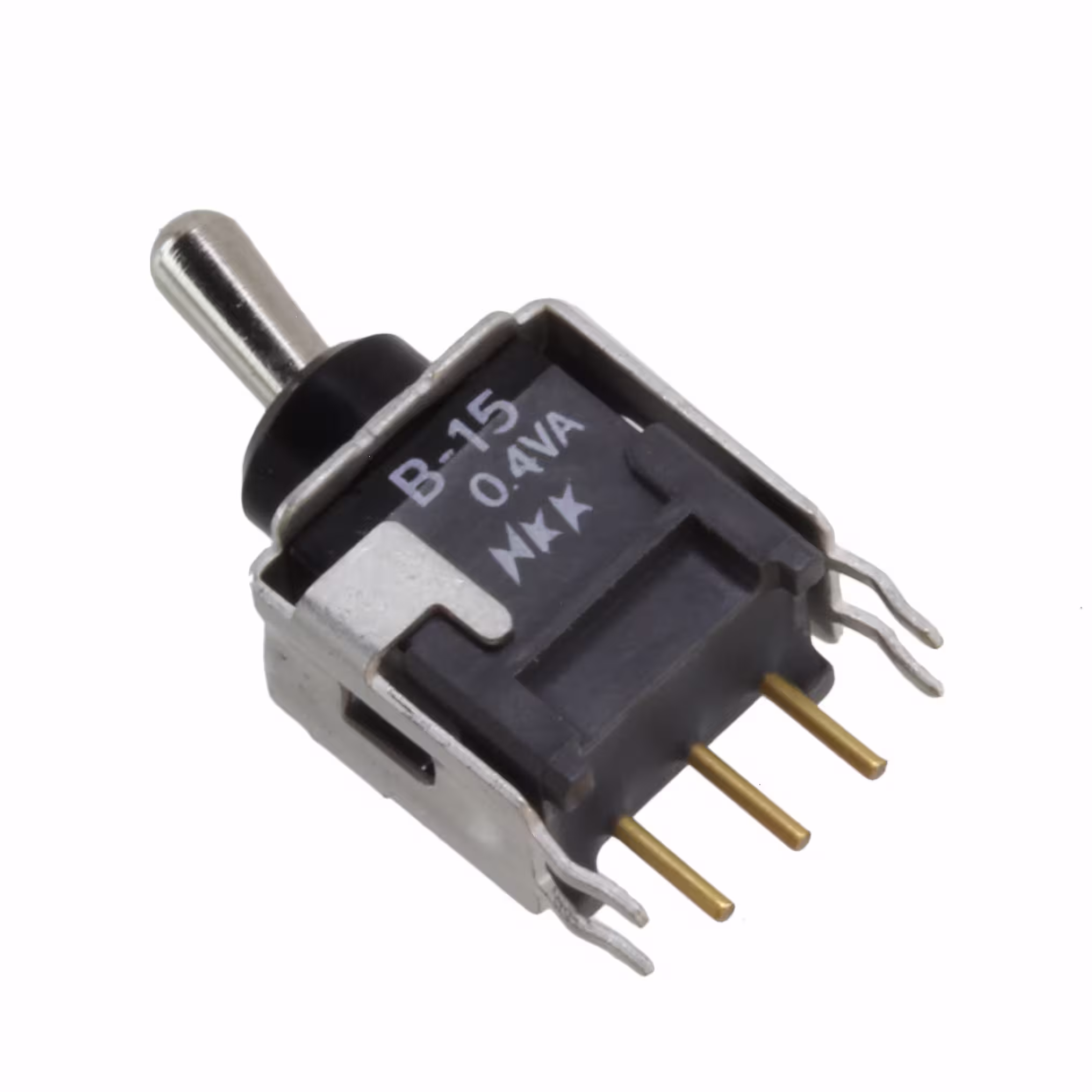

B15JBSWITCH TOGGLE SPDT 0.4VA 28V |
109 | - |
|
Datasheet | B | Bulk | Active | Through Hole | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

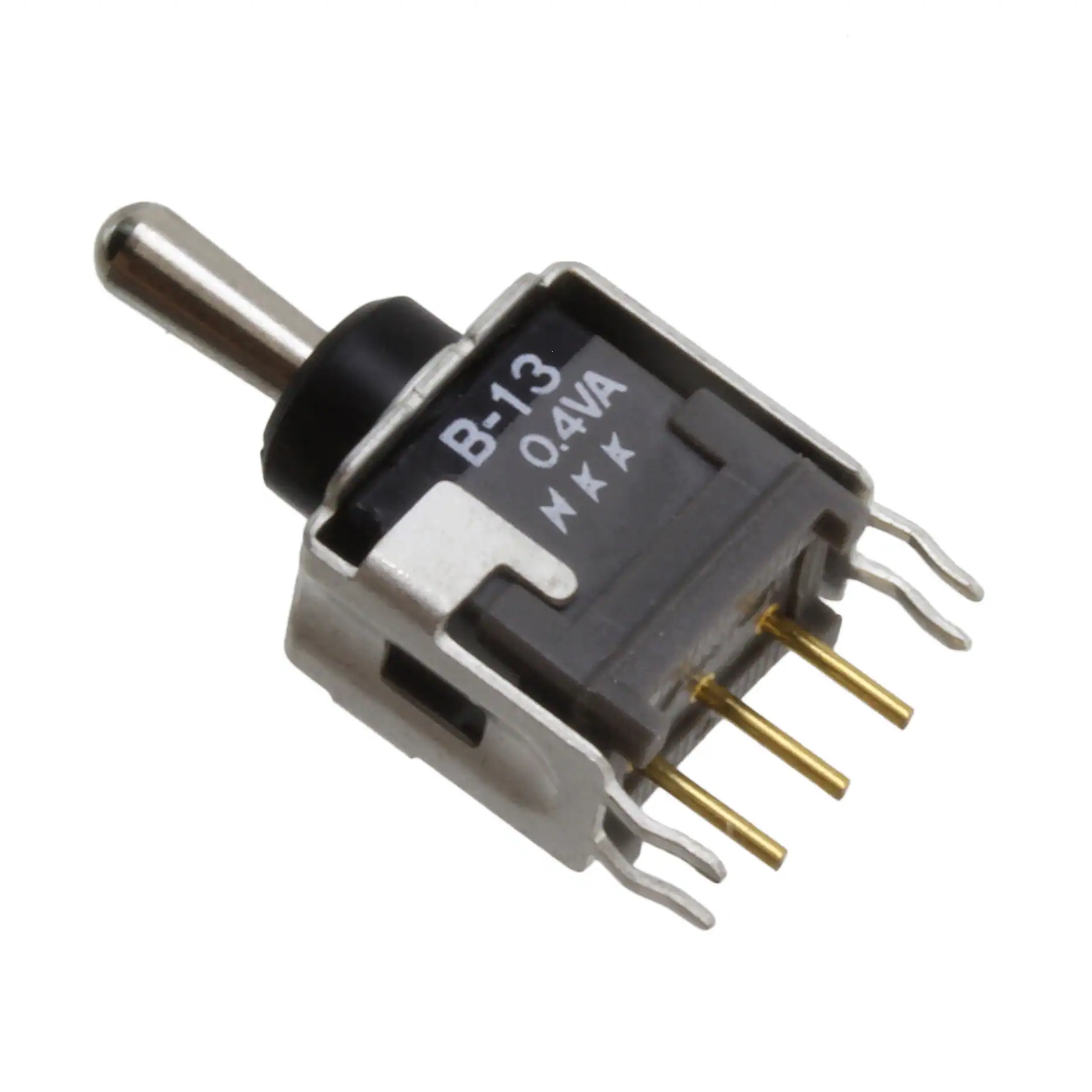

B13JBSWITCH TOGGLE SPDT 0.4VA 28V |
82 |
1+：$6.08800 10+：$5.25600 25+：$4.95680 50+：$4.74096 100+：$4.53440 250+：$4.27462 500+：$4.08757 1000+：$3.90842 |
|
Datasheet | B | Bulk | Active | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
B12KV-AHSWITCH TOGGLE SPDT 0.4VA 28V |
208 | - |
|
Datasheet | B | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Snap On Paddle | 9.40mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Gray Actuator | -30°C ~ 85°C |
|
B15AHSWITCH TOGGLE SPDT 0.4VA 28V |
2,293 | - |
|
Datasheet | B | Bulk | Active | Through Hole, Right Angle | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

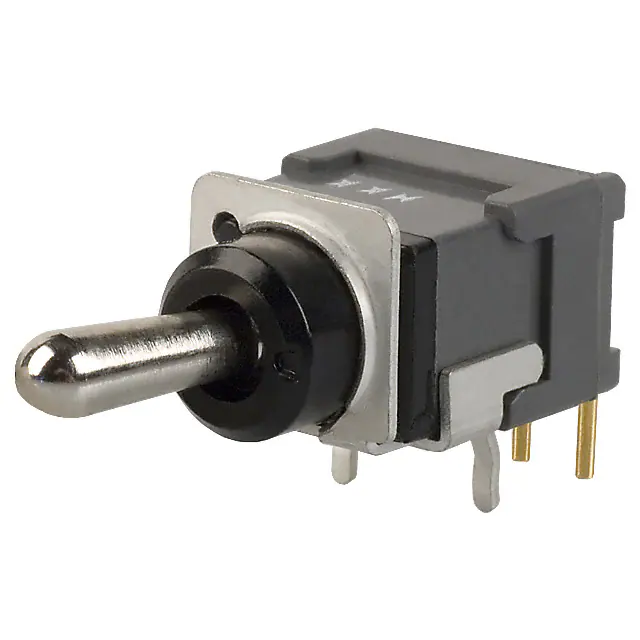

B15JHSWITCH TOGGLE SPDT 0.4VA 28V |
58 |
1+：$6.67200 10+：$5.75680 25+：$5.42816 50+：$5.19200 100+：$4.96576 250+：$4.68118 500+：$4.47635 1000+：$4.28013 |
|
Datasheet | B | Bulk | Active | Through Hole, Right Angle | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
