Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

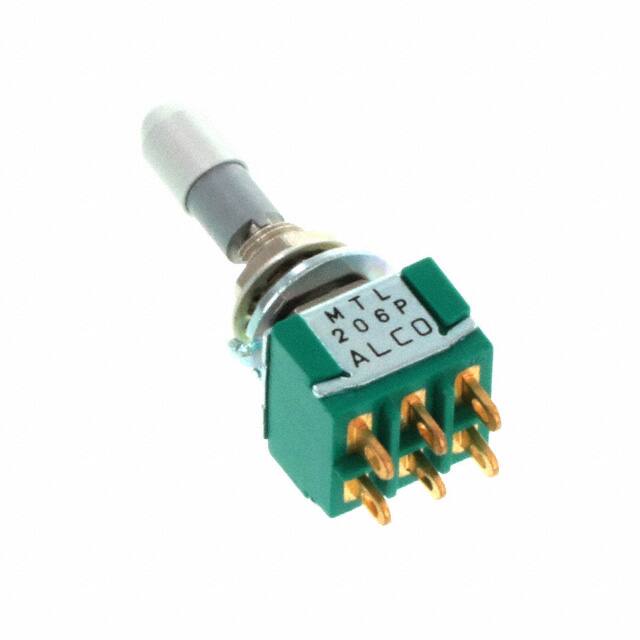

MTL206PASWITCH TOGGLE SP3T 6A 125V |
4,314 | - |
|
Datasheet | MTL Green | Bulk | Obsolete | Panel Mount | SP3T | On-On-On | 6A (AC), 4A (DC) | 125 V | 28 V | Locking Lever | 17.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.40mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -20°C ~ 80°C |
|
1520100-1SWITCH TOGGLE DPST 16A 125V |
2,975 | - |
|
Datasheet | - | Bulk | Active | - | DPST | On-Off | 16A (AC) | 125 V | - | Standard Round | 9.52mm | - | - | - | - | - | - | - | - | - |
|
|
TT13E3TSWITCH TOGGLE SPDT 3A 125V |
4,992 | - |
|
Datasheet | TT | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 3A (AC/DC) | 125 V | 28 V | Standard Round | 9.68mm | Non-Illuminated | - | - | Solder Lug | Circular - 4.83mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
MTE206RSWITCH TOGGLE DPDT 6A 125V |
4,366 | - |
|
Datasheet | MTE Green | Bulk | Obsolete | Panel Mount | DPDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 10.49mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
|
TT21NGRA9T1/4SWITCH TOGGLE DPDT 0.4VA 20V |
4,389 | - |
|
Datasheet | TT | Bulk | Obsolete | Panel Mount, Right Angle | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Flatted | 11.61mm | Non-Illuminated | - | - | PC Pin | Circular - 6.40mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
MTM206NPCSWITCH TOGGLE DPDT 6A 125V |
3,689 | - |
|
Datasheet | MTM Green | Bulk | Obsolete | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 6.90mm | Non-Illuminated | - | - | PC Pin | - | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
|
TT13A9T1/4SWITCH TOGGLE SPST 3A 125V |
1,577 | - |
|
Datasheet | TT | Bulk | Obsolete | Panel Mount | SPST | On-Off | 3A (AC/DC) | 125 V | 28 V | Standard Round | 10.69mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.40mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
2-6437630-8SWITCH TOGGLE 3PDT 6A 250V |
3,421 | - |
|
Datasheet | F | Bulk | Active | Panel Mount | 3PDT | On-On | 6A (AC) | 250 V | - | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.20mm Dia | M6 x 0.75 | - | - | -20°C ~ 70°C |
|
|
MTA206SPCSWITCH TOGGLE DPDT 6A 125V |
2,280 | - |
|
Datasheet | MTA Green | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 6A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 10.49mm | Non-Illuminated | - | - | PC Pin | - | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
|
MTG206PSWITCH TOGGLE DPDT 6A 125V |
1,796 | - |
|
Datasheet | MTG Green | Bulk | Active | Panel Mount | DPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Solder Lug | - | 15/32-32 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
