Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5639ASWITCH TOGGLE SPDT 6A 125V |
3,905 | - |
|
Datasheet | 5000 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
21236NASWITCH TOGGLE SPDT 4A 125V |
2,921 | - |
|
Datasheet | 21000N | Bulk | Active | Panel Mount, Right Angle | SPDT | On-On | 4A (AC/DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | - | -40°C ~ 85°C |
|
5636ABULCSASWITCH TOGGLE SPDT 6A 125V |
2,849 | - |
|
Datasheet | 5000 | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
SF36S010000SWITCH TOGGLE SPDT 5A 125V |
3,373 | - |
|
Datasheet | SF | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.70mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 85°C |
|

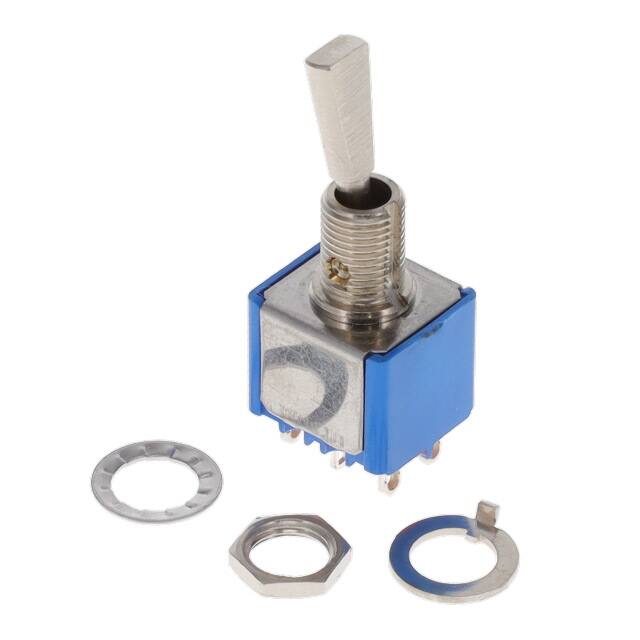

5642AB9SWITCH TOGGLE DPDT 6A 125V |
3,822 | - |
|
Datasheet | 5000 | Bulk | Active | Panel Mount | DPDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Flatted | 11.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | - | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
TL46P005000SWITCH TOGGLE DPDT 0.4VA 20V |
4,250 | - |
|
Datasheet | TL | Bulk | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

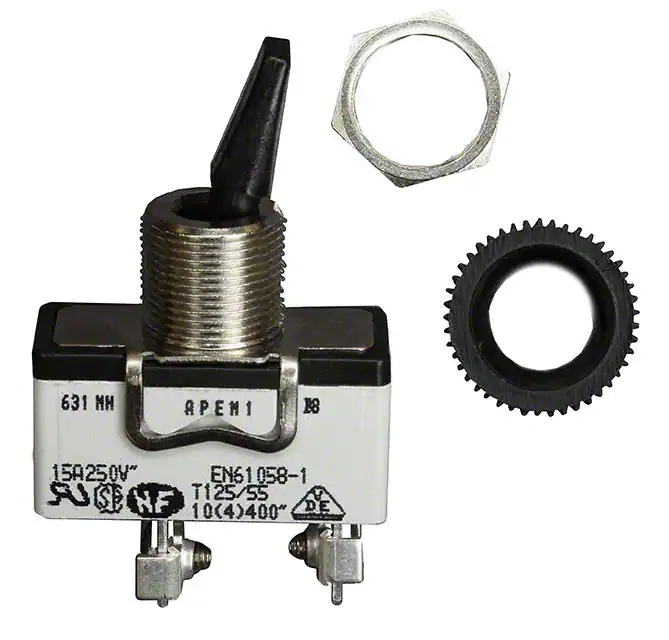

631NHSWITCH TOGGLE SPST 15A 250V |
2,027 | - |
|
Datasheet | 600NH | Bulk | Active | Panel Mount | SPST | On-Off | 15A (AC) | 250 V | - | Flatted | 13.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | M12 x 0.75 | - | - | -20°C ~ 55°C |
|
5236WWCDB16X445SWITCH TOGGLE SPDT 0.4VA 20V |
7 |
1+：$9.81600 10+：$8.47360 25+：$7.98944 50+：$7.64160 100+：$7.30808 250+：$6.88864 500+：$6.58672 1000+：$6.29749 |
|
Datasheet | 5000 | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 8.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
5236WCDBSWITCH TOGGLE SPDT 0.4VA 20V |
1,962 | - |
|
Datasheet | 5000 | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 13.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
5639AB9SWITCH TOGGLE SPDT 6A 125V |
2,718 | - |
|
Datasheet | 5000 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Flatted | 11.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | - | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
