Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

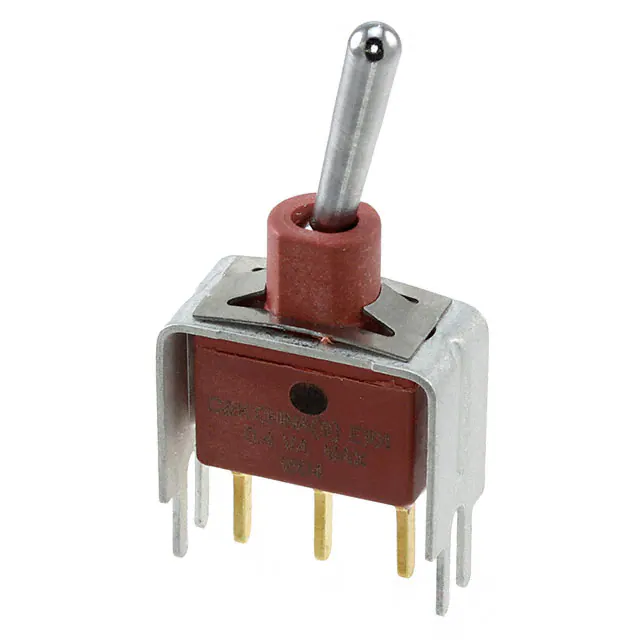

E101SD1V3BESWITCH TOGGLE SPDT 0.4VA 20V |
210 |
10+：$6.78400 50+：$6.65600 80+：$6.28800 |
|
Datasheet | E | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
ET03SD1ABESWITCH TOGGLE SPDT 0.4VA 20V |
3 |
1+：$10.75200 10+：$9.28000 25+：$8.75040 50+：$8.36896 200+：$7.65364 400+：$7.31834 600+：$7.12876 1000+：$6.89650 |
|
Datasheet | ET | Tray | Active | Through Hole, Right Angle | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.16mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
T103MH9CBESWITCH TOGGLE SPDT 0.4VA 20V |
0 |
1+：$11.32800 10+：$9.77440 25+：$9.21600 50+：$8.81440 200+：$8.06088 400+：$7.70766 600+：$7.50796 1000+：$7.26334 |
|
Datasheet | T | Tray | Active | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.44mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7101P3DZQESWITCH TOGGLE SPDT 5A 120V |
64 |
1+：$11.49600 10+：$9.92160 25+：$9.35456 50+：$8.94688 100+：$8.55632 300+：$7.97050 500+：$7.71133 1000+：$7.37250 |
|
Datasheet | 7000 | Tray | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 13.21mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7101MHA2BESWITCH TOGGLE SPDT 0.4VA 20V |
375 |
1+：$11.60000 10+：$10.00880 25+：$9.43712 80+：$8.75670 160+：$8.37395 320+：$8.00720 560+：$7.72233 1040+：$7.41850 |
|
Datasheet | 7000 | Bulk | Active | Panel Mount, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.08mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7105MHZQESWITCH TOGGLE SPDT 5A 120V |
747 |
1+：$12.24800 10+：$10.56800 25+：$9.96448 50+：$9.53008 100+：$9.11392 300+：$8.48992 500+：$8.21387 1000+：$7.85294 |
|
Datasheet | 7000 | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 5.08mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

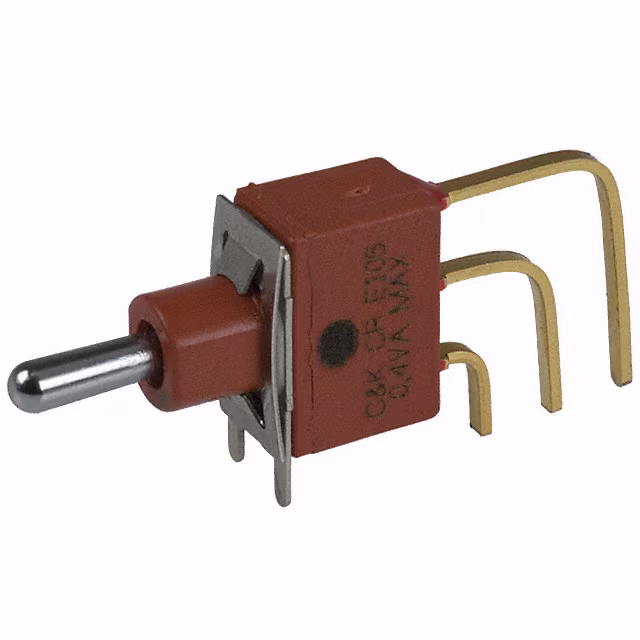

E105MD1AV2BESWITCH TOGGLE SPDT 0.4VA 20V |
0 |
1+：$11.57600 10+：$9.99200 25+：$9.42112 80+：$8.74180 160+：$8.35965 320+：$7.99353 560+：$7.70917 1040+：$7.40586 |
|
Datasheet | E | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
T107MH9ABESWITCH TOGGLE SPDT 0.4VA 20V |
1,554 | - |
|
Datasheet | T | Bulk | Active | Through Hole, Right Angle | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.33mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
T105MH9AVBESWITCH TOGGLE SPDT 0.4VA 20V |
71 |
1+：$12.68800 10+：$10.95200 25+：$10.32608 80+：$9.58160 160+：$9.16275 320+：$8.76140 560+：$8.44967 1040+：$8.11712 |
|
Datasheet | T | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.33mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

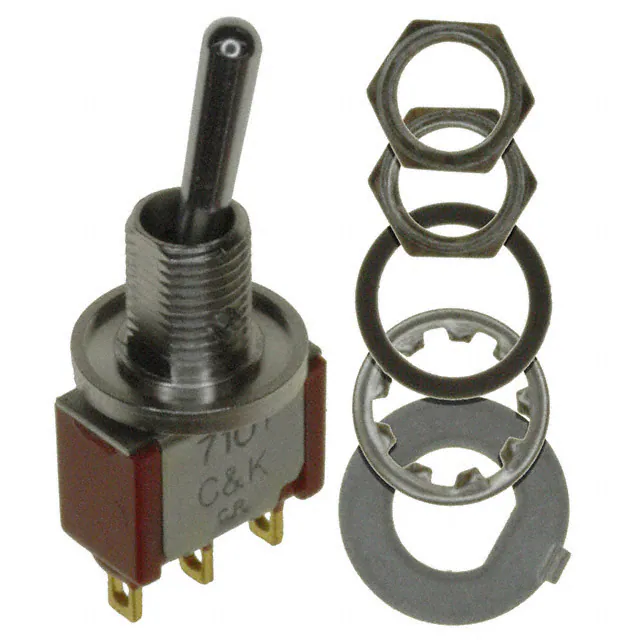

7101SPCWZGESWITCH TOGGLE SPDT 5A 120V |
59 |
1+：$13.99200 10+：$12.07840 25+：$11.38848 50+：$10.89168 100+：$10.41600 300+：$9.70242 500+：$9.38683 |
|
Datasheet | 7000 | Tray | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Anti-Rotation | 10.67mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
