Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
12013XSWITCH TOGGLE 3POS R/A 1B/1B |
4,703 | - |
|
Datasheet | 12000 | Bulk | Active | Panel Mount, Right Angle | - | - | - | - | - | Standard Round | 22.22mm | Non-Illuminated | - | - | Solder Lug | - | 15/32-32 | - | - | - |
|

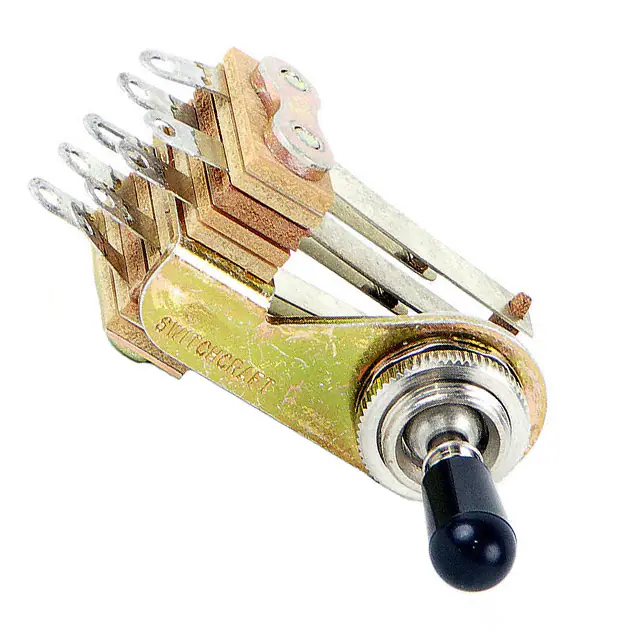

12015XSWITCH TOGGLE 3POS R/A 2B/2B |
1,077 | - |
|
Datasheet | 12000 | Bulk | Active | Panel Mount, Right Angle | - | - | - | - | - | Standard Round | 22.22mm | Non-Illuminated | - | - | Solder Lug | - | 15/32-32 | - | - | - |
|

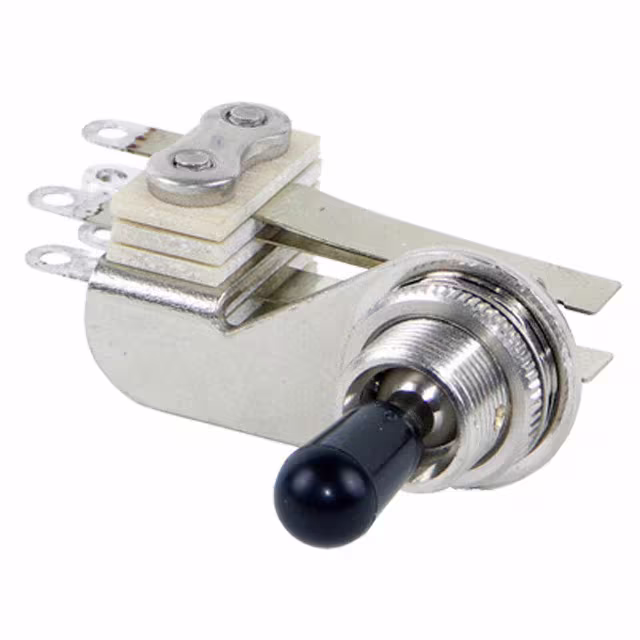

12017XSWITCH TOGGLE 3POS R/A 1B/1B |
1,698 | - |
|
Datasheet | 12000 | Bulk | Active | Panel Mount, Right Angle | - | - | - | - | - | Standard Round | 22.22mm | Non-Illuminated | - | - | Solder Lug | - | 15/32-32 | - | - | - |
|
12011XSWITCH TOGGLE 3POS STR 1B/1B |
0 |
100+：$31.42832 |
|
Datasheet | 12000 | Bulk | Active | Panel Mount | - | - | - | - | - | Standard Round | 22.22mm | Non-Illuminated | - | - | Solder Lug | - | 15/32-32 | - | - | - |
|
160312XSWITCH TOGGLE 2A 30V |
3,525 | - |
|
Datasheet | 16000 | Bulk | Active | Panel Mount | - | - | 2A (DC) | - | 30 V | Standard Round | - | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | - | - | -30°C ~ 70°C |
|
|
16036XSWITCH TOGGLE 2A 30V |
4,173 | - |
|
Datasheet | 16000 | Bulk | Active | Panel Mount | - | - | 2A (DC) | - | 30 V | Standard Round | - | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | - | - | -30°C ~ 70°C |
|

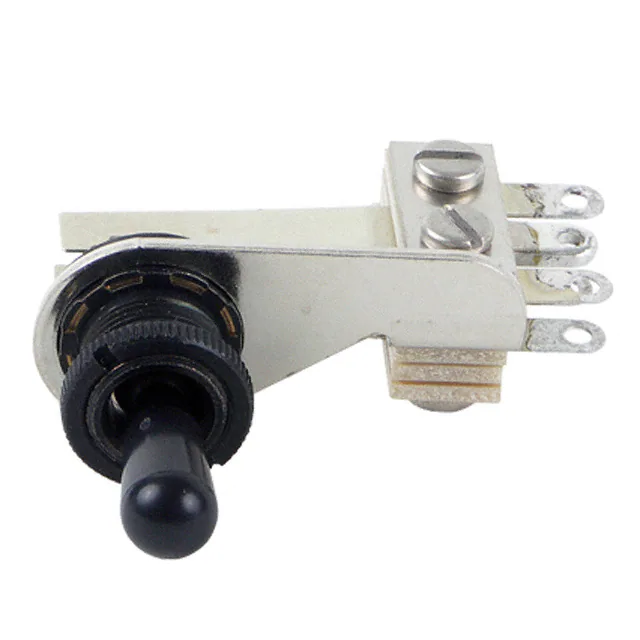

12014XSWITCH TOGGLE 3POS R/A 1B/1B |
3,837 | - |
|
Datasheet | 12000 | Bulk | Active | Panel Mount, Right Angle | - | - | - | - | - | Standard Round | 22.22mm | Non-Illuminated | - | - | Solder Lug | - | 15/32-32 | - | - | - |
|
|
41206XSWITCH TOGGLE 2A 125V |
1,602 | - |
|
Datasheet | 41000 | Bulk | Active | Panel Mount | - | - | 2A (AC) | 125 V | - | Flatted | - | Non-Illuminated | - | - | Solder Lug | Circular - 12.70mm Dia | 15/32-32 | - | - | -30°C ~ 70°C |
|
41206LSWITCH TOGGLE 2A 125V |
3,501 | - |
|
Datasheet | 41000 | Bulk | Active | Panel Mount | - | - | 2A (AC) | 125 V | - | Locking Lever | - | Non-Illuminated | - | - | Solder Lug | Circular - 12.70mm Dia | 15/32-32 | - | - | -30°C ~ 70°C |
|
|
41212XSWITCH TOGGLE 2A 125V |
3,698 | - |
|
Datasheet | 41000 | Bulk | Active | Panel Mount | - | - | 2A (AC) | 125 V | - | Flatted | - | Non-Illuminated | - | - | Solder Lug | Circular - 12.70mm Dia | 15/32-32 | - | - | -30°C ~ 70°C |
