Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
100SP1T1B4M2QESWITCH TOGGLE SPDT 5A 120V |
7,788 | - |
|
Datasheet | 100 | Bulk | Active | Through Hole | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100SP1T1B1M1QEHSWITCH TOGGLE SPDT 5A 120V |
12,556 |
1+：$2.46400 10+：$2.13040 25+：$2.00896 96+：$1.84325 192+：$1.76304 288+：$1.71766 576+：$1.64274 1056+：$1.57978 |
|
Datasheet | 100 | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100SP1T1B1M2QEHSWITCH TOGGLE SPDT 5A 120V |
13,836 |
1+：$2.52800 10+：$2.18480 25+：$2.06080 96+：$1.89066 192+：$1.80838 288+：$1.76183 576+：$1.68494 1056+：$1.62036 |
|
Datasheet | 100 | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100SP1T2B3M1QEHSWITCH TOGGLE SPDT 5A 120V |
2,075 |
1+：$3.18400 10+：$2.74800 25+：$2.59200 96+：$2.37775 192+：$2.27421 288+：$2.21566 576+：$2.11892 1056+：$2.03766 |
|
Datasheet | 100 | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 5.08mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100SP3T1B1M2QESWITCH TOGGLE SPDT 5A 120V |
9,858 |
1+：$2.52800 10+：$2.18000 25+：$2.05632 50+：$1.96704 108+：$1.87230 324+：$1.74472 540+：$1.68826 1080+：$1.61450 |
|
Datasheet | 100 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
200AWMSP1T2A1M2RESWITCH TOGGLE SPDT 0.4VA 20V |
5,776 |
1+：$3.87200 10+：$3.34080 25+：$3.15040 50+：$3.01344 189+：$2.76678 378+：$2.64601 567+：$2.57775 1134+：$2.46491 |
|
Datasheet | 200A | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.10mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP3T1B1M2QEHSWITCH TOGGLE SPDT 5A 120V |
10,822 |
1+：$2.56000 10+：$2.21360 25+：$2.08768 96+：$1.91517 192+：$1.83179 288+：$1.78466 576+：$1.70678 1056+：$1.64136 |
|
Datasheet | 100 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
200USP1T1A1M2RESWITCH TOGGLE SPDT 0.4VA 20V |
3,282 |
1+：$3.21600 10+：$2.77360 25+：$2.61568 68+：$2.45330 136+：$2.34659 272+：$2.24430 544+：$2.14631 1020+：$2.06101 |
|
Datasheet | 200U | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 3.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100DP1T1B1M2QEHSWITCH TOGGLE DPDT 5A 120V |
2,197 | - |
|
Datasheet | 100 | Bulk | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

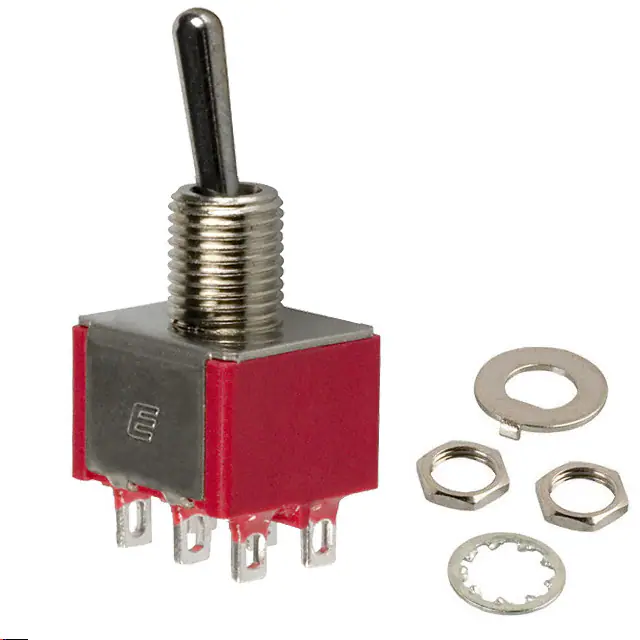

100DP1T1B1M1QEHSWITCH TOGGLE DPDT 5A 120V |
184 | - |
|
Datasheet | 100 | Bulk | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
