Thyristors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Voltage - Breakover | Voltage - Off State | Voltage - On State | Current - Peak Pulse (8/20µs) | Current - Peak Pulse (10/1000µs) | Current - Hold (Ih) | Number of Elements | Capacitance | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P0080SCMCLRPTHYRISTOR 6V 400A DO-214AA |
8,501 | - |
|
Datasheet | DO-214AA, SMB | SIDACtor® | Tape & Reel (TR) | Active | 25V | 6V | 5 V | 400 A | 100 A | 50 mA | 1 | 75pF | - | - | Surface Mount | DO-214AA |
|
TISP61089QBDR-STHYRISTOR 170V 30A 8-SOIC |
139 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | 64V | 170V | - | - | 30 A | 150 mA | 4 | 100pF | - | - | Surface Mount | 8-SOIC |
|
P3800S3NLRPTHYRISTOR 350V 2.5KA DO-214AB |
2,460 | - |
|
Datasheet | DO-214AB, SMC | Pxxx0S3N | Tape & Reel (TR) | Active | 430V | 350V | 4 V | 2.5 kA | - | 50 mA | 1 | 450pF (Max) | - | - | Surface Mount | DO-214AB (SMCJ) |
|

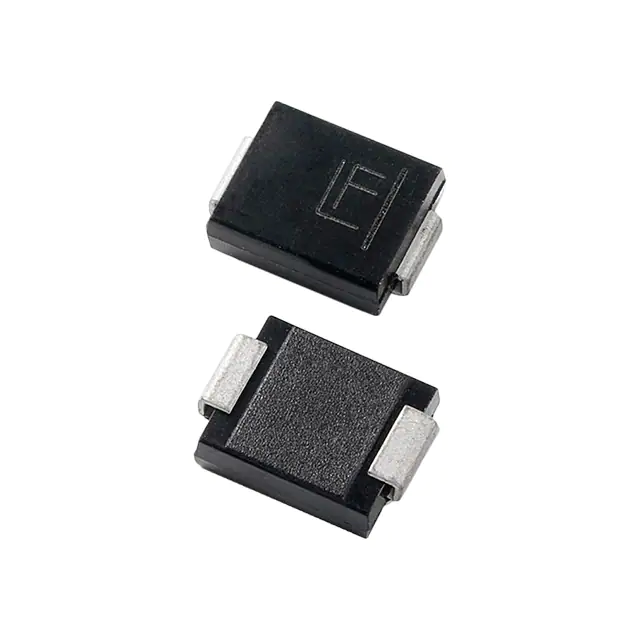

P0300S3NLRPTHYRISTOR 30V 2.5KA DO-214AB |
895 |
1+：$4.52000 10+：$3.03200 100+：$2.19072 500+：$1.98450 |
|
Datasheet | DO-214AB, SMC | SIDACtor® | Tape & Reel (TR) | Active | 45V | 30V | 4 V | 2.5 kA | - | 50 mA | 1 | 150pF | - | - | Surface Mount | DO-214AB (SMCJ) |
|
A2106UC6LRPTHYRISTOR 50V/170V 400A 6-SMD |
222 | - |
|
Datasheet | 6-SMD, Gull Wing | SIDACtor® | Tape & Reel (TR) | Active | 80V, 250V | 50V, 170V | 8 V | 400 A | 100 A | 150 mA | 6 | 35pF, 40pF | - | - | Surface Mount | Modified MS-013 |
, TO-218AC.jpg)
|
P2300MELTHYRISTOR 180V 5KA TO-218-3 |
3,300 | - |
|
Datasheet | TO-218-3, TO-218AC | SIDACtor® | Tube | Active | 260V | 180V | 4 V | 5 kA | - | 50 mA | 1 | 600pF | - | - | Through Hole | TO-218AC |
|
TISP4040L1BJR-STHYRISTOR 25V 120A DO-214AA |
3,351 | - |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | 40V | 25V | - | 120 A | 30 A | 50 mA | 1 | 24pF | - | - | Surface Mount | DO-214AA (SMB) |
|
SMTPA62THYRISTOR 62V 150A DO-214AA |
0 |
1+：$0.75200 10+：$0.46800 100+：$0.30376 500+：$0.23302 1000+：$0.21022 |
|
Datasheet | DO-214AA, SMB | SMP, TRISIL™ | Tape & Reel (TR) | Active | 82V | 62V | - | 150 A | 50 A | 150 mA | 1 | 40pF | - | - | Surface Mount | SMB |
|
ETP01-2821RLTHYRISTOR 28V 100A 8-SOIC |
2,395 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | ETP01, TRISIL™ | Tape & Reel (TR) | Active | 36V | 28V | - | 100 A | - | 30 mA | 3 | 16pF | - | - | Surface Mount | 8-SOIC |
|
|
SMP75-8THYRISTOR 8V 250A DO-214AA |
6,983 |
1+：$0.92000 10+：$0.57680 100+：$0.37816 500+：$0.29256 1000+：$0.26500 |
|
Datasheet | DO-214AA, SMB | SMP, TRISIL™ | Tape & Reel (TR) | Active | 15V | 8V | - | 250 A | 75 A | 50 mA | 1 | 60pF | - | - | Surface Mount | SMB |
|
|
ETP01-1621RLTHYRISTOR 16V 100A 8-SOIC |
0 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | ETP01, TRISIL™ | Tape & Reel (TR) | Active | 25V | 16V | - | 100 A | - | 30 mA | 3 | 16pF | - | - | Surface Mount | 8-SOIC |
|
|
TISP4350T3BJR-STHYRISTOR 275V 250A DO-214AA |
6,426 |
1+：$0.98400 10+：$0.61680 100+：$0.40528 500+：$0.31445 1000+：$0.28518 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | 350V | 275V | 3 V | 250 A | 80 A | 150 mA | 1 | 52pF | - | - | Surface Mount | DO-214AA (SMB) |
|
|
TISP4350M3BJR-STHYRISTOR 275V 220A DO-214AA |
6,085 |
1+：$0.98400 10+：$0.61680 100+：$0.40528 500+：$0.31445 1000+：$0.28518 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | 350V | 275V | 3 V | 220 A | 50 A | 150 mA | 1 | 83pF | - | - | Surface Mount | DO-214AA (SMB) |
|
|
SMP100LC-25THYRISTOR 25V 400A DO-214AA |
20,005 | - |
|
Datasheet | DO-214AA, SMB | SMP, TRISIL™ | Tape & Reel (TR) | Active | 35V | 25V | - | 400 A | 100 A | 150 mA | 1 | 65pF | - | - | Surface Mount | SMB |
|
|
SMP100LC-200THYRISTOR 200V 400A DO-214AA |
5,125 | - |
|
Datasheet | DO-214AA, SMB | SMP, TRISIL™ | Tape & Reel (TR) | Active | 250V | 200V | - | 400 A | 100 A | 150 mA | 1 | 60pF | - | - | Surface Mount | SMB |
|
|
SMP100LC-90THYRISTOR 90V 400A DO-214AA |
5,960 |
1+：$1.04800 10+：$0.65680 100+：$0.43200 500+：$0.33518 1000+：$0.30402 |
|
Datasheet | DO-214AA, SMB | SMP, TRISIL™ | Tape & Reel (TR) | Active | 125V | 90V | - | 400 A | 100 A | 150 mA | 1 | 80pF | - | - | Surface Mount | SMB |
|
TISP4P015L1NR-STHYRISTOR 8V 30A SC-74A |
4,394 |
1+：$1.01600 10+：$0.63920 100+：$0.42088 500+：$0.32702 1000+：$0.29679 2000+：$0.27135 5000+：$0.25704 |
|
Datasheet | SC-74A, SOT-753 | - | Tape & Reel (TR) | Active | 15V | 8V | - | 30 A | 18 A | 30 mA | 1 | 6.5pF | - | - | Surface Mount | SOT-23-5 |
|
|
TISP4P020L1NR-STHYRISTOR 12V 30A SC-74A |
20,000 |
1+：$1.01600 10+：$0.63920 100+：$0.42088 500+：$0.32702 1000+：$0.29679 2000+：$0.27135 5000+：$0.25704 |
|
Datasheet | SC-74A, SOT-753 | - | Tape & Reel (TR) | Active | 20V | 12V | - | 30 A | 18 A | 10 mA | 1 | 6pF | - | - | Surface Mount | SOT-23-5 |
|
TB3500H-13-FTHYRISTOR 320V 400A DO-214AA |
30,000 |
1+：$1.34400 10+：$0.85040 25+：$0.71776 50+：$0.63504 100+：$0.56528 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | 400V | 320V | 3.5 V | 400 A | 100 A | 150 mA | 1 | 80pF | - | - | Surface Mount | SMB |
|
|
TISP4015H1BJR-STHYRISTOR 8V 400A DO-214AA |
54,685 |
1+：$1.05600 10+：$0.66160 100+：$0.43632 500+：$0.33950 1000+：$0.30833 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | 15V | 8V | 3 V | 400 A | 100 A | 50 mA | 1 | 85pF | - | - | Surface Mount | DO-214AA (SMB) |
