Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

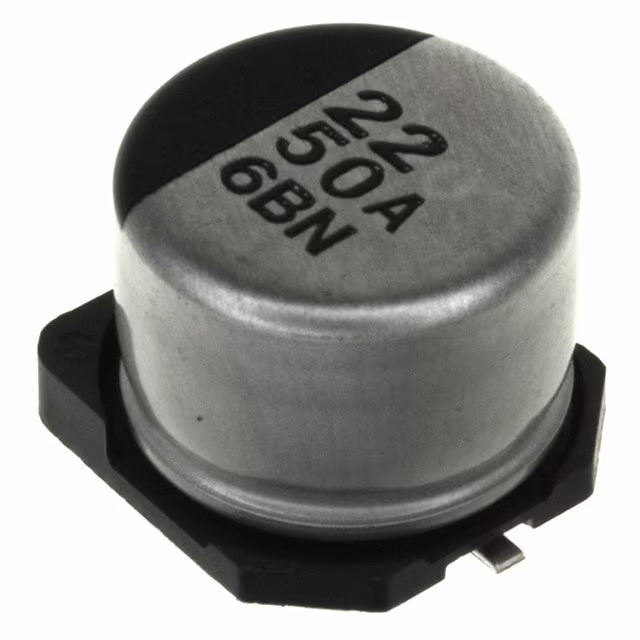

ECE-V1HA220PCAP ALUM 22UF 20% 50V SMD |
1,084 | - |
|
Datasheet | VS | Tape & Reel (TR) | Obsolete | 22 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 120 mA @ 120 Hz | - | - | - | 0.315" Dia (8.00mm) | 0.244" (6.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
EEV-HA0J220RCAP ALUM 22UF 20% 6.3V SMD |
1,444 | - |
|
Datasheet | HA | Tape & Reel (TR) | Obsolete | 22 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 29 mA @ 120 Hz | - | - | - | 0.157" Dia (4.00mm) | 0.213" (5.40mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
EEV-HA1H3R3RCAP ALUM 3.3UF 20% 50V SMD |
2,968 | - |
|
Datasheet | HA | Tape & Reel (TR) | Obsolete | 3.3 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 16 mA @ 120 Hz | - | - | - | 0.157" Dia (4.00mm) | 0.213" (5.40mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
ECE-V1HA330UPCAP ALUM 33UF 20% 50V SMD |
1,511 | - |
|
Datasheet | VS | Tape & Reel (TR) | Obsolete | 33 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 65 mA @ 120 Hz | - | - | - | 0.315" Dia (8.00mm) | 0.244" (6.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|

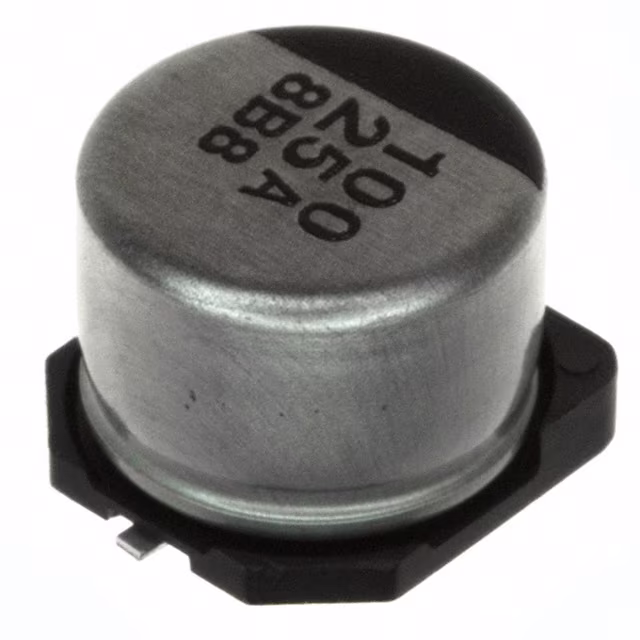

ECE-V1EA101UPCAP ALUM 100UF 20% 25V SMD |
1,650 | - |
|
Datasheet | VS | Tape & Reel (TR) | Obsolete | 100 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 91 mA @ 120 Hz | - | - | - | 0.315" Dia (8.00mm) | 0.244" (6.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|

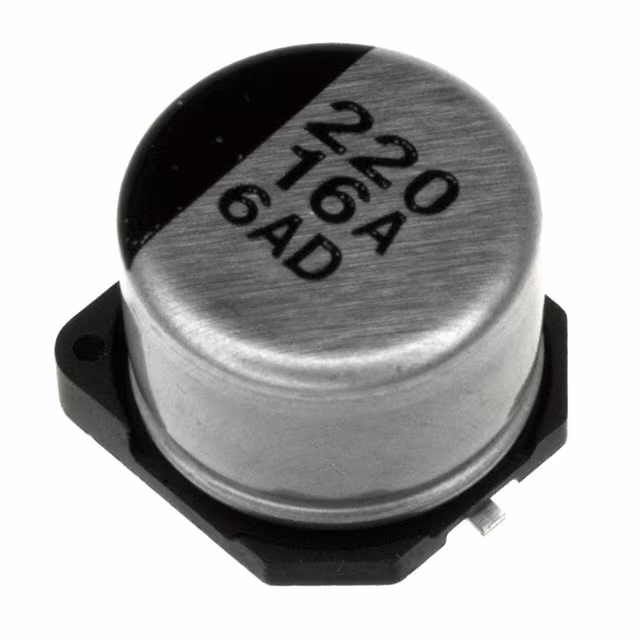

ECE-V1CA221UPCAP ALUM 220UF 20% 16V SMD |
2,717 | - |
|
Datasheet | VS | Tape & Reel (TR) | Obsolete | 220 µF | ±20% | 16 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 200 mA @ 120 Hz | - | - | - | 0.315" Dia (8.00mm) | 0.244" (6.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
ECE-V1JA220UPCAP ALUM 22UF 20% 63V SMD |
3,636 | - |
|
Datasheet | VS | Tape & Reel (TR) | Obsolete | 22 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 35 mA @ 120 Hz | - | - | - | 0.315" Dia (8.00mm) | 0.244" (6.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
ECA-0JHG472BCAP ALUM 4700UF 20% 6.3V RADIAL |
4,501 | - |
|
Datasheet | NHG-A | Tape & Box (TB) | Active | 4700 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.09 A @ 120 Hz | 1.254 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
ECE-A1EN331UBCAP ALUM 330UF 20% 25V RADIAL TH |
2,819 | - |
|
Datasheet | SU | Tape & Box (TB) | Active | 330 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 350 mA @ 120 Hz | 595 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
EEU-FM0J392BCAP ALUM 3900UF 20% 6.3V RADIAL |
2,013 | - |
|
Datasheet | FM-A | Tape & Box (TB) | Active | 3900 µF | ±20% | 6.3 V | - | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.552 A @ 120 Hz | 3.19 A @ 100 kHz | 15 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole |
