Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EET-ED2E681EACAP ALUM 680UF 20% 250V SNAP TH |
1,649 | - |
|
Datasheet | TS-ED | Bulk | Obsolete | 680 µF | ±20% | 250 V | 219mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.42 A @ 120 Hz | 3.45 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
EET-ED2E821DACAP ALUM 820UF 20% 250V SNAP TH |
1,601 | - |
|
Datasheet | TS-ED | Bulk | Obsolete | 820 µF | ±20% | 250 V | 182mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.63 A @ 120 Hz | 3.76 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
EET-ED2E821EACAP ALUM 820UF 20% 250V SNAP TH |
2,062 | - |
|
Datasheet | TS-ED | Bulk | Obsolete | 820 µF | ±20% | 250 V | 182mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.63 A @ 120 Hz | 3.76 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
EET-ED2G101BACAP ALUM 100UF 20% 400V SNAP TH |
4,506 | - |
|
Datasheet | TS-ED | Bulk | Obsolete | 100 µF | ±20% | 400 V | 1.326Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 910 mA @ 120 Hz | 1.3 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
EET-ED2G101CACAP ALUM 100UF 20% 400V SNAP TH |
3,345 | - |
|
Datasheet | TS-ED | Bulk | Obsolete | 100 µF | ±20% | 400 V | 1.326Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 910 mA @ 120 Hz | 1.3 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
EET-ED2G151BACAP ALUM 150UF 20% 400V SNAP TH |
2,209 | - |
|
Datasheet | TS-ED | Bulk | Obsolete | 150 µF | ±20% | 400 V | 884mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.07 A @ 120 Hz | 1.53 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|

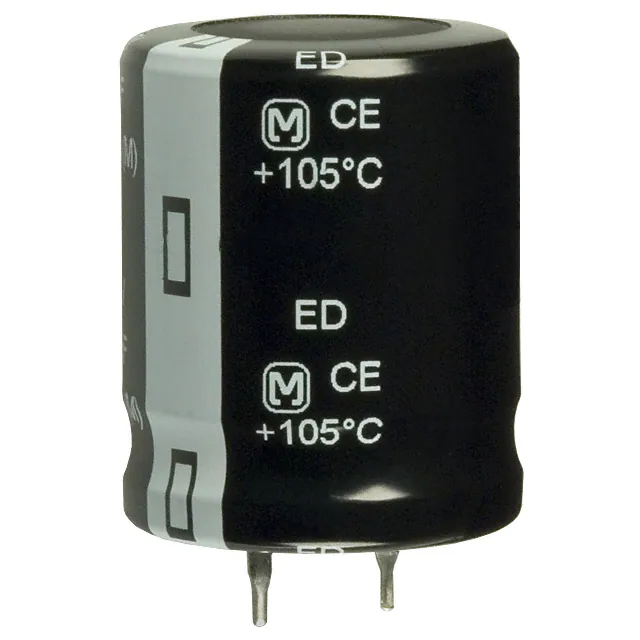

EET-ED2G151CACAP ALUM 150UF 20% 400V SNAP TH |
4,007 | - |
|
Datasheet | TS-ED | Bulk | Obsolete | 150 µF | ±20% | 400 V | 884mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.07 A @ 120 Hz | 1.53 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
EET-ED2G151DACAP ALUM 150UF 20% 400V SNAP TH |
4,412 | - |
|
Datasheet | TS-ED | Bulk | Obsolete | 150 µF | ±20% | 400 V | 884mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.07 A @ 120 Hz | 1.53 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
EET-ED2G181BACAP ALUM 180UF 20% 400V SNAP TH |
1,039 | - |
|
Datasheet | TS-ED | Bulk | Obsolete | 180 µF | ±20% | 400 V | 737mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.12 A @ 120 Hz | 1.6 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
EET-ED2G181CACAP ALUM 180UF 20% 400V SNAP TH |
2,958 | - |
|
Datasheet | TS-ED | Bulk | Obsolete | 180 µF | ±20% | 400 V | 737mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.12 A @ 120 Hz | 1.6 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.378" (35.00mm) | - | Through Hole |
