Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

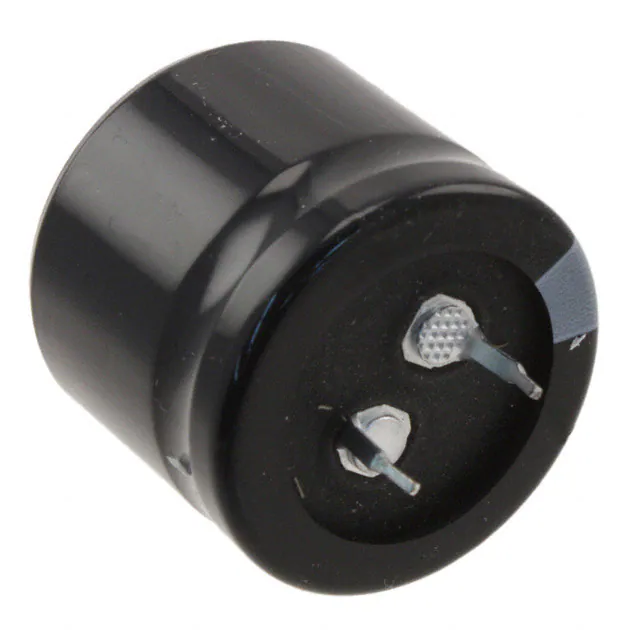

EET-ED2G181DACAP ALUM 180UF 20% 400V SNAP TH |
2,675 | - |
|
Datasheet | TS-ED | Bulk | Obsolete | 180 µF | ±20% | 400 V | 737mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.12 A @ 120 Hz | 1.6 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
EET-ED2G221BACAP ALUM 220UF 20% 400V SNAP TH |
3,502 | - |
|
Datasheet | TS-ED | Bulk | Obsolete | 220 µF | ±20% | 400 V | 603mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.42 A @ 120 Hz | 2.03 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|

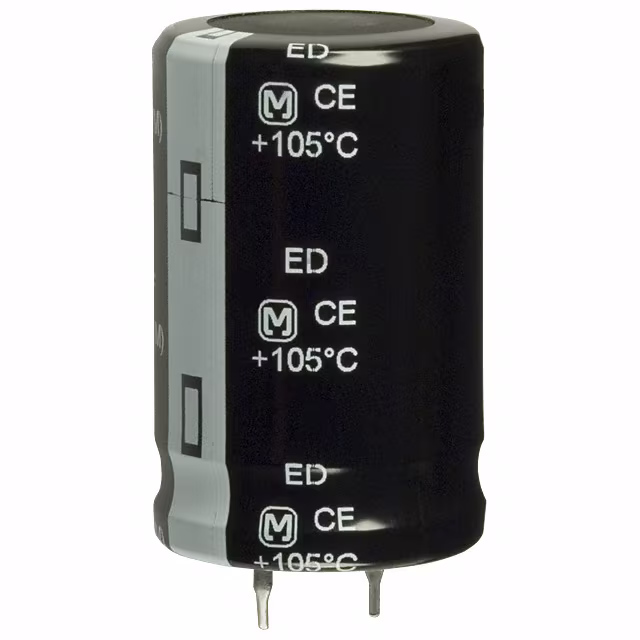

EET-ED2G221CACAP ALUM 220UF 20% 400V SNAP TH |
4,484 | - |
|
Datasheet | TS-ED | Bulk | Obsolete | 220 µF | ±20% | 400 V | 603mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.42 A @ 120 Hz | 2.03 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
|
EET-ED2G221DACAP ALUM 220UF 20% 400V SNAP TH |
2,917 | - |
|
Datasheet | TS-ED | Bulk | Obsolete | 220 µF | ±20% | 400 V | 603mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.42 A @ 120 Hz | 2.03 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|

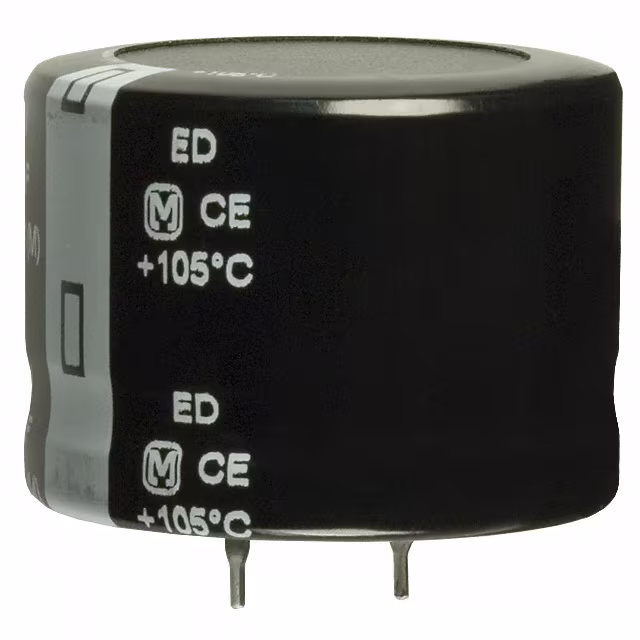

EET-ED2G221EACAP ALUM 220UF 20% 400V SNAP TH |
4,132 | - |
|
Datasheet | TS-ED | Bulk | Obsolete | 220 µF | ±20% | 400 V | 603mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.42 A @ 120 Hz | 2.03 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|

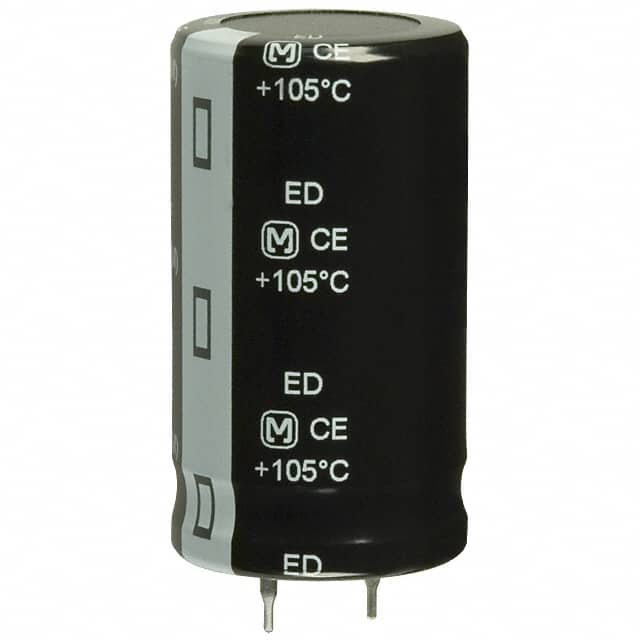

EET-ED2G271CACAP ALUM 270UF 20% 400V SNAP TH |
2,908 | - |
|
Datasheet | TS-ED | Bulk | Obsolete | 270 µF | ±20% | 400 V | 491mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.56 A @ 120 Hz | 2.23 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|

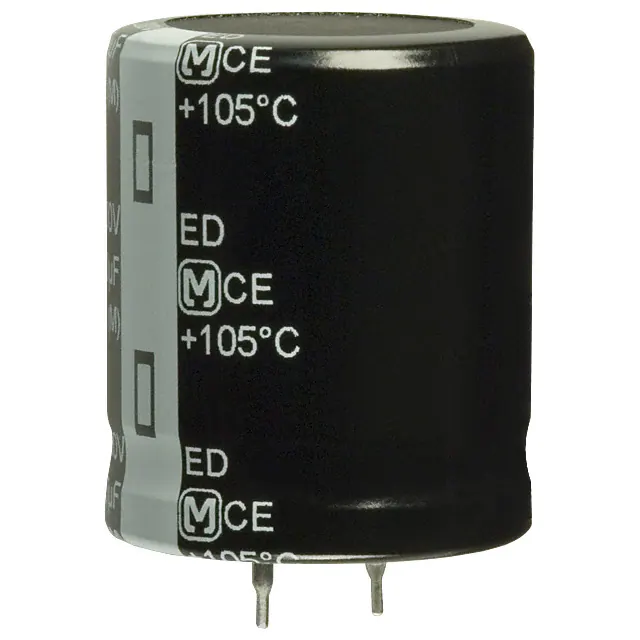

EET-ED2G271DACAP ALUM 270UF 20% 400V SNAP TH |
1,145 | - |
|
Datasheet | TS-ED | Bulk | Obsolete | 270 µF | ±20% | 400 V | 491mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.56 A @ 120 Hz | 2.23 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
EET-ED2G271EACAP ALUM 270UF 20% 400V SNAP TH |
4,000 | - |
|
Datasheet | TS-ED | Bulk | Obsolete | 270 µF | ±20% | 400 V | 491mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.56 A @ 120 Hz | 2.23 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|

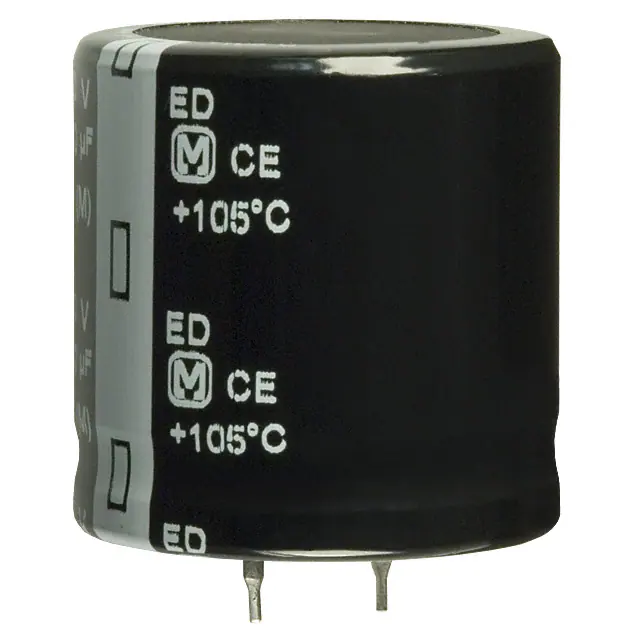

EET-ED2G331DACAP ALUM 330UF 20% 400V SNAP TH |
3,566 | - |
|
Datasheet | TS-ED | Bulk | Obsolete | 330 µF | ±20% | 400 V | 402mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.71 A @ 120 Hz | 2.44 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
|
EET-ED2G331EACAP ALUM 330UF 20% 400V SNAP TH |
4,833 | - |
|
Datasheet | TS-ED | Bulk | Obsolete | 330 µF | ±20% | 400 V | 402mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.71 A @ 120 Hz | 2.44 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.181" (30.00mm) | - | Through Hole |
