Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EET-ED2W221EACAP ALUM 220UF 20% 450V SNAP TH |
2,422 | - |
|
Datasheet | TS-ED | Bulk | Obsolete | 220 µF | ±20% | 450 V | 603mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.42 A @ 120 Hz | 2.03 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
EET-ED2W271DACAP ALUM 270UF 20% 450V SNAP TH |
2,727 | - |
|
Datasheet | TS-ED | Bulk | Obsolete | 270 µF | ±20% | 450 V | 491mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.72 A @ 120 Hz | 2.45 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
EET-ED2W271EACAP ALUM 270UF 20% 450V SNAP TH |
1,367 | - |
|
Datasheet | TS-ED | Bulk | Obsolete | 270 µF | ±20% | 450 V | 491mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.72 A @ 120 Hz | 2.45 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
EET-ED2W331DACAP ALUM 330UF 20% 450V SNAP TH |
1,656 | - |
|
Datasheet | TS-ED | Bulk | Obsolete | 330 µF | ±20% | 450 V | 402mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.85 A @ 120 Hz | 2.64 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|

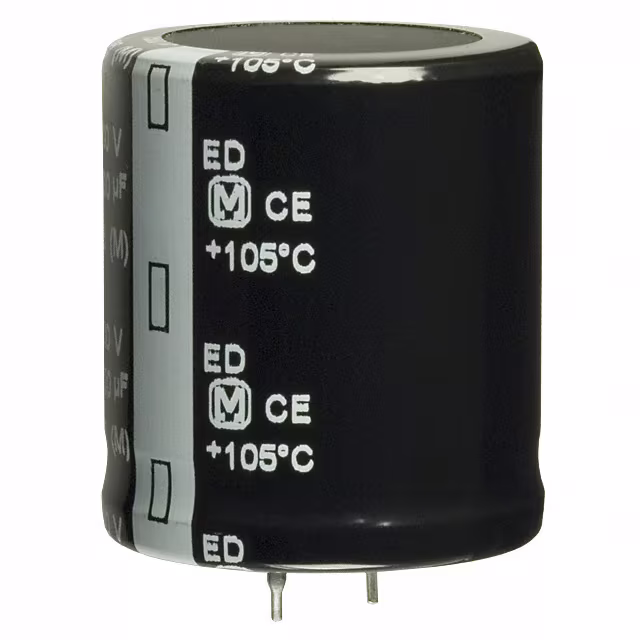

EET-ED2W331EACAP ALUM 330UF 20% 450V SNAP TH |
3,181 | - |
|
Datasheet | TS-ED | Bulk | Obsolete | 330 µF | ±20% | 450 V | 402mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.85 A @ 120 Hz | 2.64 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
|
EET-ED2W391EACAP ALUM 390UF 20% 450V SNAP TH |
1,937 | - |
|
Datasheet | TS-ED | Bulk | Obsolete | 390 µF | ±20% | 450 V | 340mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.97 A @ 120 Hz | 2.82 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
EET-ED2W560BACAP ALUM 56UF 20% 450V SNAP TH |
3,141 | - |
|
Datasheet | TS-ED | Bulk | Obsolete | 56 µF | ±20% | 450 V | 2.368Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 670 mA @ 120 Hz | 950 mA @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
EET-ED2W561EACAP ALUM 560UF 20% 450V SNAP TH |
4,895 | - |
|
Datasheet | TS-ED | Bulk | Obsolete | 560 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.480" (63.00mm) | - | Through Hole | |
|
EET-ED2W680BACAP ALUM 68UF 20% 450V SNAP TH |
2,053 | - |
|
Datasheet | TS-ED | Bulk | Obsolete | 68 µF | ±20% | 450 V | 1.95Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 760 mA @ 120 Hz | 1.08 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
EET-ED2W680CACAP ALUM 68UF 20% 450V SNAP TH |
2,582 | - |
|
Datasheet | TS-ED | Bulk | Obsolete | 68 µF | ±20% | 450 V | 1.95Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 760 mA @ 120 Hz | 1.08 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 0.984" (25.00mm) | - | Through Hole |
