Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EET-HC2S181BACAP ALUM 180UF 20% 420V SNAP TH |
2,706 | - |
|
Datasheet | TS-HC | Bulk | Obsolete | 180 µF | ±20% | 420 V | 1.103Ohm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 910 mA @ 120 Hz | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
EET-HC2S181CACAP ALUM 180UF 20% 420V SNAP TH |
4,341 | - |
|
Datasheet | TS-HC | Bulk | Obsolete | 180 µF | ±20% | 420 V | 1.103Ohm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 910 mA @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
EET-HC2S221BACAP ALUM 220UF 20% 420V SNAP TH |
4,589 | - |
|
Datasheet | TS-HC | Bulk | Obsolete | 220 µF | ±20% | 420 V | 829mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.05 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
EET-HC2S221CACAP ALUM 220UF 20% 420V SNAP TH |
4,921 | - |
|
Datasheet | TS-HC | Bulk | Obsolete | 220 µF | ±20% | 420 V | 829mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.05 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

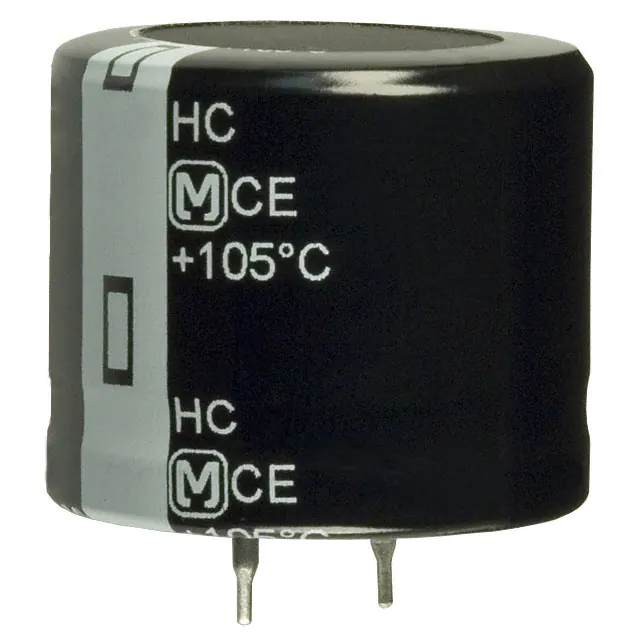

EET-HC2S221DACAP ALUM 220UF 20% 420V SNAP TH |
1,839 | - |
|
Datasheet | TS-HC | Bulk | Obsolete | 220 µF | ±20% | 420 V | 829mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.05 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
EET-HC2S271BACAP ALUM 270UF 20% 420V SNAP TH |
1,433 | - |
|
Datasheet | TS-HC | Bulk | Obsolete | 270 µF | ±20% | 420 V | 675mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
EET-HC2S271CACAP ALUM 270UF 20% 420V SNAP TH |
4,650 | - |
|
Datasheet | TS-HC | Bulk | Obsolete | 270 µF | ±20% | 420 V | 675mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

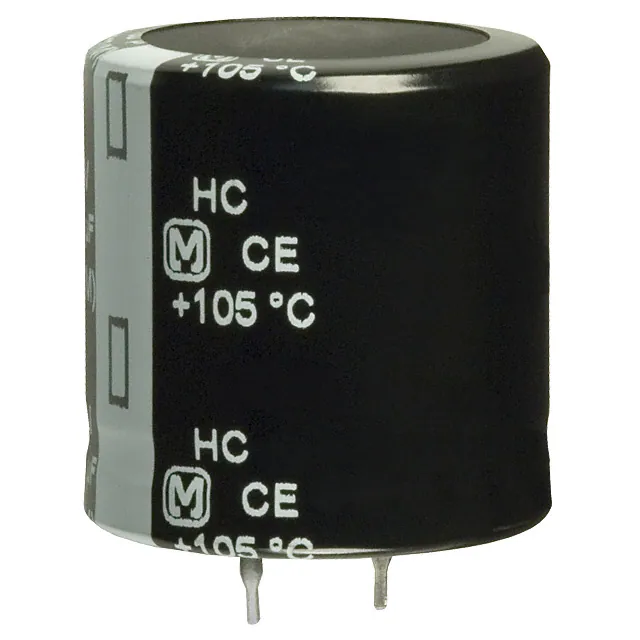

EET-HC2S271DACAP ALUM 270UF 20% 420V SNAP TH |
1,949 | - |
|
Datasheet | TS-HC | Bulk | Obsolete | 270 µF | ±20% | 420 V | 675mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
EET-HC2S271EACAP ALUM 270UF 20% 420V SNAP TH |
2,797 | - |
|
Datasheet | TS-HC | Bulk | Obsolete | 270 µF | ±20% | 420 V | 675mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
EET-HC2S331CACAP ALUM 330UF 20% 420V SNAP TH |
3,140 | - |
|
Datasheet | TS-HC | Bulk | Obsolete | 330 µF | ±20% | 420 V | 553mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.42 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole |
