Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EET-UQ2S271BFCAP ALUM 270UF 20% 420V SNAP TH |
2,638 | - |
|
Datasheet | TS-UQ | Bulk | Obsolete | 270 µF | ±20% | 420 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.94 A @ 120 Hz | - | - | - | 0.866" Dia (22.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
EET-UQ2S271CACAP ALUM 270UF 20% 420V SNAP TH |
4,969 | - |
|
Datasheet | TS-UQ | Bulk | Obsolete | 270 µF | ±20% | 420 V | 737mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.73 A @ 120 Hz | 2.422 A @ 10 kHz | - | - | 0.984" Dia (25.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
|
EET-UQ2S331CACAP ALUM 330UF 20% 420V SNAP TH |
3,932 | - |
|
Datasheet | TS-UQ | Bulk | Obsolete | 330 µF | ±20% | 420 V | 603mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.95 A @ 120 Hz | 2.73 A @ 10 kHz | - | - | 0.984" Dia (25.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|

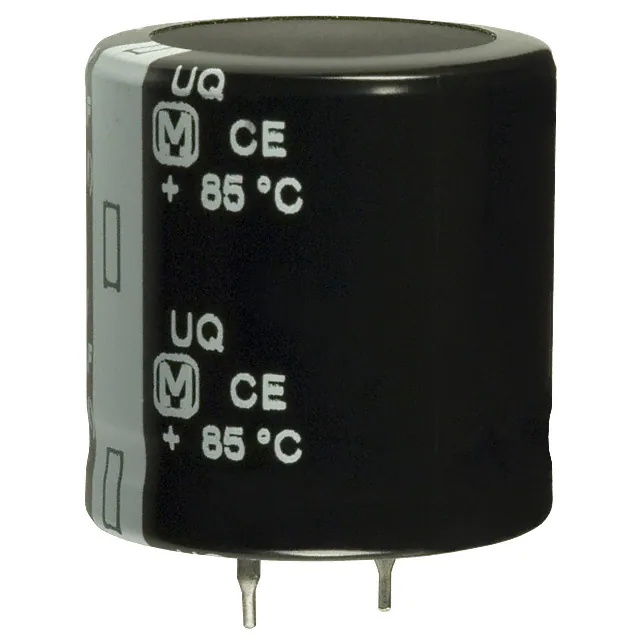

EET-UQ2S331DFCAP ALUM 330UF 20% 420V SNAP TH |
3,752 | - |
|
Datasheet | TS-UQ | Bulk | Obsolete | 330 µF | ±20% | 420 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.95 A @ 120 Hz | - | - | - | 1.181" Dia (30.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
|
EET-UQ2S391CACAP ALUM 390UF 20% 420V SNAP TH |
1,964 | - |
|
Datasheet | TS-UQ | Bulk | Obsolete | 390 µF | ±20% | 420 V | 510mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.17 A @ 120 Hz | 3.038 A @ 10 kHz | - | - | 0.984" Dia (25.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
EET-UQ2S391DACAP ALUM 390UF 20% 420V SNAP TH |
1,564 | - |
|
Datasheet | TS-UQ | Bulk | Obsolete | 390 µF | ±20% | 420 V | 510mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.17 A @ 120 Hz | 3.038 A @ 10 kHz | - | - | 1.181" Dia (30.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
EET-UQ2S391EACAP ALUM 390UF 20% 420V SNAP TH |
4,931 | - |
|
Datasheet | TS-UQ | Bulk | Obsolete | 390 µF | ±20% | 420 V | 510mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.17 A @ 120 Hz | 3.038 A @ 10 kHz | - | - | 1.378" Dia (35.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
EET-UQ2S471DACAP ALUM 470UF 20% 420V SNAP TH |
2,960 | - |
|
Datasheet | TS-UQ | Bulk | Obsolete | 470 µF | ±20% | 420 V | 423mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.44 A @ 120 Hz | 3.416 A @ 10 kHz | - | - | 1.181" Dia (30.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
|
EET-UQ2S471EACAP ALUM 470UF 20% 420V SNAP TH |
3,011 | - |
|
Datasheet | TS-UQ | Bulk | Obsolete | 470 µF | ±20% | 420 V | 423mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.44 A @ 120 Hz | 3.416 A @ 10 kHz | - | - | 1.378" Dia (35.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
|
EET-UQ2S561EACAP ALUM 560UF 20% 420V SNAP TH |
1,174 | - |
|
Datasheet | TS-UQ | Bulk | Obsolete | 560 µF | ±20% | 420 V | 355mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.74 A @ 120 Hz | 3.836 A @ 10 kHz | - | - | 1.378" Dia (35.00mm) | 1.575" (40.00mm) | - | Through Hole |
