Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEU-EB1J1R0SCAP ALUM 1UF 20% 63V RADIAL TH |
3,001 | - |
|
Datasheet | EB-A | Bulk | Obsolete | 1 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 9 mA @ 120 Hz | 14.85 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.472" (12.00mm) | - | Through Hole | |
|
|
EEU-EB1J2R2SCAP ALUM 2.2UF 20% 63V RADIAL TH |
4,257 | - |
|
Datasheet | EB-A | Bulk | Obsolete | 2.2 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 16.5 mA @ 120 Hz | 27.22 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.472" (12.00mm) | - | Through Hole | |
|
|
EEU-EB1JR47SCAP ALUM 0.47UF 20% 63V RADIAL |
3,284 | - |
|
Datasheet | EB-A | Bulk | Obsolete | 0.47 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.5 mA @ 120 Hz | 7.425 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.472" (12.00mm) | - | Through Hole | |
|
EEU-ED2V101CAP ALUM 100UF 20% 350V RADIAL |
3,748 | - |
|
Datasheet | ED-A | Bulk | Obsolete | 100 µF | ±20% | 350 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 540 mA @ 120 Hz | 1.2 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.240" (31.50mm) | - | Through Hole | |
|

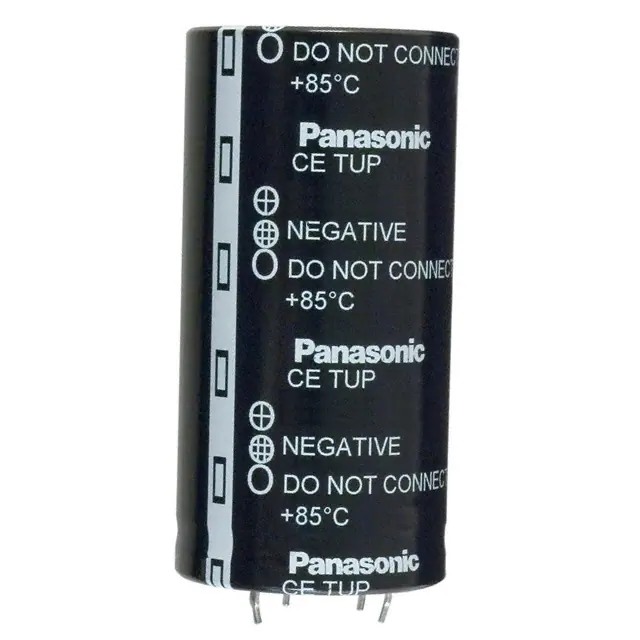

ECE-T2WP561FACAP ALUM 560UF 20% 450V SNAP TH |
1,155 | - |
|
Datasheet | T-UP | Bulk | Obsolete | 560 µF | ±20% | 450 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.886" (22.50mm) | - | - | - | Through Hole | |
|
EET-HC2S471EJCAP ALUM 470UF 20% 420V SNAP TH |
4,147 | - |
|
Datasheet | TS-HC | Bulk | Obsolete | 470 µF | ±20% | 420 V | 388mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.71 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
EEE-1HAR22ARCAP ALUM 0.22UF 20% 50V SMD |
1,991 | - |
|
Datasheet | S | Tape & Reel (TR) | Obsolete | 0.22 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 2 mA @ 120 Hz | - | - | - | 0.157" Dia (4.00mm) | 0.213" (5.40mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
EEE-1HAR33ARCAP ALUM 0.33UF 20% 50V SMD |
4,094 | - |
|
Datasheet | S | Tape & Reel (TR) | Obsolete | 0.33 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 3 mA @ 120 Hz | - | - | - | 0.157" Dia (4.00mm) | 0.213" (5.40mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
EEE-1HAR47ARCAP ALUM 0.47UF 20% 50V SMD |
1,497 | - |
|
Datasheet | S | Tape & Reel (TR) | Obsolete | 0.47 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 5 mA @ 120 Hz | - | - | - | 0.157" Dia (4.00mm) | 0.213" (5.40mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
EEE-HA1HR22ARCAP ALUM 0.22UF 20% 50V SMD |
2,205 | - |
|
Datasheet | HA | Tape & Reel (TR) | Obsolete | 0.22 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2 mA @ 120 Hz | 2.8 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.213" (5.40mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount |
