Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

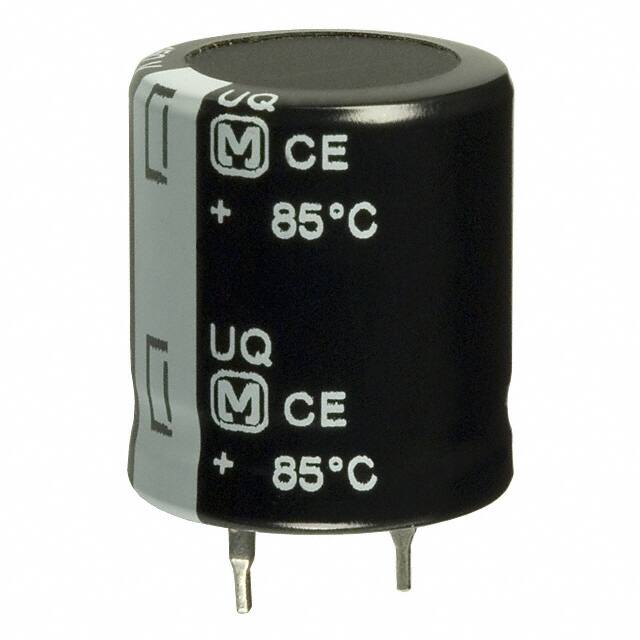

EET-UQ2E152KACAP ALUM 1500UF 20% 250V SNAP TH |
2,993 | - |
|
Datasheet | TS-UQ | Bulk | Obsolete | 1500 µF | ±20% | 250 V | 133mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.04 A @ 120 Hz | 5.656 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
EET-UQ2E152LACAP ALUM 1500UF 20% 250V SNAP TH |
1,529 | - |
|
Datasheet | TS-UQ | Bulk | Obsolete | 1500 µF | ±20% | 250 V | 133mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.04 A @ 120 Hz | 5.656 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
|
EET-UQ2E182LACAP ALUM 1800UF 20% 250V SNAP TH |
1,666 | - |
|
Datasheet | TS-UQ | Bulk | Obsolete | 1800 µF | ±20% | 250 V | 111mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.55 A @ 120 Hz | 6.37 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
|
EET-UQ2E222LACAP ALUM 2200UF 20% 250V SNAP TH |
2,742 | - |
|
Datasheet | TS-UQ | Bulk | Obsolete | 2200 µF | ±20% | 250 V | 98mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.75 A @ 120 Hz | 6.65 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
EET-UQ2V151HACAP ALUM 150UF 20% 350V SNAP TH |
3,715 | - |
|
Datasheet | TS-UQ | Bulk | Obsolete | 150 µF | ±20% | 350 V | 1.326Ohm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.12 A @ 120 Hz | 1.568 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
|
EET-UQ2V181HACAP ALUM 180UF 20% 350V SNAP TH |
1,348 | - |
|
Datasheet | TS-UQ | Bulk | Obsolete | 180 µF | ±20% | 350 V | 1.105Ohm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.22 A @ 120 Hz | 1.708 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
|
EET-UQ2V221HACAP ALUM 220UF 20% 350V SNAP TH |
2,597 | - |
|
Datasheet | TS-UQ | Bulk | Obsolete | 220 µF | ±20% | 350 V | 904mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.44 A @ 120 Hz | 2.016 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
|
EET-UQ2V271HACAP ALUM 270UF 20% 350V SNAP TH |
3,942 | - |
|
Datasheet | TS-UQ | Bulk | Obsolete | 270 µF | ±20% | 350 V | 737mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.66 A @ 120 Hz | 2.324 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
EET-UQ2V271JACAP ALUM 270UF 20% 350V SNAP TH |
2,921 | - |
|
Datasheet | TS-UQ | Bulk | Obsolete | 270 µF | ±20% | 350 V | 737mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.66 A @ 120 Hz | 2.324 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
|
EET-UQ2V331HACAP ALUM 330UF 20% 350V SNAP TH |
1,776 | - |
|
Datasheet | TS-UQ | Bulk | Obsolete | 330 µF | ±20% | 350 V | 603mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.88 A @ 120 Hz | 2.632 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.772" (45.00mm) | - | Through Hole |
