Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EET-UQ2V331JACAP ALUM 330UF 20% 350V SNAP TH |
3,120 | - |
|
Datasheet | TS-UQ | Bulk | Obsolete | 330 µF | ±20% | 350 V | 603mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.88 A @ 120 Hz | 2.632 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
EET-UQ2V391HACAP ALUM 390UF 20% 350V SNAP TH |
1,272 | - |
|
Datasheet | TS-UQ | Bulk | Obsolete | 390 µF | ±20% | 350 V | 510mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.06 A @ 120 Hz | 2.884 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
|
EET-UQ2V391JACAP ALUM 390UF 20% 350V SNAP TH |
3,999 | - |
|
Datasheet | TS-UQ | Bulk | Obsolete | 390 µF | ±20% | 350 V | 510mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.06 A @ 120 Hz | 2.884 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
EET-UQ2V391KACAP ALUM 390UF 20% 350V SNAP TH |
3,178 | - |
|
Datasheet | TS-UQ | Bulk | Obsolete | 390 µF | ±20% | 350 V | 510mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.06 A @ 120 Hz | 2.884 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
EET-UQ2V391LACAP ALUM 390UF 20% 350V SNAP TH |
2,896 | - |
|
Datasheet | TS-UQ | Bulk | Obsolete | 390 µF | ±20% | 350 V | 510mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.06 A @ 120 Hz | 2.884 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
|
EET-UQ2V471JACAP ALUM 470UF 20% 350V SNAP TH |
3,948 | - |
|
Datasheet | TS-UQ | Bulk | Obsolete | 470 µF | ±20% | 350 V | 423mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.4 A @ 120 Hz | 3.36 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|

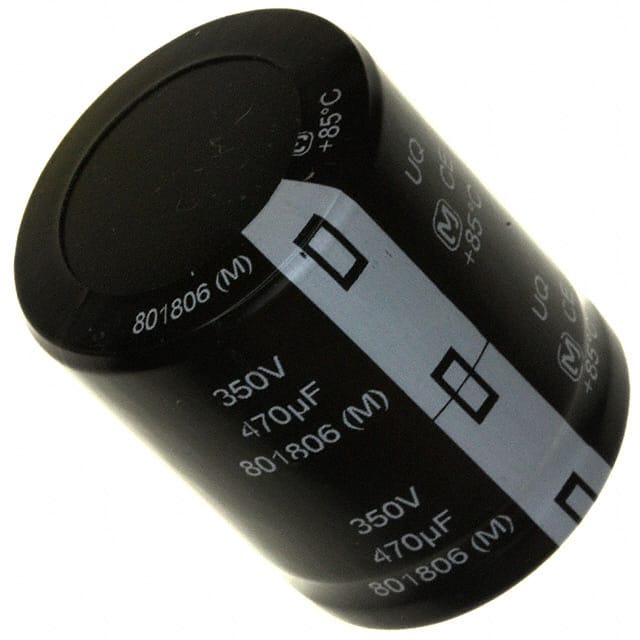

EET-UQ2V471KACAP ALUM 470UF 20% 350V SNAP TH |
2,051 | - |
|
Datasheet | TS-UQ | Bulk | Obsolete | 470 µF | ±20% | 350 V | 423mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.4 A @ 120 Hz | 3.36 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
|
EET-UQ2V471LACAP ALUM 470UF 20% 350V SNAP TH |
1,412 | - |
|
Datasheet | TS-UQ | Bulk | Obsolete | 470 µF | ±20% | 350 V | 423mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.4 A @ 120 Hz | 3.36 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
|
EET-UQ2V561JACAP ALUM 560UF 20% 350V SNAP TH |
3,909 | - |
|
Datasheet | TS-UQ | Bulk | Obsolete | 560 µF | ±20% | 350 V | 355mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.6 A @ 120 Hz | 3.64 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
EET-UQ2V561KACAP ALUM 560UF 20% 350V SNAP TH |
2,309 | - |
|
Datasheet | TS-UQ | Bulk | Obsolete | 560 µF | ±20% | 350 V | 355mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.6 A @ 120 Hz | 3.64 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.575" (40.00mm) | - | Through Hole |
