Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EET-UQ2G331LACAP ALUM 330UF 20% 400V SNAP TH |
4,898 | - |
|
Datasheet | TS-UQ | Bulk | Obsolete | 330 µF | ±20% | 400 V | 603mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.9 A @ 120 Hz | 2.66 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
EET-UQ2G391JACAP ALUM 390UF 20% 400V SNAP TH |
4,003 | - |
|
Datasheet | TS-UQ | Bulk | Obsolete | 390 µF | ±20% | 400 V | 510mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.13 A @ 120 Hz | 2.982 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
EET-UQ2G391KACAP ALUM 390UF 20% 400V SNAP TH |
4,321 | - |
|
Datasheet | TS-UQ | Bulk | Obsolete | 390 µF | ±20% | 400 V | 510mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.13 A @ 120 Hz | 2.982 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
|
EET-UQ2G391LACAP ALUM 390UF 20% 400V SNAP TH |
4,596 | - |
|
Datasheet | TS-UQ | Bulk | Obsolete | 390 µF | ±20% | 400 V | 510mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.13 A @ 120 Hz | 2.982 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
|
EET-UQ2G471JACAP ALUM 470UF 20% 400V SNAP TH |
1,017 | - |
|
Datasheet | TS-UQ | Bulk | Obsolete | 470 µF | ±20% | 400 V | 423mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.39 A @ 120 Hz | 3.346 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|

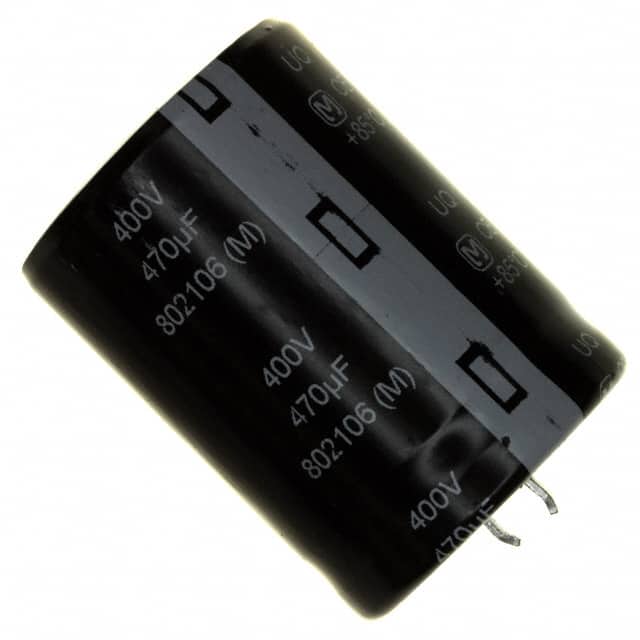

EET-UQ2G471KACAP ALUM 470UF 20% 400V SNAP TH |
2,297 | - |
|
Datasheet | TS-UQ | Bulk | Obsolete | 470 µF | ±20% | 400 V | 423mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.39 A @ 120 Hz | 3.346 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
|
EET-UQ2G471LACAP ALUM 470UF 20% 400V SNAP TH |
3,435 | - |
|
Datasheet | TS-UQ | Bulk | Obsolete | 470 µF | ±20% | 400 V | 423mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.39 A @ 120 Hz | 3.346 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
EET-UQ2G561KACAP ALUM 560UF 20% 400V SNAP TH |
1,284 | - |
|
Datasheet | TS-UQ | Bulk | Obsolete | 560 µF | ±20% | 400 V | 355mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.69 A @ 120 Hz | 3.766 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
|
EET-UQ2G561LACAP ALUM 560UF 20% 400V SNAP TH |
3,115 | - |
|
Datasheet | TS-UQ | Bulk | Obsolete | 560 µF | ±20% | 400 V | 355mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.69 A @ 120 Hz | 3.766 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
|
EET-UQ2G681LFCAP ALUM 680UF 20% 400V SNAP TH |
2,726 | - |
|
Datasheet | TS-UQ | Bulk | Obsolete | 680 µF | ±20% | 400 V | 293mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.96 A @ 120 Hz | 4.144 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.575" (40.00mm) | - | Through Hole |
