Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EET-UQ2S221JACAP ALUM 220UF 20% 420V SNAP TH |
1,379 | - |
|
Datasheet | TS-UQ | Bulk | Obsolete | 220 µF | ±20% | 420 V | 904mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.65 A @ 120 Hz | 2.31 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
EET-UQ2S221KACAP ALUM 220UF 20% 420V SNAP TH |
4,350 | - |
|
Datasheet | TS-UQ | Bulk | Obsolete | 220 µF | ±20% | 420 V | 904mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.65 A @ 120 Hz | 2.31 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
EET-UQ2S271HFCAP ALUM 270UF 20% 420V SNAP TH |
4,612 | - |
|
Datasheet | TS-UQ | Bulk | Obsolete | 270 µF | ±20% | 420 V | 737mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.94 A @ 120 Hz | 2.716 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
|
EET-UQ2S271JACAP ALUM 270UF 20% 420V SNAP TH |
1,011 | - |
|
Datasheet | TS-UQ | Bulk | Obsolete | 270 µF | ±20% | 420 V | 737mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.94 A @ 120 Hz | 2.716 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
EET-UQ2S271KACAP ALUM 270UF 20% 420V SNAP TH |
2,220 | - |
|
Datasheet | TS-UQ | Bulk | Obsolete | 270 µF | ±20% | 420 V | 737mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.94 A @ 120 Hz | 2.716 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
|
EET-UQ2S331JACAP ALUM 330UF 20% 420V SNAP TH |
3,067 | - |
|
Datasheet | TS-UQ | Bulk | Obsolete | 330 µF | ±20% | 420 V | 603mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.17 A @ 120 Hz | 3.038 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|

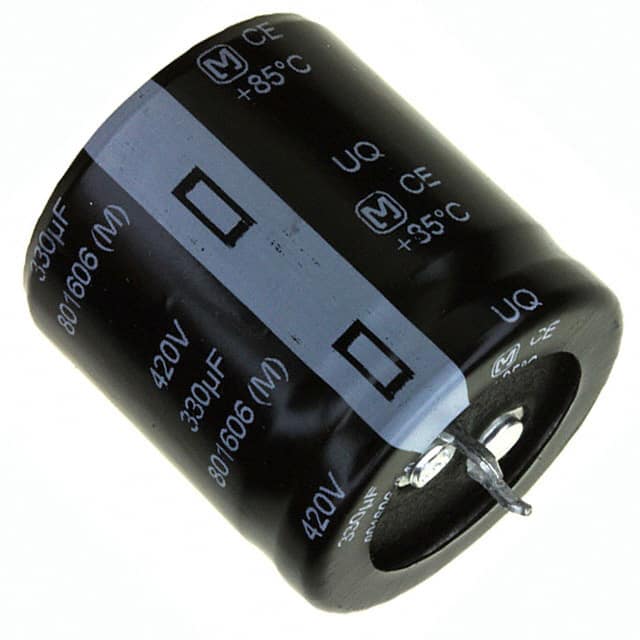

EET-UQ2S331KFCAP ALUM 330UF 20% 420V SNAP TH |
3,676 | - |
|
Datasheet | TS-UQ | Bulk | Obsolete | 330 µF | ±20% | 420 V | 603mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.17 A @ 120 Hz | 3.038 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
|
EET-UQ2S391JACAP ALUM 390UF 20% 420V SNAP TH |
4,180 | - |
|
Datasheet | TS-UQ | Bulk | Obsolete | 390 µF | ±20% | 420 V | 510mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.27 A @ 120 Hz | 3.178 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
EET-UQ2S391KACAP ALUM 390UF 20% 420V SNAP TH |
4,871 | - |
|
Datasheet | TS-UQ | Bulk | Obsolete | 390 µF | ±20% | 420 V | 510mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.27 A @ 120 Hz | 3.178 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
EET-UQ2S391LACAP ALUM 390UF 20% 420V SNAP TH |
2,817 | - |
|
Datasheet | TS-UQ | Bulk | Obsolete | 390 µF | ±20% | 420 V | 510mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.27 A @ 120 Hz | 3.178 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.181" (30.00mm) | - | Through Hole |
