Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EET-HC2C122HACAP ALUM 1200UF 20% 160V SNAP TH |
3,842 | - |
|
Datasheet | TS-HC | Bulk | Obsolete | 1200 µF | ±20% | 160 V | 166mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 3.22 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
EET-HC2C122JACAP ALUM 1200UF 20% 160V SNAP TH |
1,833 | - |
|
Datasheet | TS-HC | Bulk | Obsolete | 1200 µF | ±20% | 160 V | 166mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 3.22 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

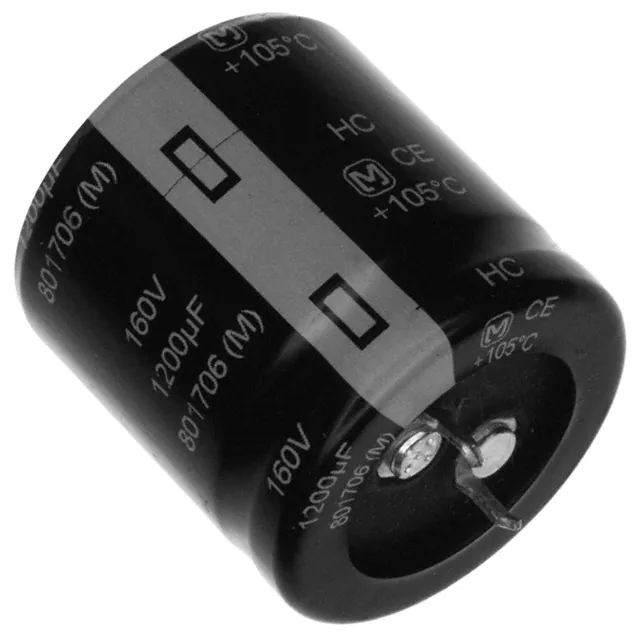

EET-HC2C122KACAP ALUM 1200UF 20% 160V SNAP TH |
4,640 | - |
|
Datasheet | TS-HC | Bulk | Obsolete | 1200 µF | ±20% | 160 V | 166mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 3.22 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
EET-HC2C122LACAP ALUM 1200UF 20% 160V SNAP TH |
4,700 | - |
|
Datasheet | TS-HC | Bulk | Obsolete | 1200 µF | ±20% | 160 V | 180mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 3.22 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
EET-HC2C152JACAP ALUM 1500UF 20% 160V SNAP TH |
4,583 | - |
|
Datasheet | TS-HC | Bulk | Obsolete | 1500 µF | ±20% | 160 V | 133mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.5 A @ 120 Hz | 3.5 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
EET-HC2C152KACAP ALUM 1500UF 20% 160V SNAP TH |
3,814 | - |
|
Datasheet | TS-HC | Bulk | Obsolete | 1500 µF | ±20% | 160 V | 133mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.5 A @ 120 Hz | 3.5 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
EET-HC2C152LACAP ALUM 1500UF 20% 160V SNAP TH |
4,319 | - |
|
Datasheet | TS-HC | Bulk | Obsolete | 1500 µF | ±20% | 160 V | 155mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.5 A @ 120 Hz | 3.5 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
EET-HC2C182JACAP ALUM 1800UF 20% 160V SNAP TH |
1,157 | - |
|
Datasheet | TS-HC | Bulk | Obsolete | 1800 µF | ±20% | 160 V | 111mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.7 A @ 120 Hz | 3.78 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
EET-HC2C182KACAP ALUM 1800UF 20% 160V SNAP TH |
3,828 | - |
|
Datasheet | TS-HC | Bulk | Obsolete | 1800 µF | ±20% | 160 V | 111mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.7 A @ 120 Hz | 3.78 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
EET-HC2C182LACAP ALUM 1800UF 20% 160V SNAP TH |
2,668 | - |
|
Datasheet | TS-HC | Bulk | Obsolete | 1800 µF | ±20% | 160 V | 120mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.7 A @ 120 Hz | 3.78 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole |
