Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

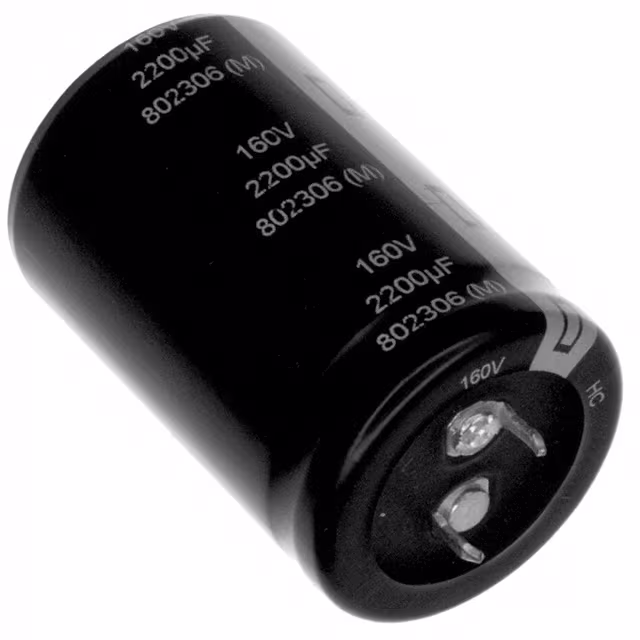

EET-HC2C222KACAP ALUM 2200UF 20% 160V SNAP TH |
4,856 | - |
|
Datasheet | TS-HC | Bulk | Obsolete | 2200 µF | ±20% | 160 V | 90mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.9 A @ 120 Hz | 4.06 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
EET-HC2C222LACAP ALUM 2200UF 20% 160V SNAP TH |
3,276 | - |
|
Datasheet | TS-HC | Bulk | Obsolete | 2200 µF | ±20% | 160 V | 98mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.9 A @ 120 Hz | 4.06 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

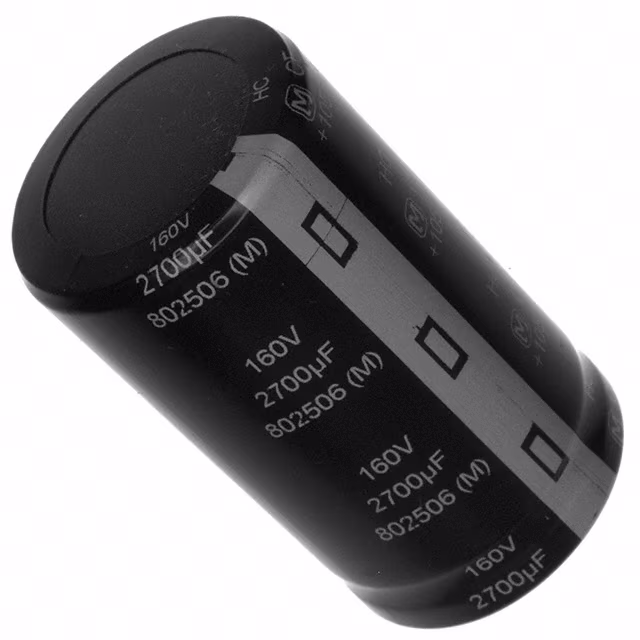

EET-HC2C272KACAP ALUM 2700UF 20% 160V SNAP TH |
4,814 | - |
|
Datasheet | TS-HC | Bulk | Obsolete | 2700 µF | ±20% | 160 V | 80mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.1 A @ 120 Hz | 4.34 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
EET-HC2C272LACAP ALUM 2700UF 20% 160V SNAP TH |
1,243 | - |
|
Datasheet | TS-HC | Bulk | Obsolete | 2700 µF | ±20% | 160 V | 86mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.1 A @ 120 Hz | 4.34 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
EET-HC2C332LACAP ALUM 3300UF 20% 160V SNAP TH |
2,771 | - |
|
Datasheet | TS-HC | Bulk | Obsolete | 3300 µF | ±20% | 160 V | 70mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.3 A @ 120 Hz | 4.62 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
EET-HC2D391HACAP ALUM 390UF 20% 200V SNAP TH |
1,127 | - |
|
Datasheet | TS-HC | Bulk | Obsolete | 390 µF | ±20% | 200 V | 510mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.31 A @ 120 Hz | 1.834 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
EET-HC2D471HACAP ALUM 470UF 20% 200V SNAP TH |
4,322 | - |
|
Datasheet | TS-HC | Bulk | Obsolete | 470 µF | ±20% | 200 V | 423mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.45 A @ 120 Hz | 2.03 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
EET-HC2D471JFCAP ALUM 470UF 20% 200V SNAP TH |
1,230 | - |
|
Datasheet | TS-HC | Bulk | Obsolete | 470 µF | ±20% | 200 V | 423mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.45 A @ 120 Hz | 2.03 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
EET-HC2D561HACAP ALUM 560UF 20% 200V SNAP TH |
4,184 | - |
|
Datasheet | TS-HC | Bulk | Obsolete | 560 µF | ±20% | 200 V | 355mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.67 A @ 120 Hz | 2.338 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
EET-HC2D681HACAP ALUM 680UF 20% 200V SNAP TH |
4,233 | - |
|
Datasheet | TS-HC | Bulk | Obsolete | 680 µF | ±20% | 200 V | 293mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.75 A @ 120 Hz | 2.45 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole |
