Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

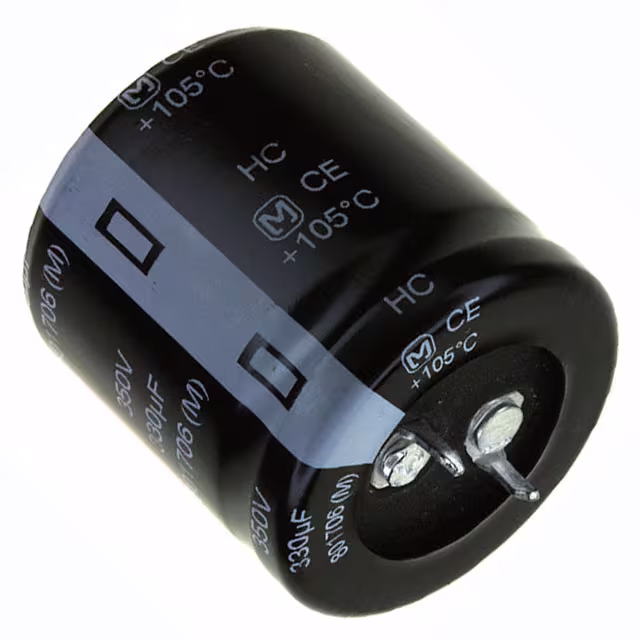

EET-HC2V331KACAP ALUM 330UF 20% 350V SNAP TH |
4,479 | - |
|
Datasheet | TS-HC | Bulk | Obsolete | 330 µF | ±20% | 350 V | 502mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.68 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
EET-HC2V391JACAP ALUM 390UF 20% 350V SNAP TH |
3,171 | - |
|
Datasheet | TS-HC | Bulk | Obsolete | 390 µF | ±20% | 350 V | 425mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.3 A @ 120 Hz | 1.82 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
EET-HC2V391KFCAP ALUM 390UF 20% 350V SNAP TH |
1,417 | - |
|
Datasheet | TS-HC | Bulk | Obsolete | 390 µF | ±20% | 350 V | 425mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.3 A @ 120 Hz | 1.82 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
EET-HC2V391KACAP ALUM 390UF 20% 350V SNAP TH |
4,573 | - |
|
Datasheet | TS-HC | Bulk | Obsolete | 390 µF | ±20% | 350 V | 425mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.3 A @ 120 Hz | 1.82 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
EET-HC2V471JACAP ALUM 470UF 20% 350V SNAP TH |
1,613 | - |
|
Datasheet | TS-HC | Bulk | Obsolete | 470 µF | ±20% | 350 V | 353mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 1.96 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
EET-HC2V471KFCAP ALUM 470UF 20% 350V SNAP TH |
1,347 | - |
|
Datasheet | TS-HC | Bulk | Obsolete | 470 µF | ±20% | 350 V | 353mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 1.96 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
EET-HC2V471LACAP ALUM 470UF 20% 350V SNAP TH |
4,898 | - |
|
Datasheet | TS-HC | Bulk | Obsolete | 470 µF | ±20% | 350 V | 353mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 1.96 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
EET-HC2V561KFCAP ALUM 560UF 20% 350V SNAP TH |
3,450 | - |
|
Datasheet | TS-HC | Bulk | Obsolete | 560 µF | ±20% | 350 V | 296mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 2.1 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
EET-HC2V561KACAP ALUM 560UF 20% 350V SNAP TH |
1,556 | - |
|
Datasheet | TS-HC | Bulk | Obsolete | 560 µF | ±20% | 350 V | 296mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 2.1 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
EET-HC2V561LACAP ALUM 560UF 20% 350V SNAP TH |
4,431 | - |
|
Datasheet | TS-HC | Bulk | Obsolete | 560 µF | ±20% | 350 V | 296mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 2.1 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole |
